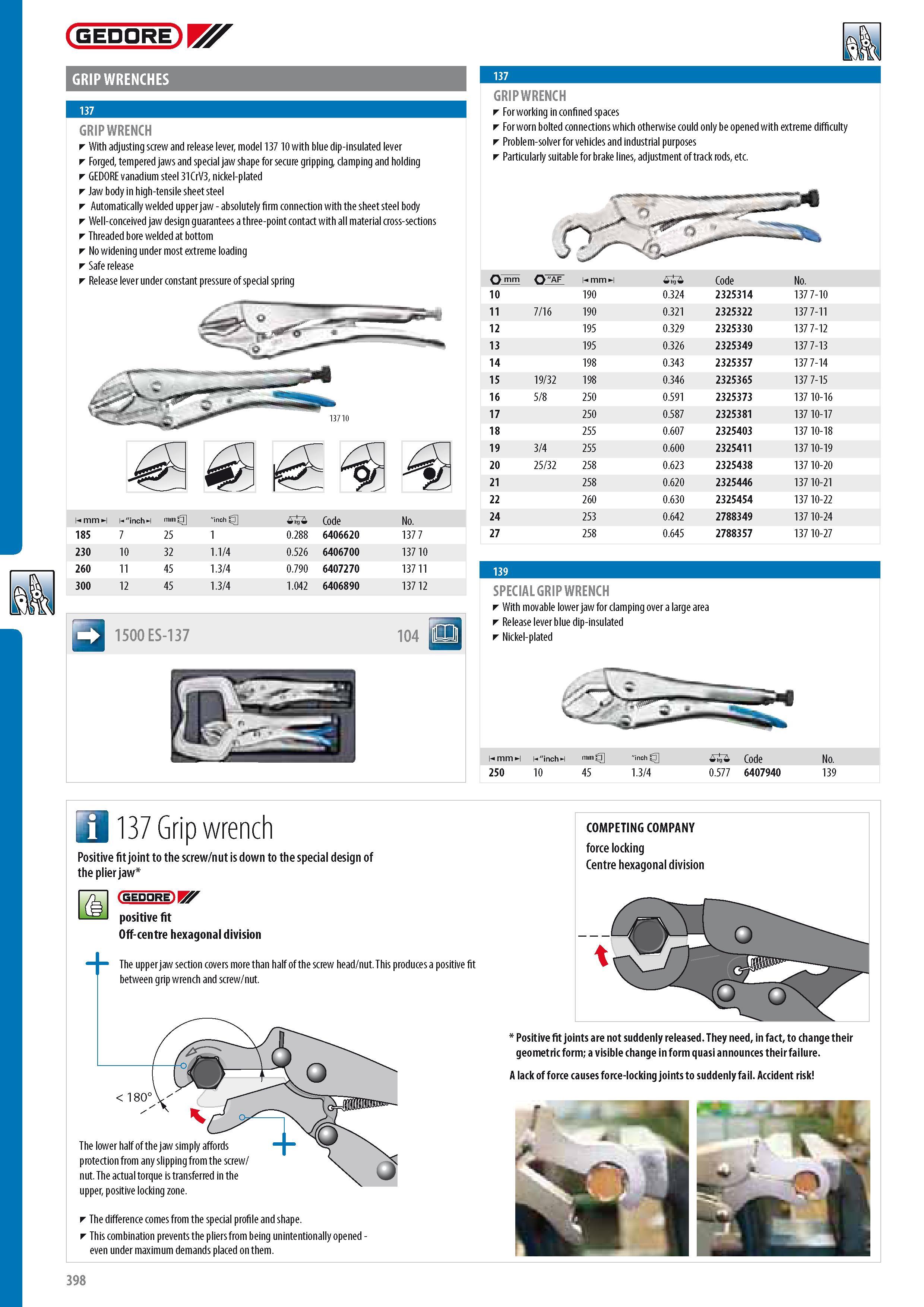

GEDORE GRIP WRENCHES GRIP WRENCH With adjusting screw and release lever model 137 10 with blue dip-insulated lever Forged tempered jaws and special jaw shape for secure gripping clamping and holding GEDORE vanadium steel 31CrV3 nickel-plated Jaw body in high-tensile sheet steel Automatically welded upper jaw - absolutely firm connection with the sheet steel body Well-conceived jaw design guarantees a three-point contact with all material cross-sections Threaded bore welded at bottom No widening under most extreme loading Safe release Release lever under constant pressure of special spring m mm ml "inchH O n -0 Code No. 185 7 25 1 0.288 6406620 137 7 230 10 32 1.1 4 0.526 6406700 137 10 260 11 45 1.3 4 0.790 6407270 137 11 300 12 45 1.3 4 1.042 6406890 137 12 GRIP WRENCH For working in confined spaces For worn bolted connections which otherwise could only be opened with extreme difficulty Problem-solver for vehicles and industrial purposes Particularly suitable for brake lines adjustment of track rods etc. mm Q"af m mm ml 0 Code No. 10 190 0.324 2325314 1377-10 11 7 16 190 0.321 2325322 1377-11 12 195 0.329 2325330 1377-12 13 195 0.326 2325349 1377-13 14 198 0.343 2325357 1377-14 15 19 32 198 0.346 2325365 137 7-15 16 5 8 250 0.591 2325373 137 10-16 17 250 0.587 2325381 137 10-17 18 255 0.607 2325403 137 10-18 19 3 4 255 0.600 2325411 13710-19 20 25 32 258 0.623 2325438 13710-20 21 258 0.620 2325446 13710-21 22 260 0.630 2325454 13710-22 24 253 0.642 2788349 13710-24 27 258 0.645 2788357 13710-27 SPECIAL GRIP WRENCH With movable lower jaw for clamping over a large area Release lever blue dip-insulated Nickel-plated m mm 250 h"inchH 10 45 "inch 1.3 4 0 Code 0.577 6407940 No. 139 137 137 139 a 137 Grip wrench Positive fit joint to the screw nut is down to the special design of the plier jaw cgeddre IB positive fit Off-centre hexagonal division The upper jaw section covers more than half of the screw head nut. This produces a positive fit between grip wrench and screw nut. 180 The lower half of the jaw simply affords protection from any slipping from the screw nut. The actual torque is transferred in the upper positive locking zone. The difference comes from the special profile and shape. This combination prevents the pliers from being unintentionally opened -even under maximum demands placed on them. COMPETING COMPANY force locking Centre hexagonal division Positive fit joints are not suddenly released. They need in fact to change their geometric form; a visible change in form quasi announces their failure. A lack of force causes force-locking joints to suddenly fail. Accident risk 398
