403 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.401

Каталог GEDORE 2014 Слесарный инструмент Стр. 401 0403 ENG Lab2u

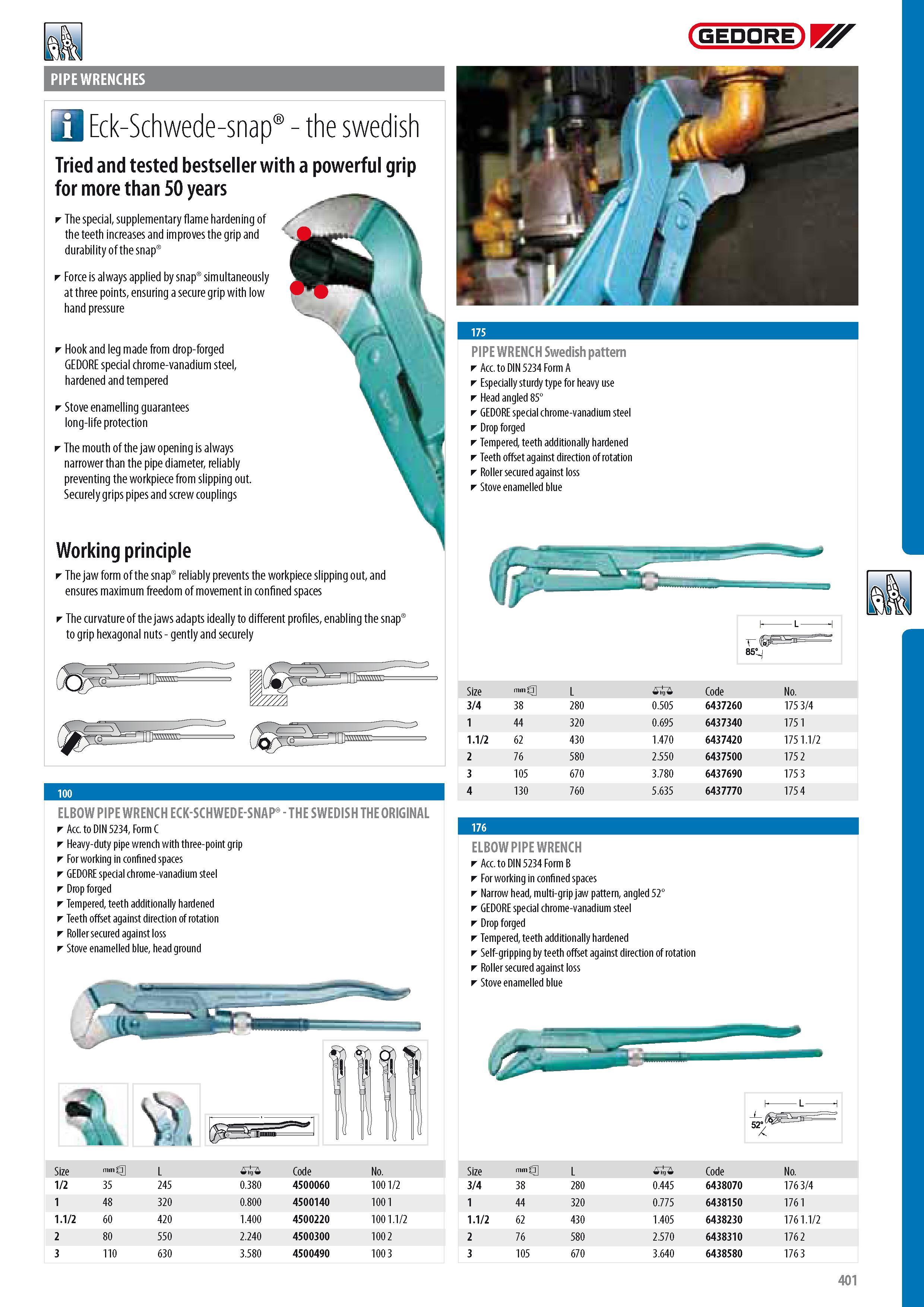

GEDORE PIPE WRENCHES a Eck-Schwede-snap - the swedish Tried and tested bestseller with a powerful grip for more than 50 years The special supplementary flame hardening of y f the teeth increases and improves the grip and ' durability of the snap Force is always applied by snap simultaneously at three points ensuring a secure grip with low hand pressure Hook and leg made from drop-forged GEDORE special chrome-vanadium steel hardened and tempered Stove enamelling guarantees long-life protection The mouth of the jaw opening is always narrower than the pipe diameter reliably preventing the workpiece from slipping out. Securely grips pipes and screw couplings Working principle The jaw form of the snap reliably prevents the workpiece slipping out and ensures maximum freedom of movement in confined spaces The curvature of the jaws adapts ideally to different profiles enabling the snap to grip hexagonal nuts - gently and securely ELBOW PIPE WRENCH ECK-SCHWEDE-SNAP - THE SWEDISH THE ORIGINAL Acc. to DIN 5234 Form C Heavy-duty pipe wrench with three-point grip For working in confined spaces GEDORE special chrome-vanadium steel Drop forged Tempered teeth additionally hardened Teeth offset against direction of rotation Roller secured against loss Stove enamelled blue head ground PIPE WRENCH Swedish pattern Acc. to DIN 5234 Form A Especially sturdy type for heavy use Head angled 85 GEDORE special chrome-vanadium steel Drop forged Tempered teeth additionally hardened Teeth offset against direction of rotation Roller secured against loss Stove enamelled blue Size 3 4 1 1.1 2 2 3 4 38 44 62 76 105 130 L 280 320 430 580 670 760 -0 0.505 0.695 1.470 2.550 3.780 5.635 Code 6437260 6437340 6437420 6437500 6437690 6437770 No. 175 3 4 175 1 175 1.1 2 175 2 175 3 175 4 ELBOW PIPE WRENCH Acc. to DIN 5234 Form B For working in confined spaces Narrow head multi-grip jaw pattern angled 52 GEDORE special chrome-vanadium steel Drop forged Tempered teeth additionally hardened Self-gripping by teeth offset against direction of rotation Roller secured against loss Stove enamelled blue Size O L -0 Code No. Size mmO L 0 Code No. 1 2 35 245 0.380 4500060 1001 2 3 4 38 280 0.445 6438070 176 3 4 1 48 320 0.800 4500140 100 44 320 0.775 6438150 176 1 1.1 2 60 420 1.400 4500220 100 1.1 2 1.1 2 62 430 1.405 6438230 1761.1 2 2 80 550 2.240 4500300 100 2 2 76 580 2.570 6438310 176 2 3 110 630 3.580 4500490 100 3 3 105 670 3.640 6438580 176 3 100 176 401
