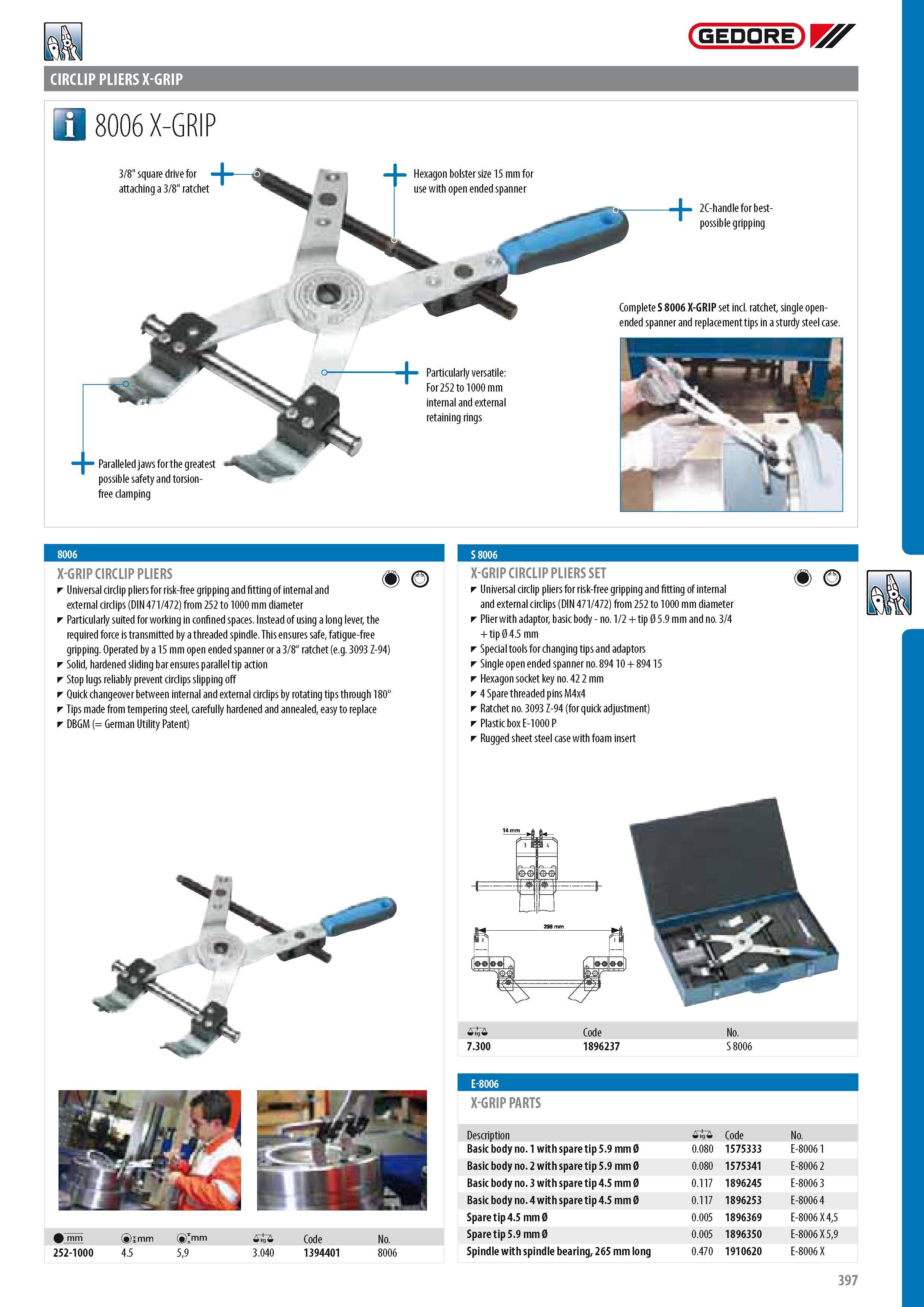

GEDORE CIRCLIP PLIERS X-GRIP 3 8006 X-GRIP 3 8" square drive for attaching a 3 8" ratchet Hexagon bolster size 15 mm for use with open ended spanner 2C-handle for best-possible gripping Complete S 8006 X-GRIP set incl. ratchet single open-ended spanner and replacement tips in a sturdy steel case. Particularly versatile For 252 to 1000 mm internal and external retaining rings Paralleled jaws for the greatest possible safety and torsion-free clamping 8006 S8006 X-GRIP CIRCLIP PLIERS Universal circlip pliers for risk-free gripping and fitting of internal and external circlips (DIN 471 472) from 252 to 1000 mm diameter Particularly suited for working in confined spaces. Instead of using a long lever the required force is transmitted by a threaded spindle. This ensures safe fatigue-free gripping. Operated by a 15 mm open ended spanner or a 3 8 ratchet (e.g. 3093 Z-94) Solid hardened sliding bar ensures parallel tip action Stop lugs reliably prevent circlips slipping off Quick changeover between internal and external circlips by rotating tips through 180 Tips made from tempering steel carefully hardened and annealed easy to replace DBGM ( German Utility Patent) B X-GRIP CIRCLIP PLIERS SET Universal circlip pliers for risk-free gripping and fitting of internal and external circlips (DIN 471 472) from 252 to 1000 mm diameter Plier with adaptor basic body - no. 1 2 + tip 0 5.9 mm and no. 3 4 + tip 0 4.5 mm Special tools for changing tips and adaptors Single open ended spanner no. 894 10 + 894 15 Hexagon socket key no. 42 2 mm 4 Spare threaded pins M4x4 Ratchet no. 3093 Z-94 (for quick adjustment) Plastic box E-1000 P Rugged sheet steel case with foam insert E mm 252-1000 imm 4.5 Imm 59 0 3.040 Code 1394401 No. 8006 0 Code No. 7.300 1896237 S 8006 E-8006 X-GRIP PARTS Description 0 Code No. Basic body no. 1 with spare tip 5.9 mm 0 0.080 1575333 E-8006 1 Basic body no. 2 with spare tip 5.9 mm 0 0.080 1575341 E-8006 2 Basic body no. 3 with spare tip 4.5 mm 0 0.117 1896245 E-8006 3 Basic body no. 4 with spare tip 4.5 mm 0 0.117 1896253 E-8006 4 Spare tip 4.5 mm 0 0.005 1896369 E-8006 X 45 Spare tip 5.9 mm 0 0.005 1896350 E-8006X59 Spindle with spindle bearing 265 mm long 0.470 1910620 E-8006 X 397
