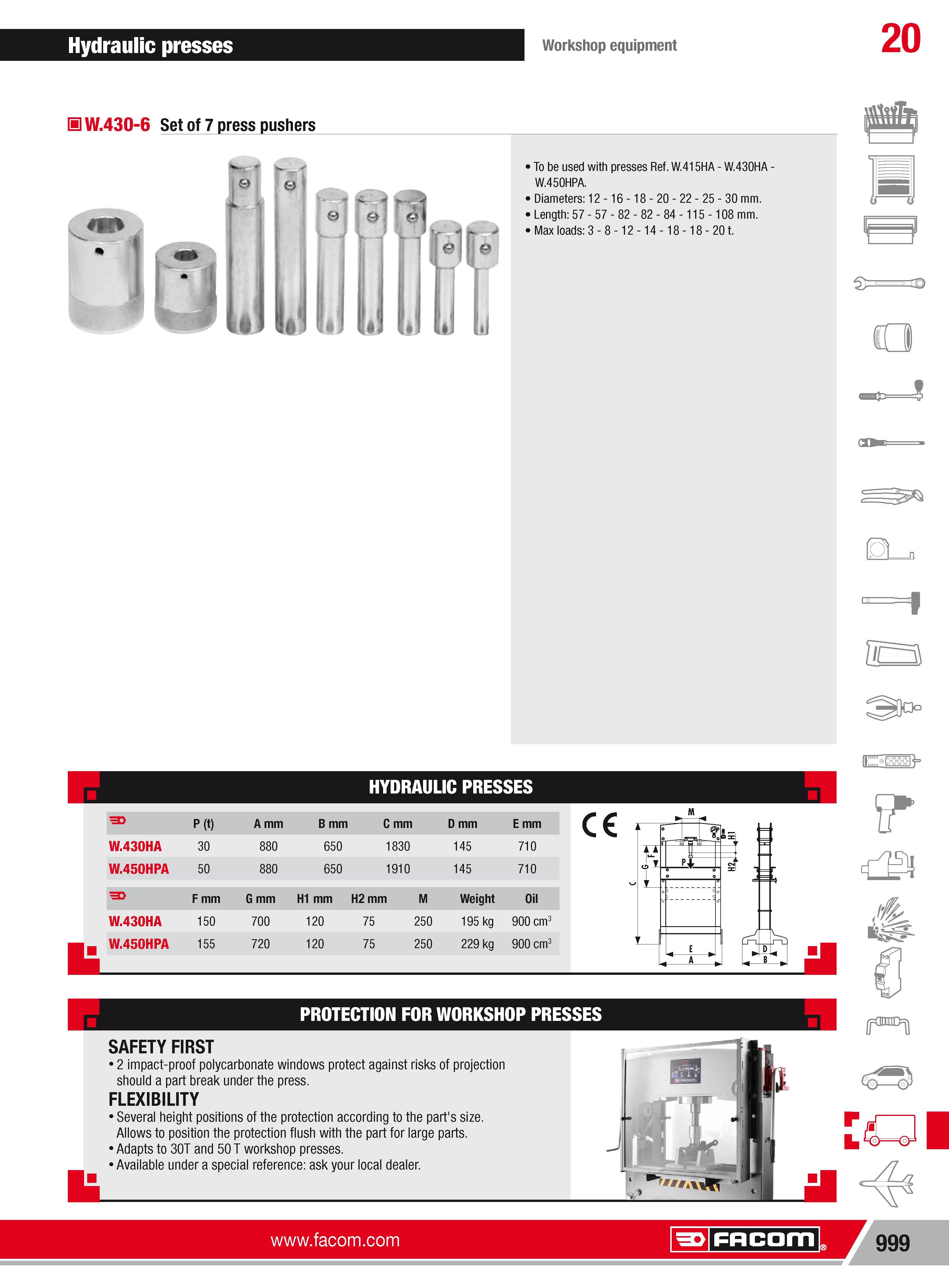

Set of 7 press pushers W.430-6 To be used with presses Ref. W.415HA W.430HA -W.450HPA. Diameters 12 16 18 20 22 25 30 mm. Length 57- 57- 82 82 84 115 108 mm. Max loads 3-8-12-14-18-18-20t. fis c cr- -Hr. d HYDRAULIC PRESSES b F P (t) A mm B mm C mm D mm E mm W.430HA 30 880 650 1830 145 710 W.450HPA 50 880 650 1910 145 710 F F mm G mm H1 mm H2 mm M Weight Oil W.430HA 150 700 120 75 250 195 kg 900 cm3 W.450HPA 155 720 120 75 250 229 kg 900 cm3 C K &SE -EJL PROTECTION FOR WORKSHOP PRESSES SAFETY FIRST 2 impact-proof polycarbonate windows protect against risks of projection should a part break under the press. FLEXIBILITY Several height positions of the protection according to the part's size. Allows to position the protection flush with the part for large parts. Adapts to 30T and 50 T workshop presses. Available under a special reference ask your local dealer. E A Facom 999 Hydraulic presses Workshop equipment 20 H
