1024 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.998

Каталог FACOM 2013 Инструмент Оборудование Стр. 998 1024 ENG Lab2u

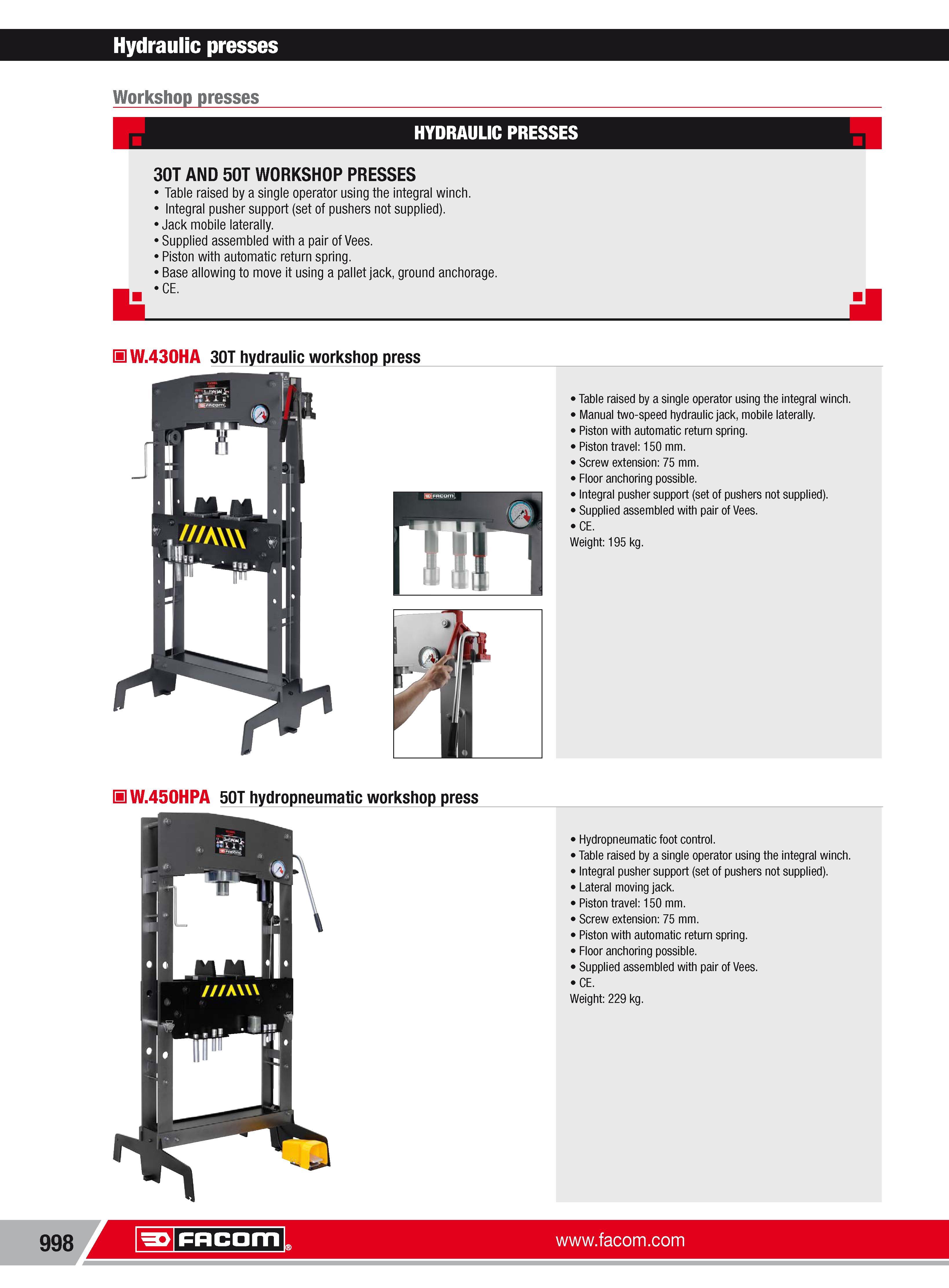

30T hydraulic workshop press W.430HA Table raised by a single operator using the integral winch. Manual two-speed hydraulic jack mobile laterally. Piston with automatic return spring. Piston travel 150 mm. Screw extension 75 mm. Floor anchoring possible. Integral pusher support (set of pushers not supplied). Supplied assembled with pair of Vees. CE. Weight 195 kg. H W.450HPA 50T hydropneumatic workshop press Hydropneumatic foot control. Table raised by a single operator using the integral winch. Integral pusher support (set of pushers not supplied). Lateral moving jack. Piston travel 150 mm. Screw extension 75 mm. Piston with automatic return spring. Floor anchoring possible. Supplied assembled with pair of Vees. CE. Weight 229 kg. 998 Facom Hydraulic presses Workshop presses d HYDRAULIC PRESSES b 30T AND 50T WORKSHOP PRESSES Table raised by a single operator using the integral winch. Integral pusher support (set of pushers not supplied). Jack mobile laterally. Supplied assembled with a pair of Vees. Piston with automatic return spring. Base allowing to move it using a pallet jack ground anchorage. CE. 11
