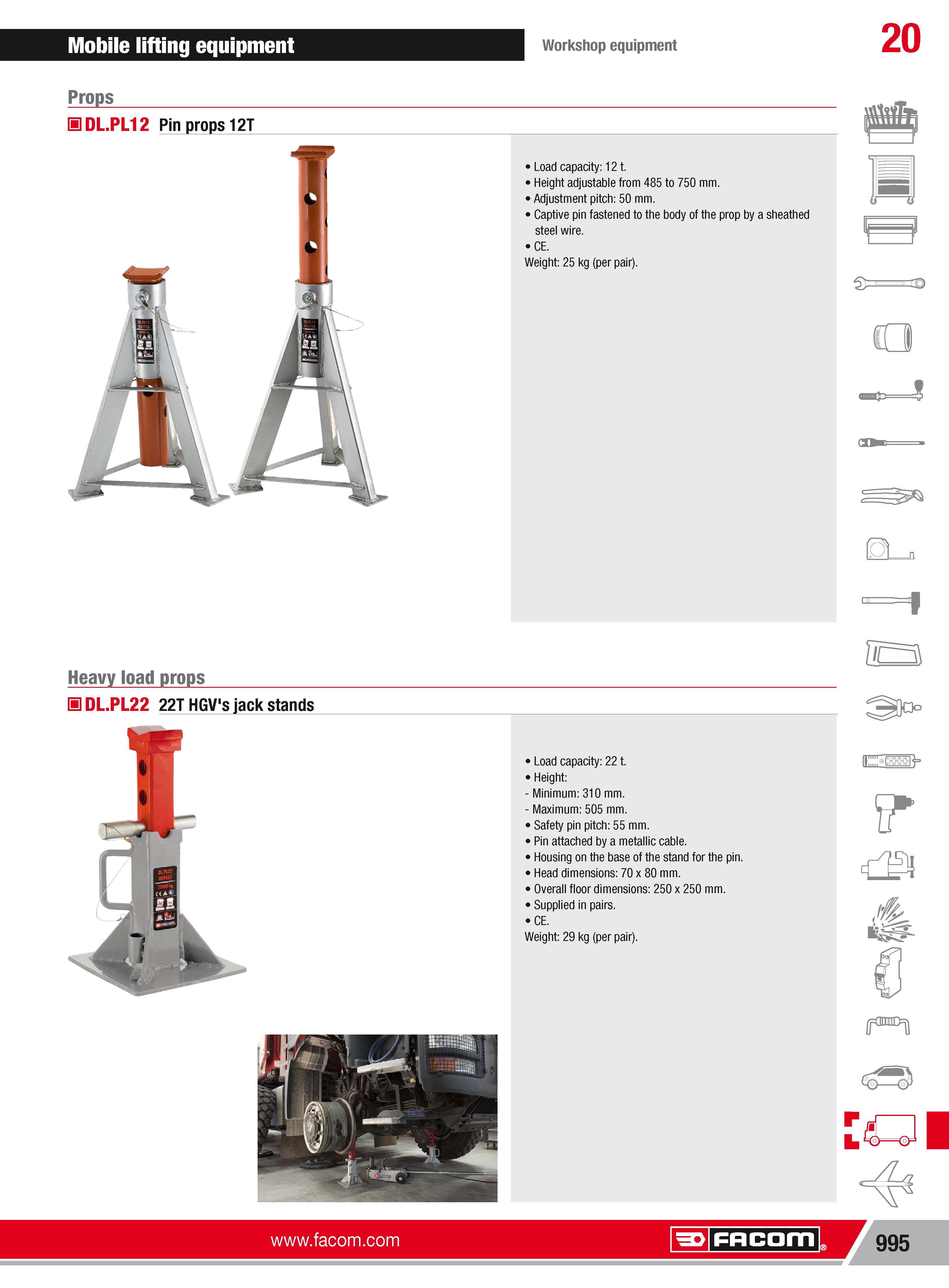

Mobile lifting equipment Workshop equipment Pin props 12T DL.PL12 Load capacity Height adjustable from 485 to 750 mm. Adjustment pitch 50 mm. Captive pin fastened to the body of the prop by a sheathed steel wire. CE. Weight 25 kg (per pair). 4 cr- -Hr. Heavy load props m DL.PL22 22T HGV's jack stands Load capacity 221. Height Minimum 310 mm. Maximum 505 mm. Safety pin pitch 55 mm. Pin attached by a metallic cable. Housing on the base of the stand for the pin. Head dimensions 70 x 80 mm. Overall floor dimensions 250 x 250 mm. Supplied in pairs. CE. Weight 29 kg (per pair). Facom 995 Facom Workshop equipment 20 Props H
