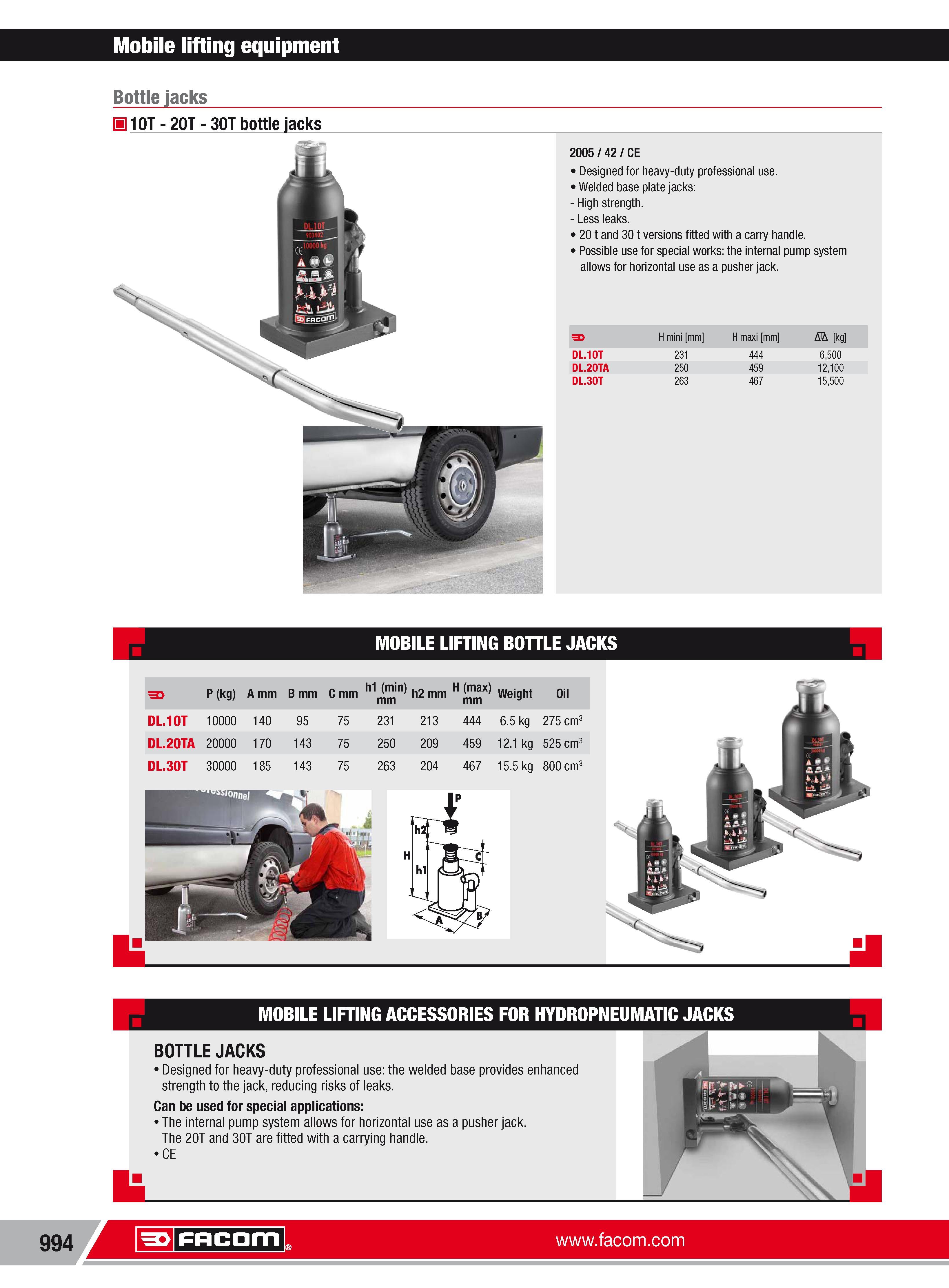

MOBILE LIFTING ACCESSORIES FOR HYDROPNEUMATIC JACKS BOTTLE JACKS Designed for heavy-duty professional use the welded base provides enhanced strength to the jack reducing risks of leaks. Can be used for special applications The internal pump system allows for horizontal use as a pusher jack. The 20T and 30T are fitted with a carrying handle. CE Facom Mobile lifting equipment Bottle jacks 10T 20T 30T bottle jacks 2005 42 CE Designed for heavy-duty professional use. Welded base plate jacks High strength. Less leaks. 201 and 301 versions fitted with a carry handle. Possible use for special works the internal pump system allows for horizontal use as a pusher jack. H mini mm H maxi mm Nh kg DL.10T 231 444 6500 DL.20TA 250 459 12100 DL.30T 263 467 15500 d MOBILE LIFTING BOTTLE JACKS b F p (kg) A mm B mm C mm h1 (min) mm h2 mm H (max) mm Weight Oil DL.10T 10000 140 95 75 231 213 444 6.5 kg 275 cm3 DL.20TA 20000 170 143 75 250 209 459 12.1 kg 525 cm3 DL.30T 30000 185 143 75 263 204 467 15.5 kg 800 cm3 994
