1018 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.992

Каталог FACOM 2013 Инструмент Оборудование Стр. 992 1018 ENG Lab2u

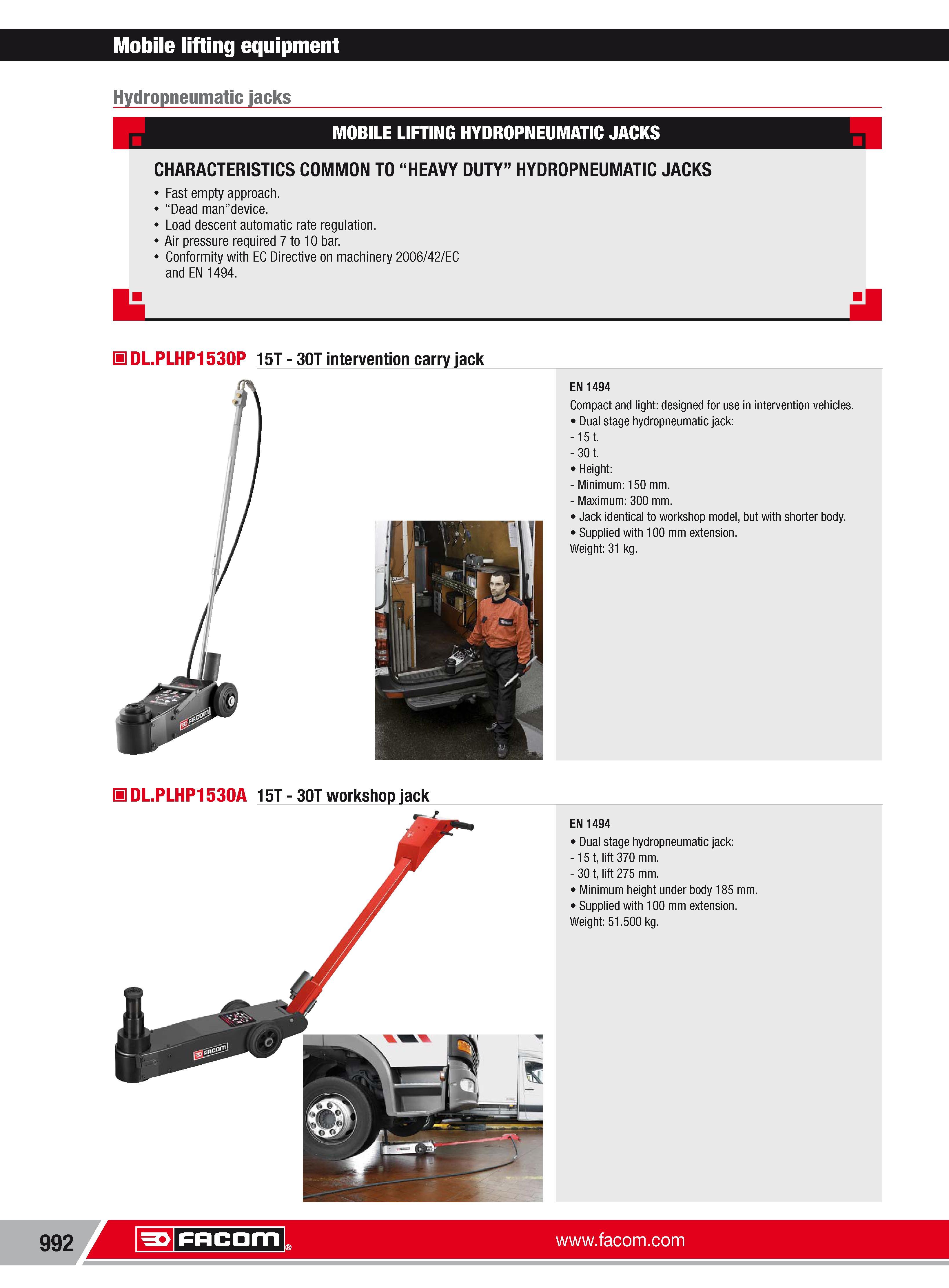

CHARACTERISTICS COMMON TO HEAVY DUTY HYDROPNEUMATIC JACKS Fast empty approach. Dead mandevice. Load descent automatic rate regulation. Air pressure required 7to10 bar. Conformity with EC Directive on machinery 2006 42 EC and EN 1494. b H DL.PLHP1530P 15T 30T intervention carry jack EN 1494 Compact and light designed for use in intervention vehicles. Dual stage hydropneumatic jack -15t. -301. Height Minimum 150 mm. Maximum 300 mm. Jack identical to workshop model but with shorter body. Supplied with 100 mm extension. Weight 31 kg. H DL.PLHP1530A 15T 30T workshop jack EN 1494 Dual stage hydropneumatic jack -15t lift 370 mm. 301 lift 275 mm. Minimum height under body 185 mm. Supplied with 100 mm extension. Weight 51.500 kg. 992 Facom Mobile lifting equipment Hydropneumatic jacks d MOBILE LIFTING HYDROPNEUMATIC JACKS
