1023 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.997

Каталог FACOM 2013 Инструмент Оборудование Стр. 997 1023 ENG Lab2u

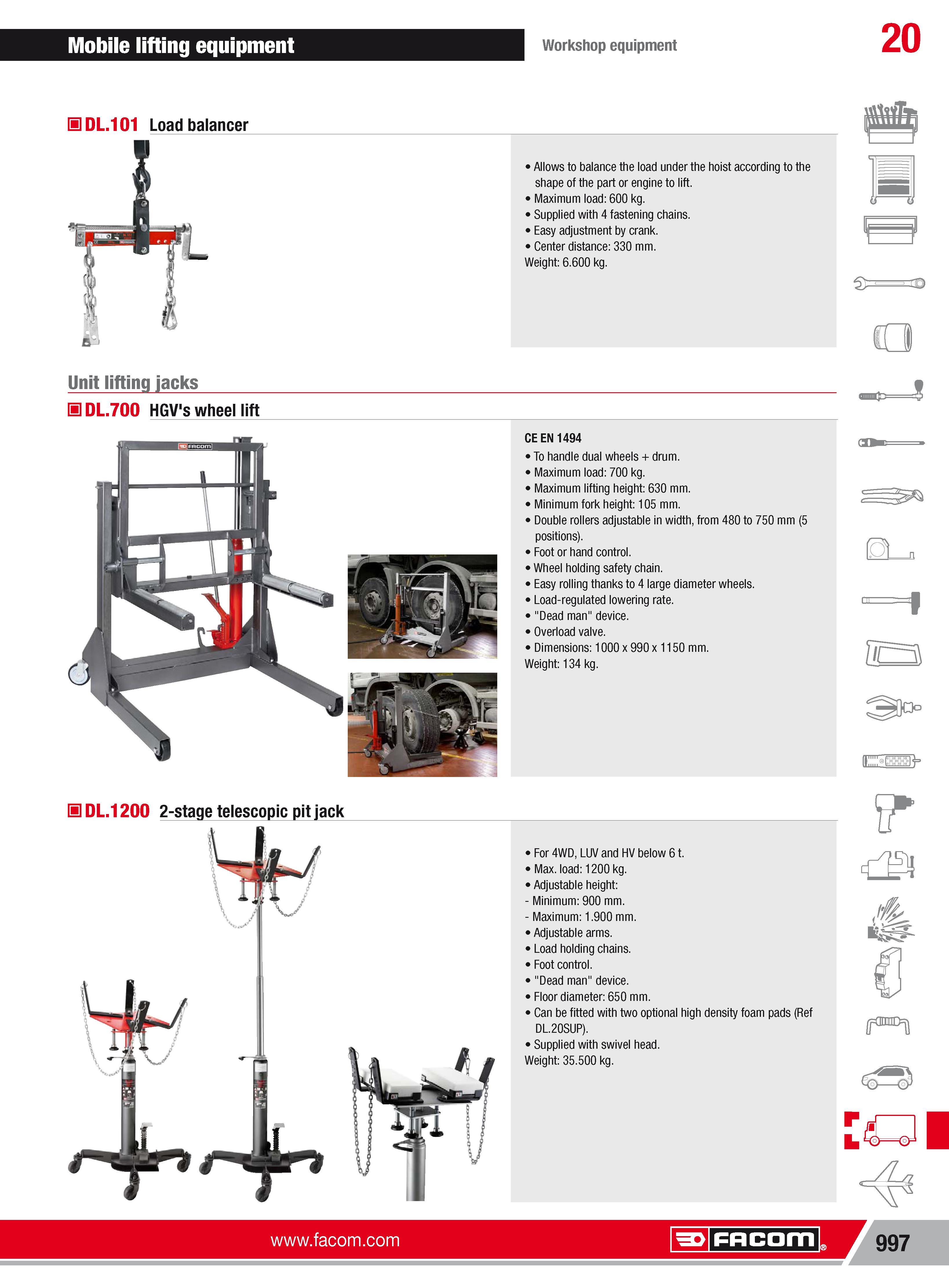

Load balancer DL.101 Allows to balance the load under the hoist according to the shape of the part or engine to lift. Maximum load 600 kg. Supplied with 4 fastening chains. Easy adjustment by crank. Center distance 330 mm. Weight 6.600 kg. 4 Unit lifting jacks HDL.700 HGV's wheel lift c CE EN 1494 To handle dual wheels + drum. Maximum load 700 kg. Maximum lifting height 630 mm. Minimum fork height 105 mm. Double rollers adjustable in width from 480 to 750 mm (5 positions). Foot or hand control. Wheel holding safety chain. Easy rolling thanks to 4 large diameter wheels. Load-regulated lowering rate. "Dead man" device. Overload valve. Dimensions 1000 x 990 x 1150 mm. Weight 134 kg. H DL.1200 2-stage telescopic pit jack For 4WD LUV and HV below 61. Max. load 1200 kg. Adjustable height Minimum 900 mm. Maximum 1.900 mm. Adjustable arms. Load holding chains. Foot control. "Dead man" device. Floor diameter 650 mm. Can be fitted with two optional high density foam pads (Ref DL.20SUP). Supplied with swivel head. Weight 35.500 kg. Facom 997 Facom Mobile lifting equipment Workshop equipment 20 H
