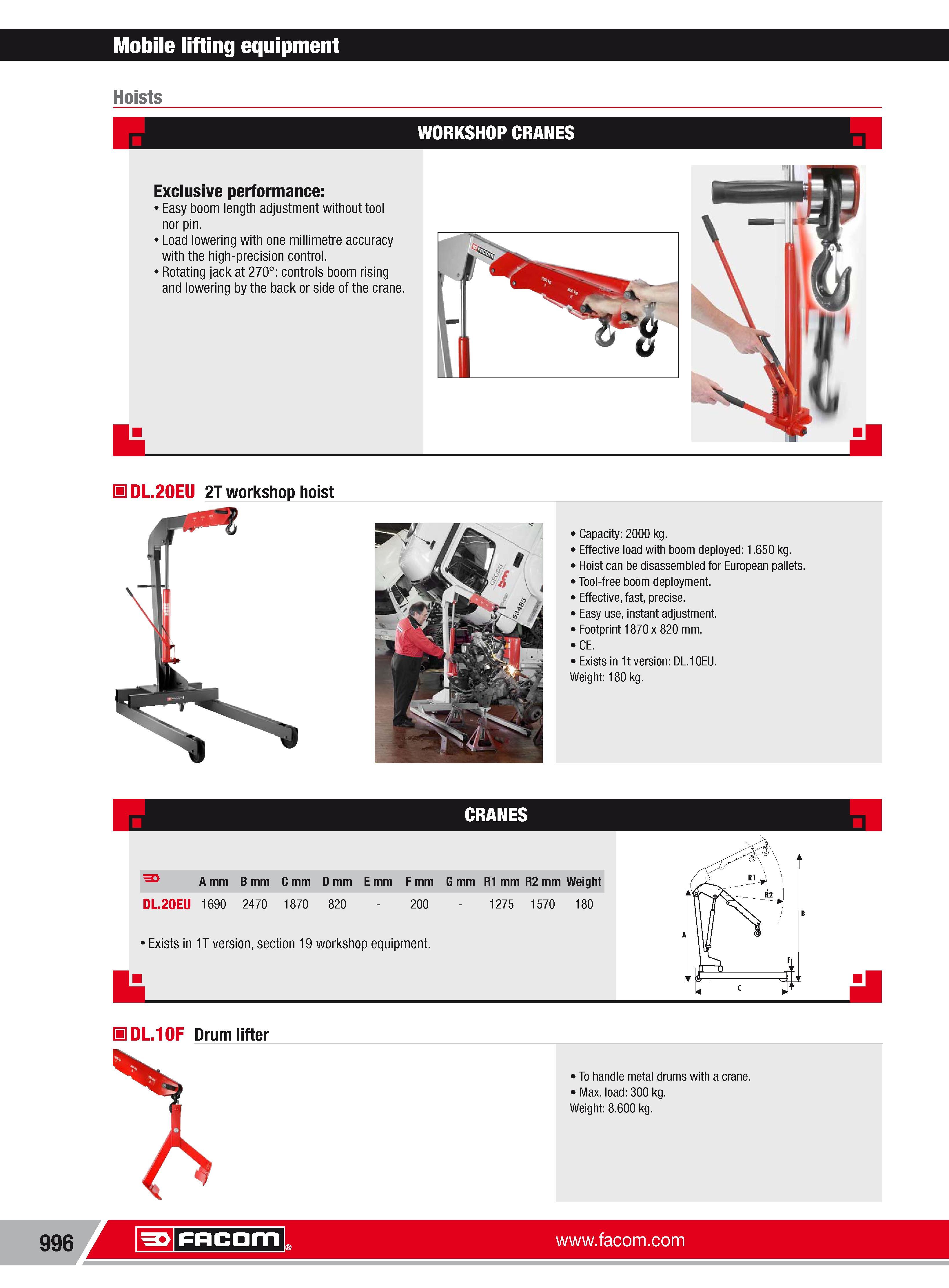

WORKSHOP CRANES Exclusive performance Easy boom length adjustment without tool nor pin. Load lowering with one millimetre accuracy with the high-precision control. Rotating jack at 270 controls boom rising and lowering by the back or side of the crane. H DL.20EU 2T workshop hoist Capacity 2000 kg. Effective load with boom deployed 1.650 kg. Hoist can be disassembled for European pallets. Tool-free boom deployment. Effective fast precise. Easy use instant adjustment. Footprint 1870 x 820 mm. CE. Exists in 1t version DL.10EU. Weight 180 kg. F A mm B mm C mm D mm E mm F mm G mm R1 mm R2 mm Weight DL.20EU 1690 2470 1870 820 200 1275 1570 180 Exists in 1T version section 19workshop equipment. HDL.10F Drum lifter To handle metal drums with a crane. Max. load 300 kg. Weight 8.600 kg. 996 Facom Mobile lifting equipment Hoists
