1027 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.1001

Каталог FACOM 2013 Инструмент Оборудование Стр. 1001 1027 ENG Lab2u

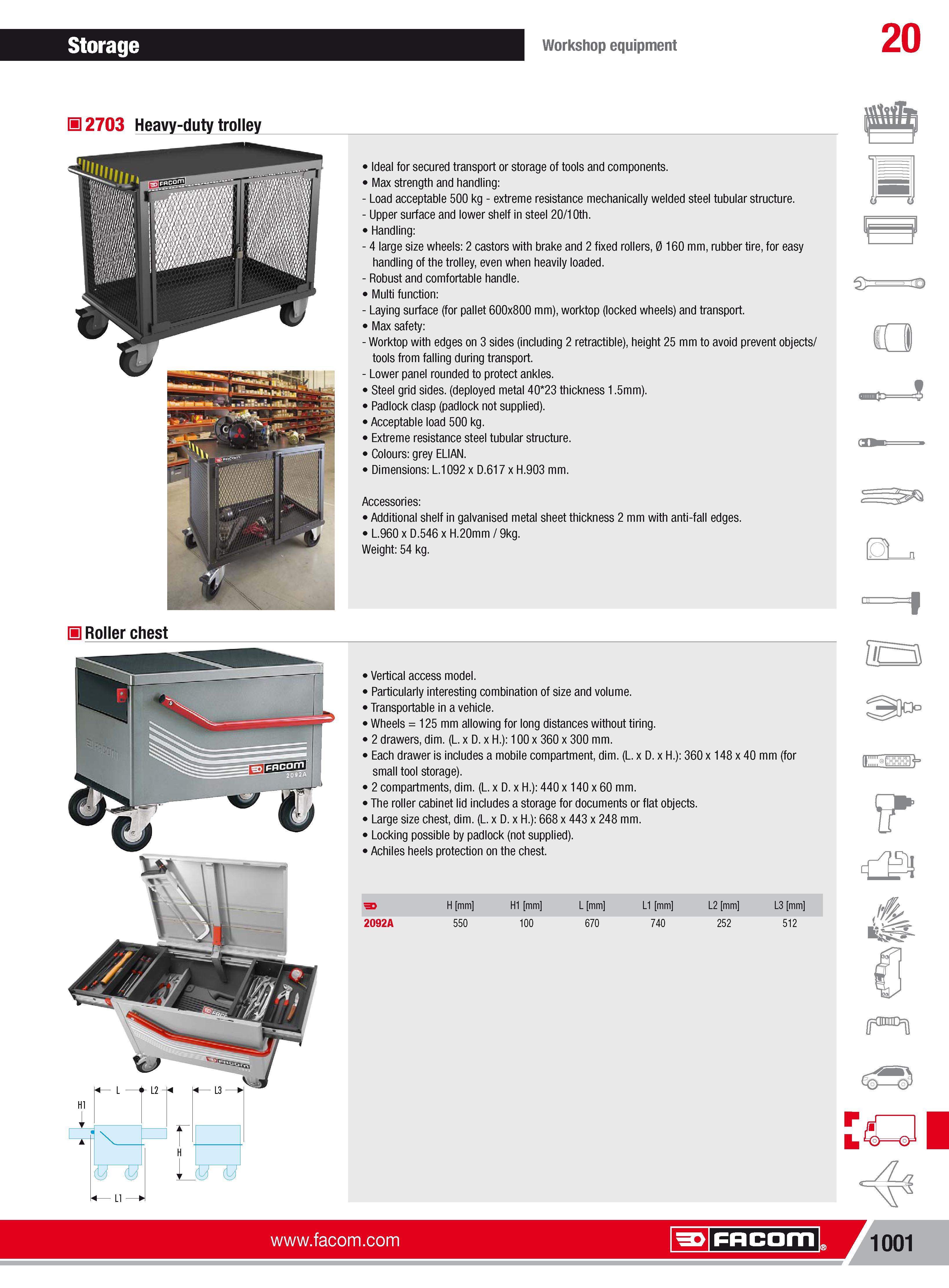

Heavy-duty trolley 2703 Ideal for secured transport or storage of tools and components. Max strength and handling Load acceptable 500 kg extreme resistance mechanically welded steel tubular structure. Upper surface and lower shelf in steel 20 10th. Handling 4 large size wheels 2 castors with brake and 2 fixed rollers 0 160 mm rubber tire for easy handling of the trolley even when heavily loaded. Robust and comfortable handle. Multi function Laying surface (for pallet 600x800 mm) worktop (locked wheels) and transport. Max safety Worktop with edges on 3 sides (including 2 retractible) height 25 mm to avoid prevent objects tools from falling during transport. Lower panel rounded to protect ankles. Steel grid sides (deployed metal 40 23 thickness 1.5mm). Padlock clasp (padlock not supplied). Acceptable load 500 kg. Extreme resistance steel tubular structure. Colours grey ELIAN. Dimensions L.1092 x D.617 x H.903 mm. Accessories Additional shelf in galvanised metal sheet thickness 2 mm with anti-fall edges. L.960 x D.546 x H.20mm 9kg. Weight 54 kg. H Roller chest Vertical access model. Particularly interesting combination of size and volume. Transportable in a vehicle. Wheels 125mm allowing for long distances without tiring. 2drawersdim. (L.xD.xH.) 100x360x300mm. Each drawer is includes a mobile compartment dim. (L. xD.x H.) 360 x 148x40 mm (for small tool storage). 2compartmentsdim. (L.xD.xH.):440x 140x60 mm. The roller cabinet lid includes a storage for documents or fiat objects. Large size chest dim. (L. xD.x H.) 668 x 443 x 248 mm. Locking possible by padlock (not supplied). Achiles heels protection on the chest. 2092A H mm 550 H1 mm 100 L mm 670 L1 mm 740 L2 mm 252 L3 mm 512 HI 1 L2 L3 t H Facom 4 cr- -Hr. 1001 Facom Storage Workshop equipment 20 H
