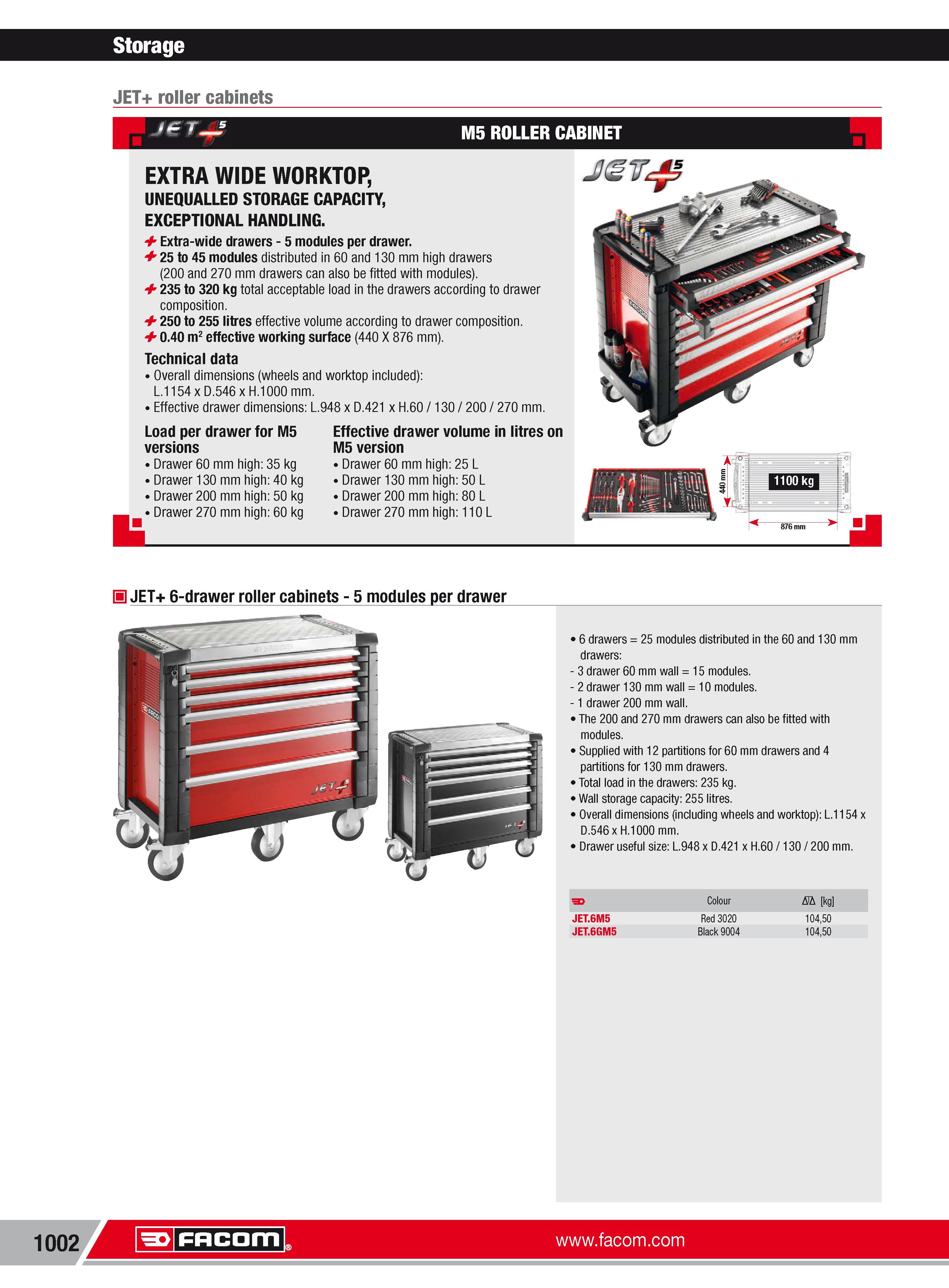

1028 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.1002

Каталог FACOM 2013 Инструмент Оборудование Стр. 1002 1028 ENG Lab2u

6-drawer roller cabinets 5 modules per drawer 6 drawers 25 modules distributed in the 60 and 130 mm drawers 3 drawer 60 mm wall 15 modules. 2 drawer 130 mm wall 10 modules. 1 drawer 200 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 12 partitions for 60 mm drawers and 4 partitions for 130 mm drawers. Total load in the drawers 235 kg. Wall storage capacity 255 litres. Overall dimensions (including wheels and worktop) L.1154 x D.546xH.1000 mm. Drawer useful size L.948 x D.421 x H.60 130 200 mm. Colour Nh kg JET.6M5 Red 3020 10450 JET.6GM5 Black 9004 10450 1002 Facom Storage JET+ roller cabinets M5 ROLLER CABINET EXTRA WIDE WORKTOP UNEQUALLED STORAGE CAPACITY EXCEPTIONAL HANDLING. Extra-wide drawers 5 modules per drawer. + 25 to 45 modules distributed in 60 and 130 mm high drawers (200 and 270 mm drawers can also be fitted with modules). + 235 to 320 kg total acceptable load in the drawers according to drawer composition. 250 to 255 litres effective volume according to drawer composition. + 0.40 m2 effective working surface (440 X 876 mm). Technical data Overall dimensions (wheels and worktop included) L.1154 x D.546 x H.1000 mm. Effective drawer dimensions L.948 x D.421 x H.60 130 200 270 mm. Load per drawer for M5 versions Drawer 60 mm high 35 kg Drawer 130 mm high 40 kg Drawer 200 mm high 50 kg Drawer 270 mm high 60 kg Effective drawer volume in litres on M5 version Drawer 60 mm high 25 L Drawer 130 mm high 50 L Drawer 200 mm high 80 L Drawer 270 mm high 110 L JET+
