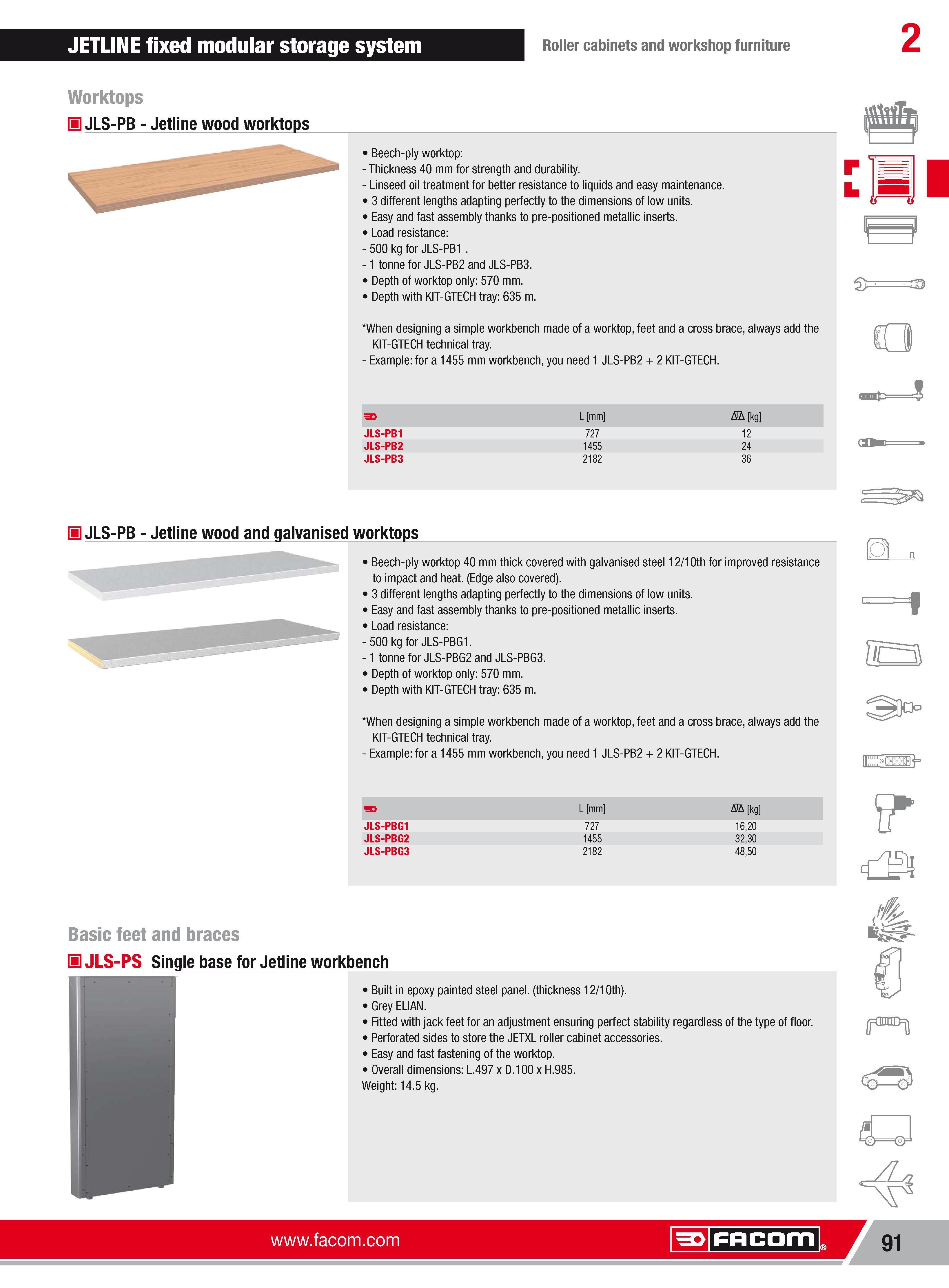

117 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.91

Каталог FACOM 2013 Инструмент Оборудование Стр. 91 0117 ENG Lab2u

JETLINE fixed modular storage system Roller cabinets and workshop furniture 2 Worktops JLS-PB Jetline wood worktops Beech-ply worktop Thickness 40 mm for strength and durability. Linseed oil treatment for better resistance to liquids and easy maintenance. 3 different lengths adapting perfectly to the dimensions of low units. Easy and fast assembly thanks to pre-positioned metallic inserts. Load resistance 500 kg for JLS-PB1 -1 tonne for JLS-PB2 and JLS-PB3. Depth of worktop only 570 mm. Depth with KIT-GTECH tray 635 m. When designing a simple workbench made of a worktop feet and a cross brace always add the KIT-GTECH technical tray. Example for a 1455 mm workbench you need 1 JLS-PB2 + 2 KIT-GTECH. r L i L mm Aft kg JLS-PB1 727 12 JLS-PB2 1455 24 JLS-PB3 2182 36 r H JLS-PB Jetline wood and galvanised worktops Beech-ply worktop 40 mm thick covered with galvanised steel 12 10th for improved resistance to impact and heat. (Edge also covered). 3 different lengths adapting perfectly to the dimensions of low units. Easy and fast assembly thanks to pre-positioned metallic inserts. Load resistance 500 kg for JLS-PBG1. -1 tonne for JLS-PBG2 and JLS-PBG3. Depth of worktop only 570 mm. Depth with KIT-GTECH tray 635 m. When designing a simple workbench made of a worktop feet and a cross brace always add the KIT-GTECH technical tray. Example for a 1455 mm workbench you need 1 JLS-PB2 + 2 KIT-GTECH. L mm Aft kg JLS-PBG1 727 1620 JLS-PBG2 1455 3230 JLS-PBG3 2182 4850 Basic feet and braces H JLS-PS Single base for Jetline workbench Built in epoxy painted steel panel (thickness 12 10th). Grey ELIAN. Fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. Perforated sides to store the JETXL roller cabinet accessories. Easy and fast fastening of the worktop. Overall dimensions L.497 xD.100x H.985. Weight 14.5 kg. Facom 91 Facom
