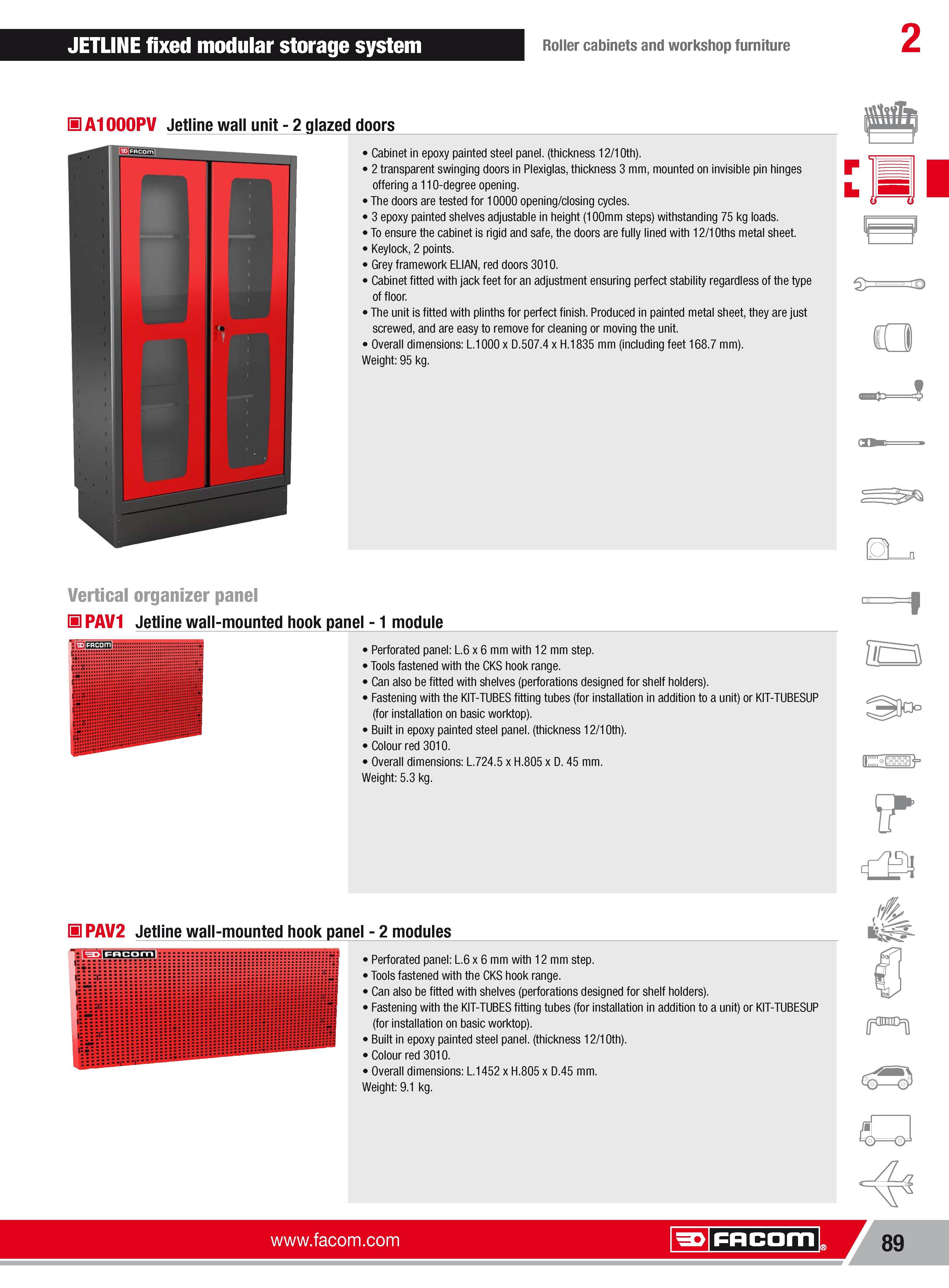

JETLINE fixed modular storage system Roller cabinets and workshop furniture 2 H A1000PV Jetline wall unit 2 glazed doors Cabinet in epoxy painted steel panel (thickness 12 10th). 2 transparent swinging doors in Plexiglas thickness 3 mm mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 10000 opening closing cycles. 3 epoxy painted shelves adjustable in height (100mm steps) withstanding 75 kg loads. To ensure the cabinet is rigid and safe the doors are fully lined with 12 10ths metal sheet. Keylock 2 points. Grey framework ELIAN red doors 3010. Cabinet fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Overall dimensions L.1000x D.507.4xH.1835 mm (including feet 168.7 mm). Weight 95 kg. r L i Vertical organizer panel PAV1 Jetline wall-mounted hook panel 1 module Igismsi Perforated panel L.6 x6mm with 12 mm step. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colourred 3010. Overall dimensions L.724.5 x H.805 x D. 45 mm. Weight 5.3 kg. H PAV2 Jetline wall-mounted hook panel 2 modules Perforated panel L.6 x6mm with 12 mm step. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colour red 3010. Overall dimensions L.1452 x H.805 x D.45 mm. Weight 9.1 kg. Facom 89 Facom
