113 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.87

Каталог FACOM 2013 Инструмент Оборудование Стр. 87 0113 ENG Lab2u

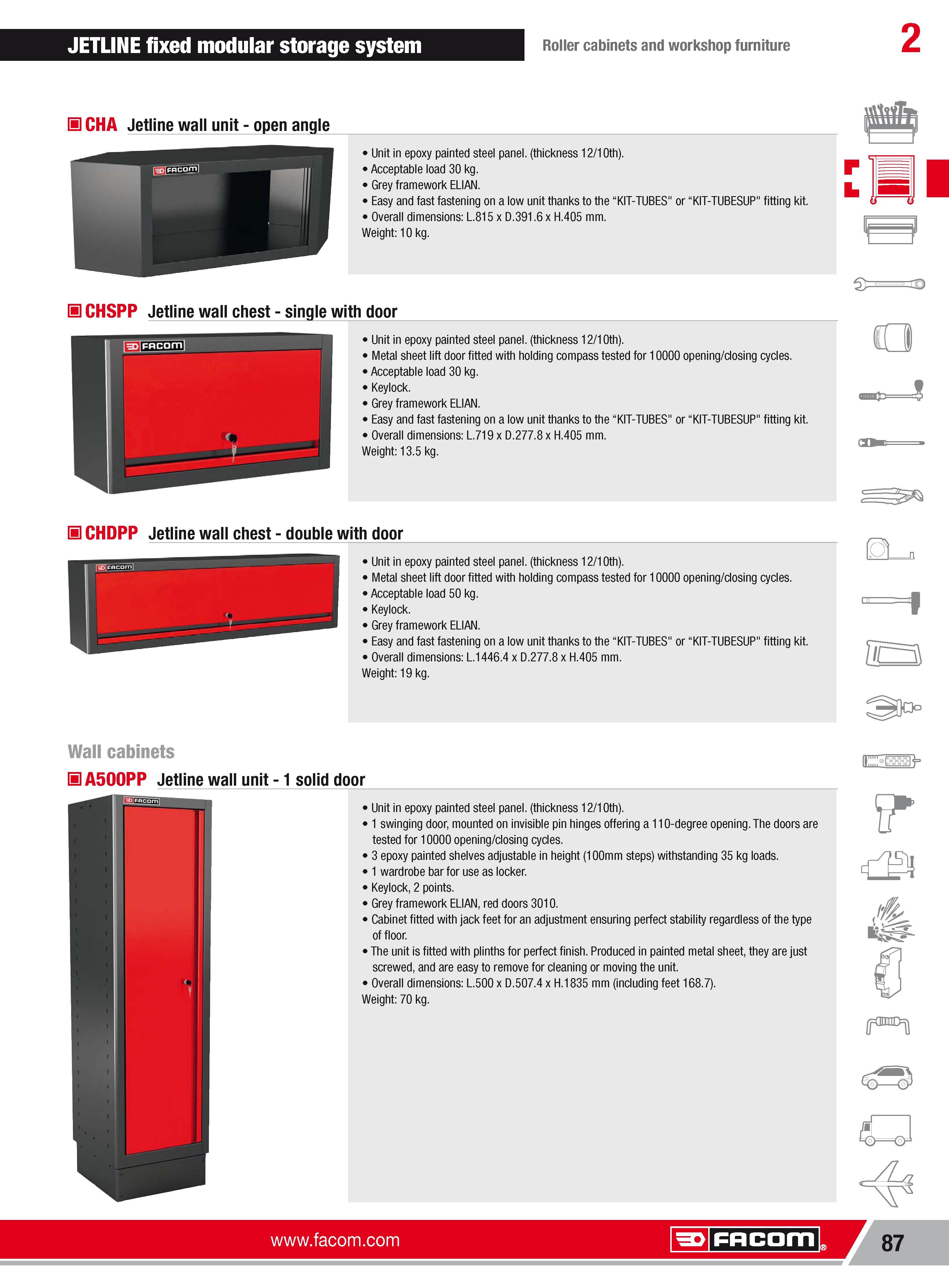

JETLINE fixed modular storage system Roller cabinets and workshop furniture 2 H CHA Jetline wall unit open angle Unit in epoxy painted steel panel (thickness 12 10th). Acceptable load 30 kg. Grey framework ELIAN. Easy and fast fastening on a low unit thanks to the KIT-TUBES" or KIT-TUBESUP" fitting kit. Overall dimensions L.815 x D.391.6 x H.405 mm. Weight 10 kg. H CHSPP Jetline wall chest single with door Unit in epoxy painted steel panel (thickness 12 10th). Metal sheet lift door fitted with holding compass tested for 10000 opening closing cycles. Acceptable load 30 kg. Keylock. Grey framework ELIAN. Easy and fast fastening on a low unit thanks to the KIT-TUBES" or KIT-TUBESUP" fitting kit. Overall dimensions L.719 x D.277.8 x H.405 mm. Weight 13.5 kg. fig r L H CHDPP Jetline wall chest double with door Unit in epoxy painted steel panel (thickness 12 10th). Metal sheet lift door fitted with holding compass tested for 10000 opening closing cycles. Acceptable load 50 kg. Keylock. Grey framework ELIAN. Easy and fast fastening on a low unit thanks to the KIT-TUBES" or KIT-TUBESUP" fitting kit. Overall dimensions L.1446.4 x D.277.8 x H.405 mm. Weight 19 kg. Wall cabinets H A500PP Jetline wall unit 1 solid door Unit in epoxy painted steel panel (thickness 12 10th). 1 swinging door mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 10000 opening closing cycles. 3 epoxy painted shelves adjustable in height (100mm steps) withstanding 35 kg loads. 1 wardrobe bar for use as locker. Keylock 2 points. Grey framework ELIAN red doors 3010. Cabinet fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Overall dimensions L.500xD.507.4xH.1835 mm (including feet 168.7). Weight 70 kg. Facom 87 Facom
