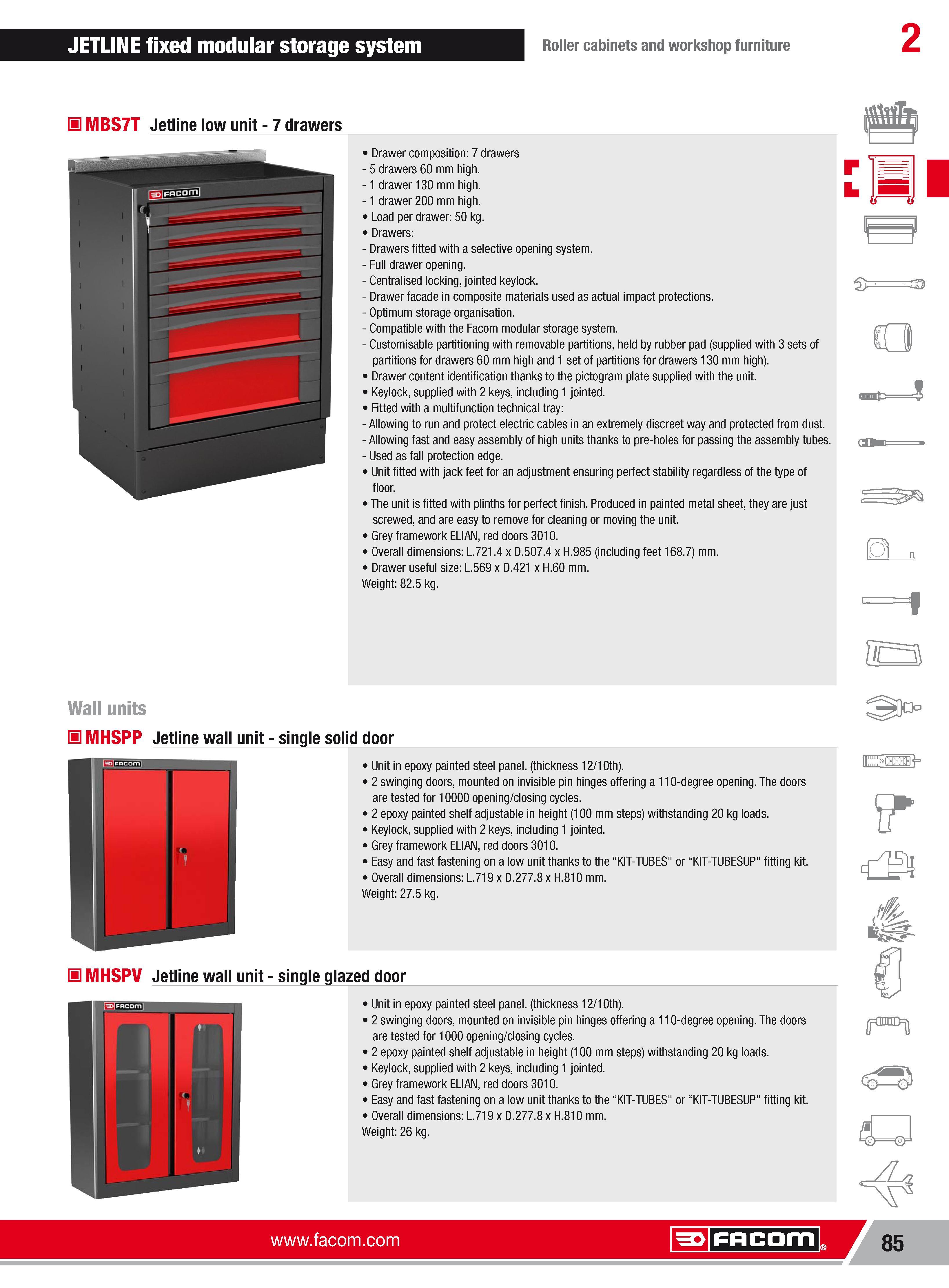

111 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.85

Каталог FACOM 2013 Инструмент Оборудование Стр. 85 0111 ENG Lab2u

JETLINE fixed modular storage system Roller cabinets and workshop furniture 2 H MBS7T Jetline low unit 7 drawers Drawer composition 7 drawers 5 drawers 60 mm high. -1 drawer130 mm high. -1 drawer 200 mm high. Load per drawer 50 kg. Drawers Drawers fitted with a selective opening system. Full drawer opening. Centralised locking jointed keylock. Drawer facade in composite materials used as actual impact protections. Optimum storage organisation. Compatible with the Facom modular storage system. Customisable partitioning with removable partitions held by rubber pad (supplied with 3 sets of partitions for drawers 60 mm high and 1 set of partitions for drawers 130 mm high). Drawer content identification thanks to the pictogram plate supplied with the unit. Keylock supplied with 2 keys including 1 jointed. Fitted with a multifunction technical tray Allowing to run and protect electric cables in an extremely discreet way and protected from dust. Allowing fast and easy assembly of high units thanks to pre-holes for passing the assembly tubes. Used as fall protection edge. Unit fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Grey framework ELIAN red doors 3010. Overall dimensions L.721.4 x D.507.4 x H.985 (including feet 168.7) mm. Drawer useful size L.569 x D.421 x H.60 mm. Weight 82.5 kg. r L i Wall units H MHSPP Jetline wall unit single solid door Unit in epoxy painted steel panel (thickness 12 10th). 2 swinging doors mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 10000 opening closing cycles. 2 epoxy painted shelf adjustable in height (100 mm steps) withstanding 20 kg loads. Keylock supplied with 2 keys including 1 jointed. Grey framework ELIAN red doors 3010. Easy and fast fastening on a low unit thanks to the KIT-TUBES" or KIT-TUBESUP" fitting kit. Overall dimensions L.719 x D.277.8 xH.810mm. Weight 27.5 kg. H MHSPV Jetline wall unit single glazed door Unit in epoxy painted steel panel (thickness 12 10th). 2 swinging doors mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 1000 opening closing cycles. 2 epoxy painted shelf adjustable in height (100 mm steps) withstanding 20 kg loads. Keylock supplied with 2 keys including 1 jointed. Grey framework ELIAN red doors 3010. Easy and fast fastening on a low unit thanks to the KIT-TUBES" or KIT-TUBESUP" fitting kit. Overall dimensions L.719 x D.277.8 xH.810mm. Weight 26 kg. Facom 85
