114 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.88

Каталог FACOM 2013 Инструмент Оборудование Стр. 88 0114 ENG Lab2u

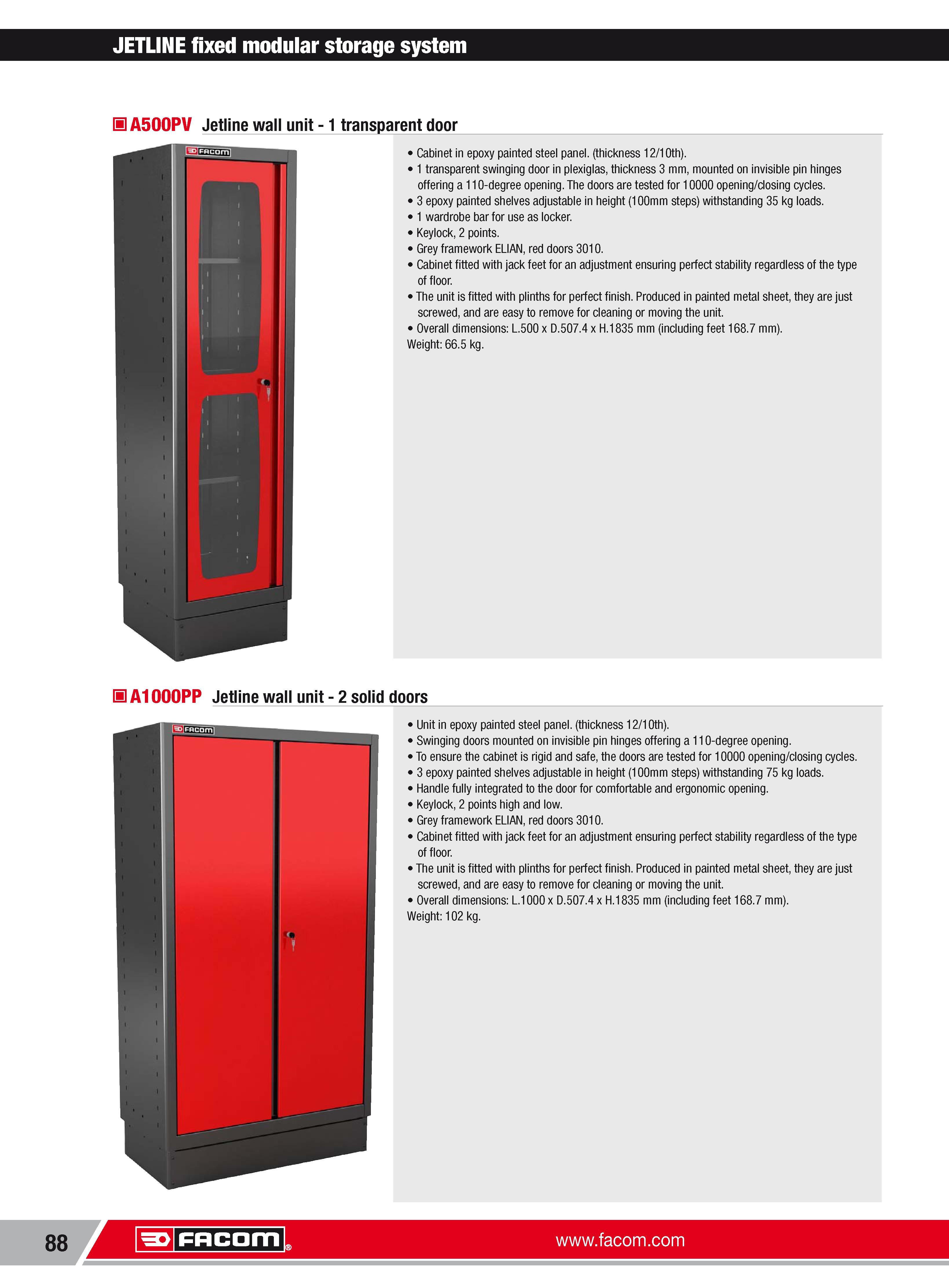

JETLINE fixed modular storage system H A500PV Jetline wall unit 1 transparent door Cabinet in epoxy painted steel panel (thickness 12 10th). 1 transparent swinging door in plexiglas thickness 3 mm mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 10000 opening closing cycles. 3 epoxy painted shelves adjustable in height (100mm steps) withstanding 35 kg loads. 1 wardrobe bar for use as locker. Keylock 2 points. Grey framework ELIAN red doors 3010. Cabinet fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Overall dimensions L.500x D.507.4xH.1835 mm (including feet 168.7 mm). Weight 66.5 kg. A1000PP Jetline wall unit 2 solid doors Unit in epoxy painted steel panel (thickness 12 10th). Swinging doors mounted on invisible pin hinges offering a 110-degree opening. To ensure the cabinet is rigid and safe the doors are tested for 10000 opening closing cycles. 3 epoxy painted shelves adjustable in height (100mm steps) withstanding 75 kg loads. Handle fully integrated to the door for comfortable and ergonomic opening. Keylock 2 points high and low. Grey framework ELIAN red doors 3010. Cabinet fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Overall dimensions L.1000x D.507.4xH.1835 mm (including feet 168.7 mm). Weight 102 kg. 88 Facom
