116 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.90

Каталог FACOM 2013 Инструмент Оборудование Стр. 90 0116 ENG Lab2u

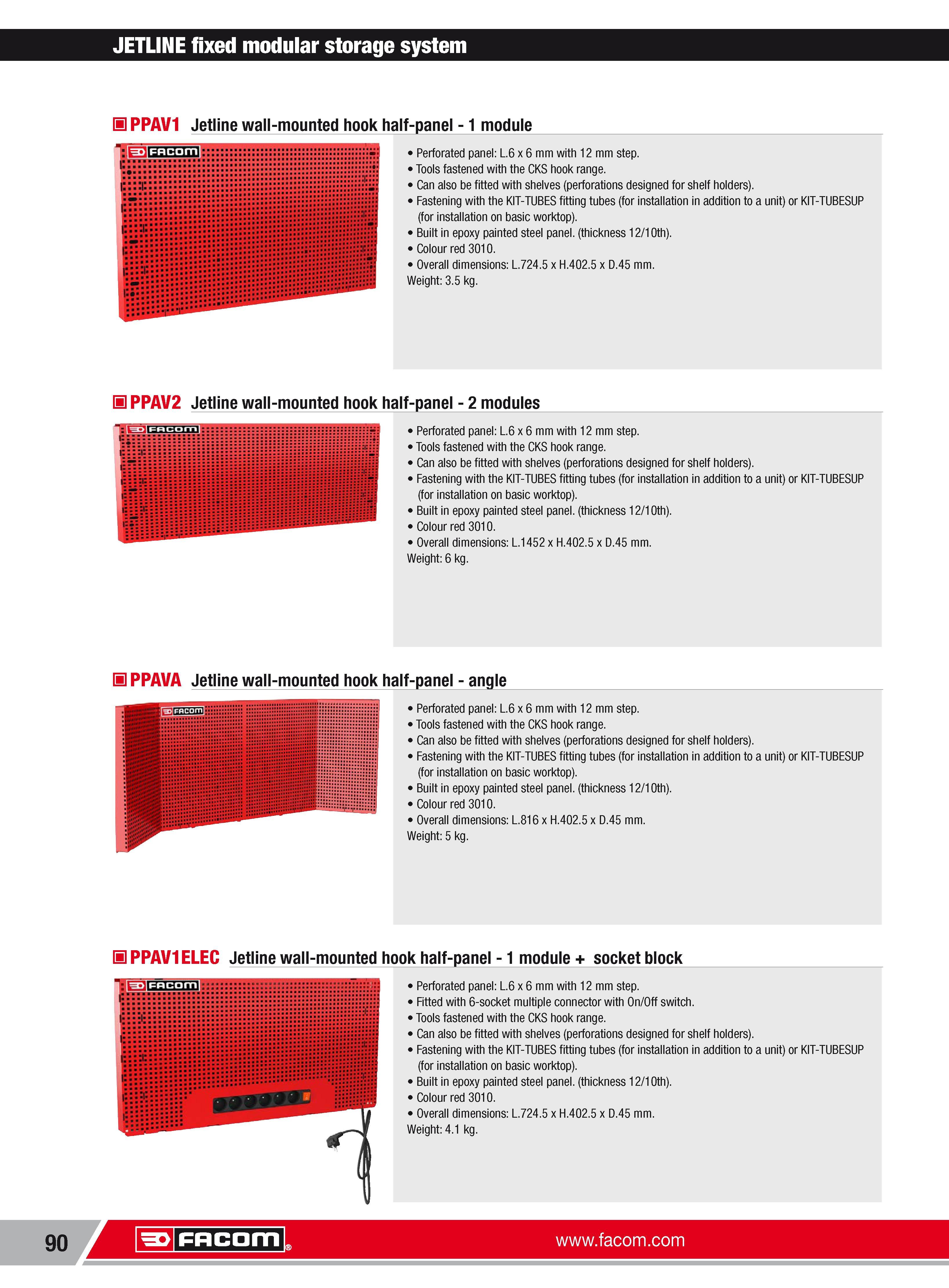

JETLINE fixed modular storage system H PPAV1 Jetline wall-mounted hook half-panel 1 module Perforated panel L.6 x6mm with 12 mm step. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colour red 3010. Overall dimensions L.724.5 x H.402.5 x D.45 mm. Weight 3.5 kg. H PPAV2 Jetline wall-mounted hook half-panel 2 modules Perforated panel L.6 x6mm with 12 mm step. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colour red 3010. Overall dimensions L.1452 x H.402.5 x D.45 mm. Weight 6 kg. H PPAVA Jetline wall-mounted hook half-panel angle Perforated panel L.6 x6mm with 12 mm step. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colour red 3010. Overall dimensions L.816x H.402.5 x D.45 mm. Weight 5 kg. H PPAV1ELEC Jetline wall-mounted hook half-panel 1 module + socket block Perforated panel L.6 x6mm with 12 mm step. Fitted with 6-socket multiple connectorwith On Off switch. Tools fastened with the CKS hook range. Can also be fitted with shelves (perforations designed for shelf holders). Fastening with the KIT-TUBES fitting tubes (for installation in addition to a unit) or KIT-TUBESUP (for installation on basic worktop). Built in epoxy painted steel panel (thickness 12 10th). Colour red 3010. Overall dimensions L.724.5 x H.402.5 x D.45 mm. Weight 4.1 kg. 90 Facom
