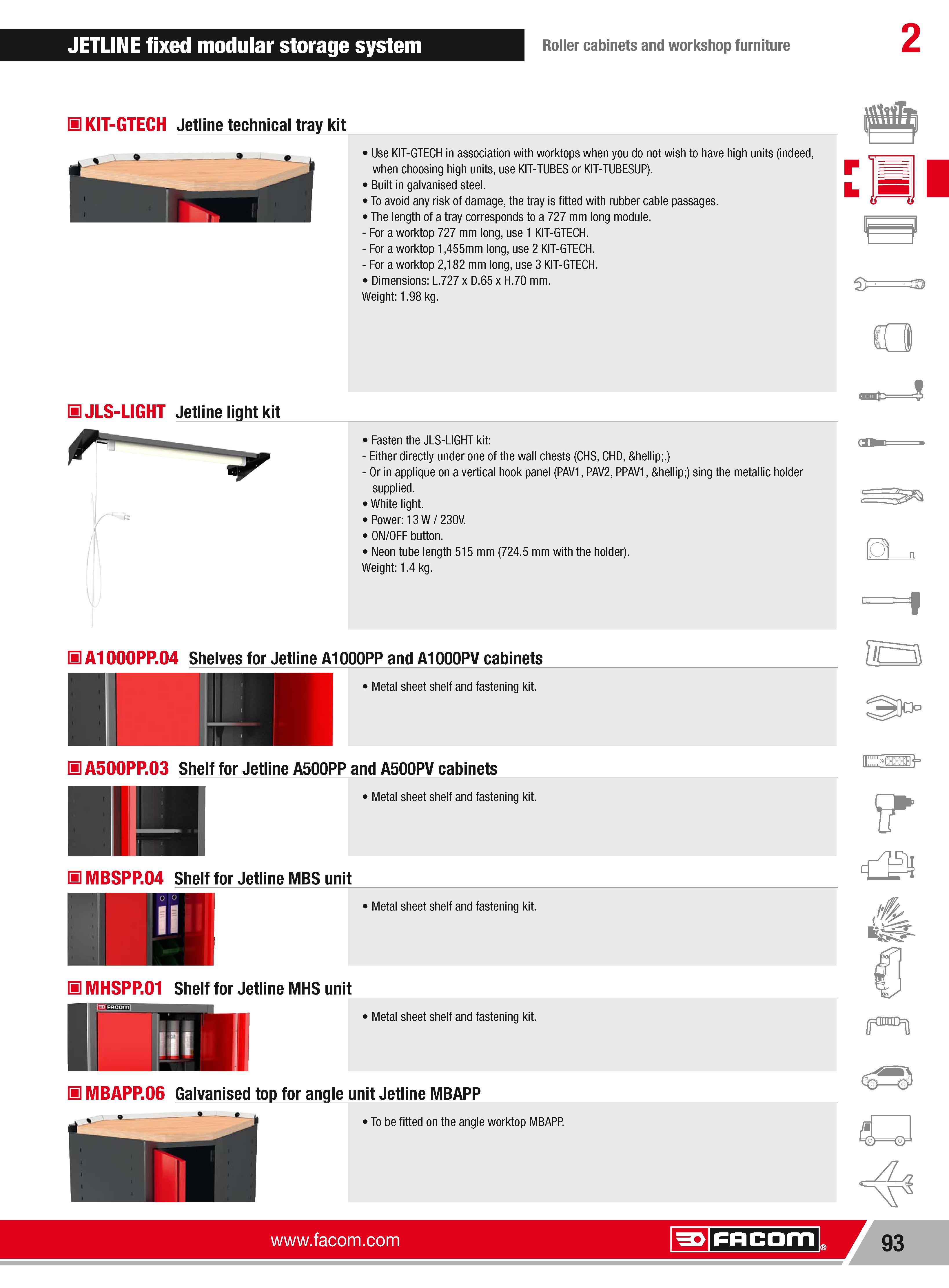

JETLINE fixed modular storage system Roller cabinets and workshop furniture 2 H KIT-GTECH Jetline technical tray kit Use KIT-GTECH in association with worktops when you do not wish to have high units (indeed when choosing high units use KIT-TUBES or KIT-TUBESUP). Built in galvanised steel. To avoid any risk of damage the tray is fitted with rubber cable passages. The length of a tray corresponds to a 727 mm long module. For a worktop 727 mm long use 1 KIT-GTECH. For a worktop 1455mm long use 2 KIT-GTECH. For a worktop 2182 mm long use 3 KIT-GTECH. Dimensions L.727 x D.65 x H.70 mm. Weight 1.98 kg. fig r L H JLS-LIGHT Jetline light kit c Fasten the JLS-LIGHT kit Either directly under one of the wall chests (CHS CHD Shellip;.) Or in applique on a vertical hook panel (PAV1 PAV2 PPAV1 Shellip;) sing the metallic holder supplied. White light. Power 13W 230V. ON OFF button. Neon tube length 515 mm (724.5 mm with the holder). Weight 1.4 kg. H A1000PP.04 Shelves for Jetline A1000PP and A1000PV cabinets Metal sheet shelf and fastening kit. H A500PP.03 Shelf for Jetline A500PP and A500PV cabinets Metal sheet shelf and fastening kit. II MBSPP.04 Shelf for Jetline MBS unit Metal sheet shelf and fastening kit. H MHSPP.01 Shelf for Jetline MHS unit II ml Metal sheet shelf and fastening kit. H MBAPP.06 Galvanised top for angle unit Jetline MBAPP To be fitted on the angle worktop MBAPP. Facom M s 93 Facom
