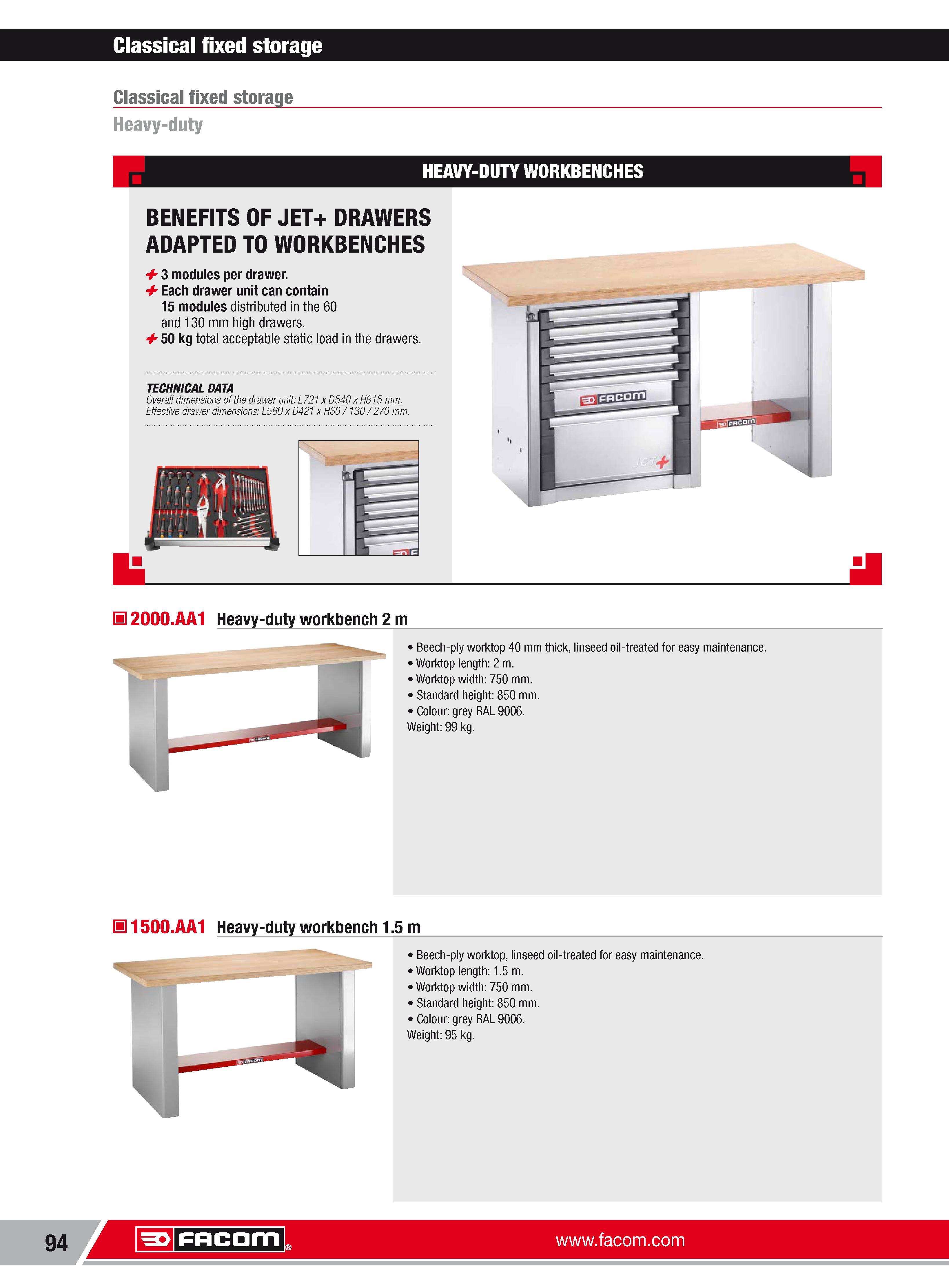

120 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.94

Каталог FACOM 2013 Инструмент Оборудование Стр. 94 0120 ENG Lab2u

Classical fixed storage Classical fixed storage Heavy-duty HEAVY-DUTY WORKBENCHES BENEFITS OF JET+ DRAWERS ADAPTED TO WORKBENCHES 3 modules per drawer. + Each drawer unit can contain 15 modules distributed in the 60 and 130 mm high drawers. + 50 kg total acceptable static load in the drawers. TECHNICAL DATA Overall dimensions of the drawer unit L721 x D540 x H815 mm. Effective drawer dimensions L569 x D421 x H60 130 270 mm. H 2000.AA1 Heavy-duty workbench 2 m Beech-ply worktop 40 mm thick linseed oil-treated for easy maintenance. Worktop length 2 m. Worktop width 750 mm. Standard height 850 mm. Colour grey RAL 9006. Weight 99 kg. H 1500.AA1 Heavy-duty workbench 1.5 m Beech-ply worktop linseed oil-treated for easy maintenance. Worktop length 1.5 m. Worktop width 750 mm. Standard height 850 mm. Colour grey RAL 9006. Weight 95 kg. 94 Facom
