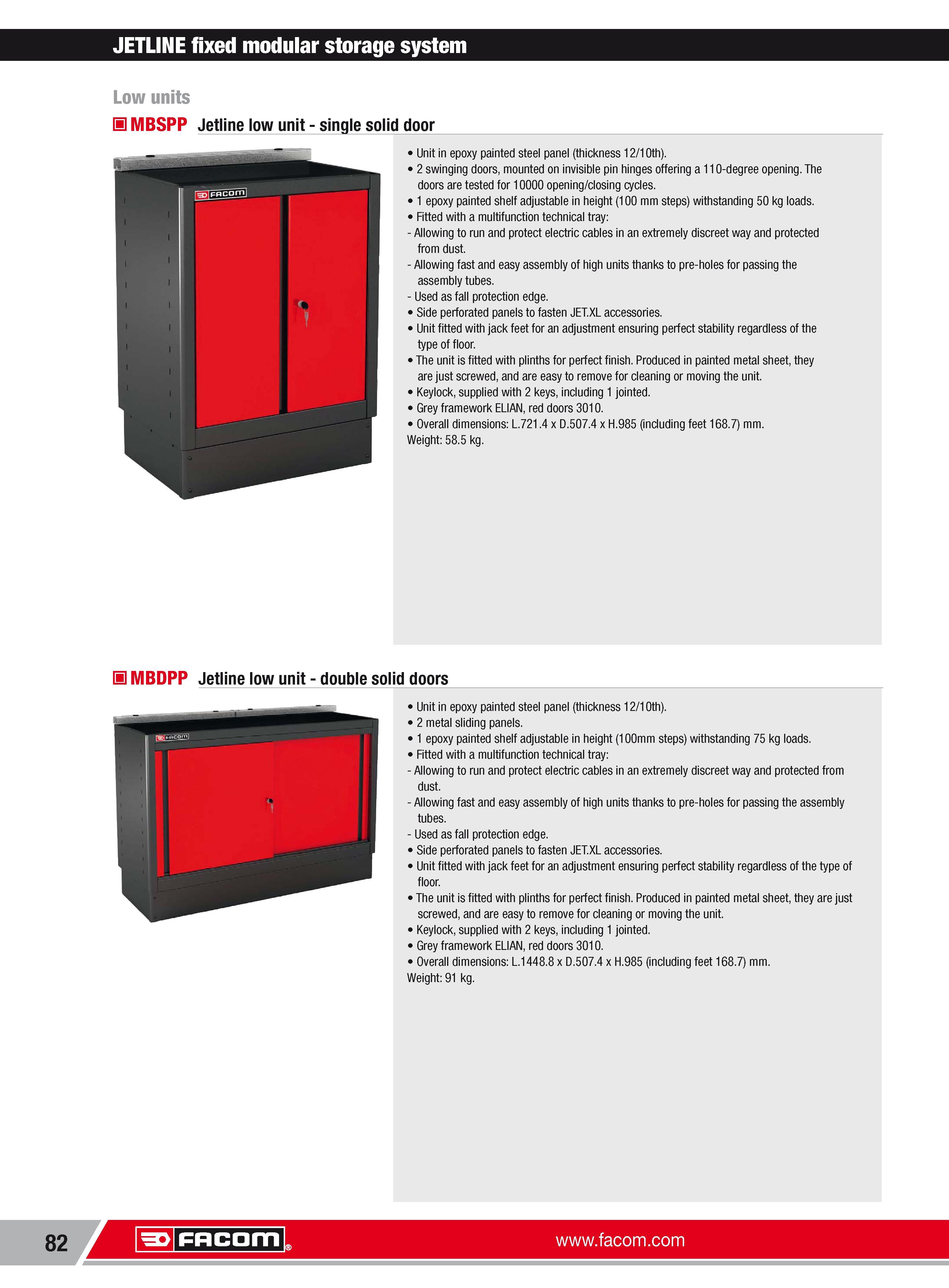

JETLINE fixed modular storage system Low units H MBSPP Jetline low unit single solid door Unit in epoxy painted steel panel (thickness 12 10th). 2 swinging doors mounted on invisible pin hinges offering a 110-degree opening. The doors are tested for 10000 opening closing cycles. 1 epoxy painted shelf adjustable in height (100 mm steps) withstanding 50 kg loads. Fitted with a multifunction technical tray Allowing to run and protect electric cables in an extremely discreet way and protected from dust. Allowing fast and easy assembly of high units thanks to pre-holes for passing the assembly tubes. Used as fall protection edge. Side perforated panels to fasten JET.XL accessories. Unit fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Keylock supplied with 2 keys including 1 jointed. Grey framework ELIAN red doors 3010. Overall dimensions L.721.4 x D.507.4 x H.985 (including feet 168.7) mm. Weight 58.5 kg. H MBDPP Jetline low unit double solid doors Unit in epoxy painted steel panel (thickness 12 10th). 2 metal sliding panels. 1 epoxy painted shelf adjustable in height (100mm steps) withstanding 75 kg loads. Fitted with a multifunction technical tray Allowing to run and protect electric cables in an extremely discreet way and protected from dust. Allowing fast and easy assembly of high units thanks to pre-holes for passing the assembly tubes. Used as fall protection edge. Side perforated panels to fasten JET.XL accessories. Unit fitted with jack feet for an adjustment ensuring perfect stability regardless of the type of floor. The unit is fitted with plinths for perfect finish. Produced in painted metal sheet they are just screwed and are easy to remove for cleaning or moving the unit. Keylock supplied with 2 keys including 1 jointed. Grey framework ELIAN red doors 3010. Overall dimensions L.1448.8 x D.507.4 x H.985 (including feet 168.7) mm. Weight 91 kg. 82 Facom
