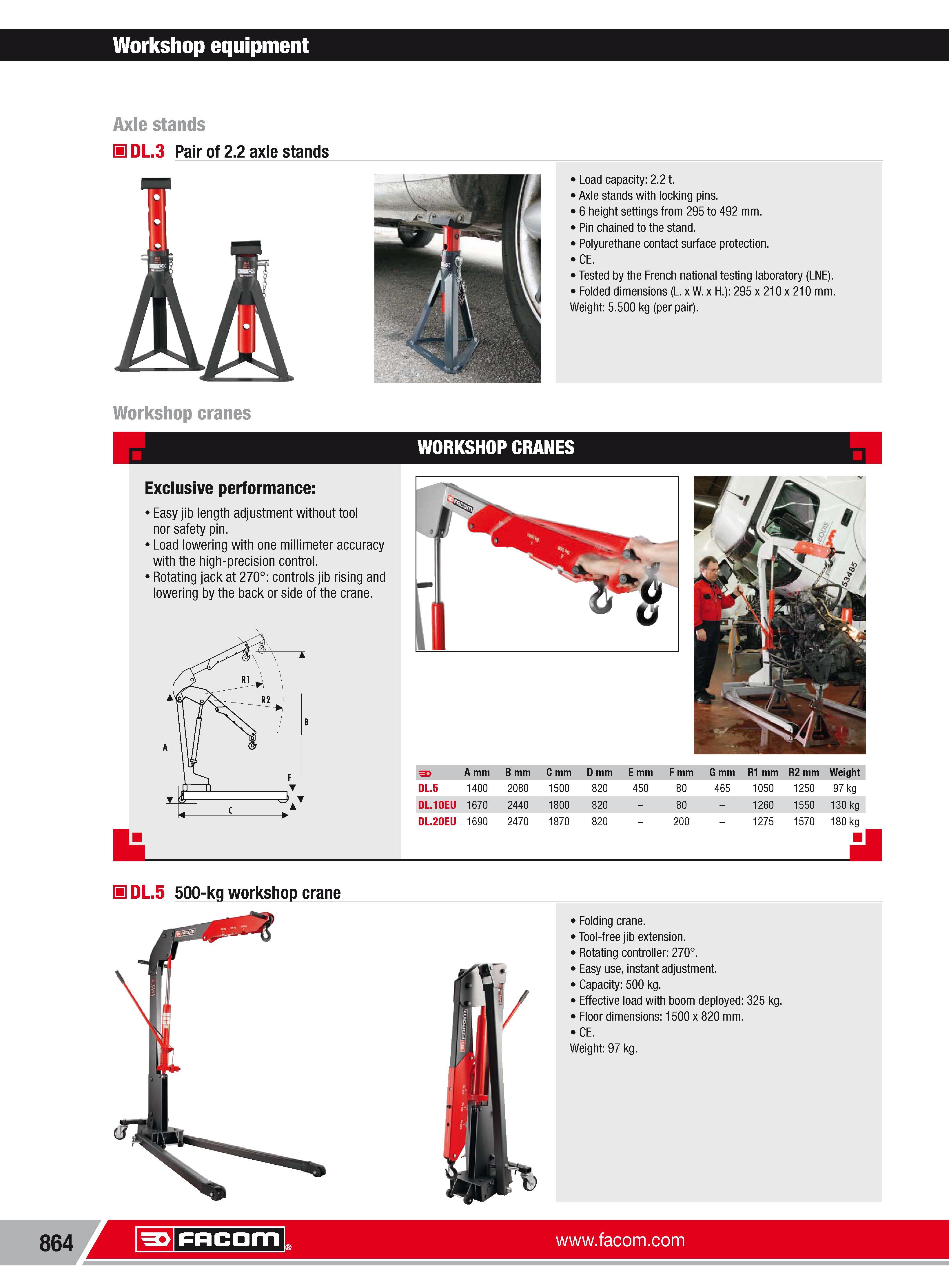

890 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.864

Каталог FACOM 2013 Инструмент Оборудование Стр. 864 0890 ENG Lab2u

Workshop equipment Axle stands H DL.3 Pair of 2.2 axle stands Load capacity 2.21. Axle stands with locking pins. 6 height settings from 295 to 492 mm. Pin chained to the stand. Polyurethane contact surface protection. CE. Tested by the French national testing laboratory (LNE). Folded dimensions (L.xW.x H.) 295 x210x210 mm. Weight 5.500 kg (per pair). Workshop cranes d WORKSHOP CRANES b Exclusive performance Easy jib length adjustment without tool norsafety pin. Load lowering with one millimeter accuracy with the high-precision control. Rotating jack at 270 controls jib rising and lowering by the back or side of the crane. F A mm B mm C mm D mm E mm F mm G mm R1 mm R2 mm Weight DL.5 1400 2080 1500 820 450 80 465 1050 1250 97 kg DL.10EU 1670 2440 1800 820 80 1260 1550 130 kg DL.20EU 1690 2470 1870 820 200 1275 1570 180 kg H DL.5 500-kg workshop crane 864 Facom Folding crane. Tool-free jib extension. Rotating controller 270. Easy use instant adjustment. Capacity 500 kg. Effective load with boom deployed 325 kg. Floor dimensions 1500 x 820 mm. CE. Weight 97 kg. Facom
