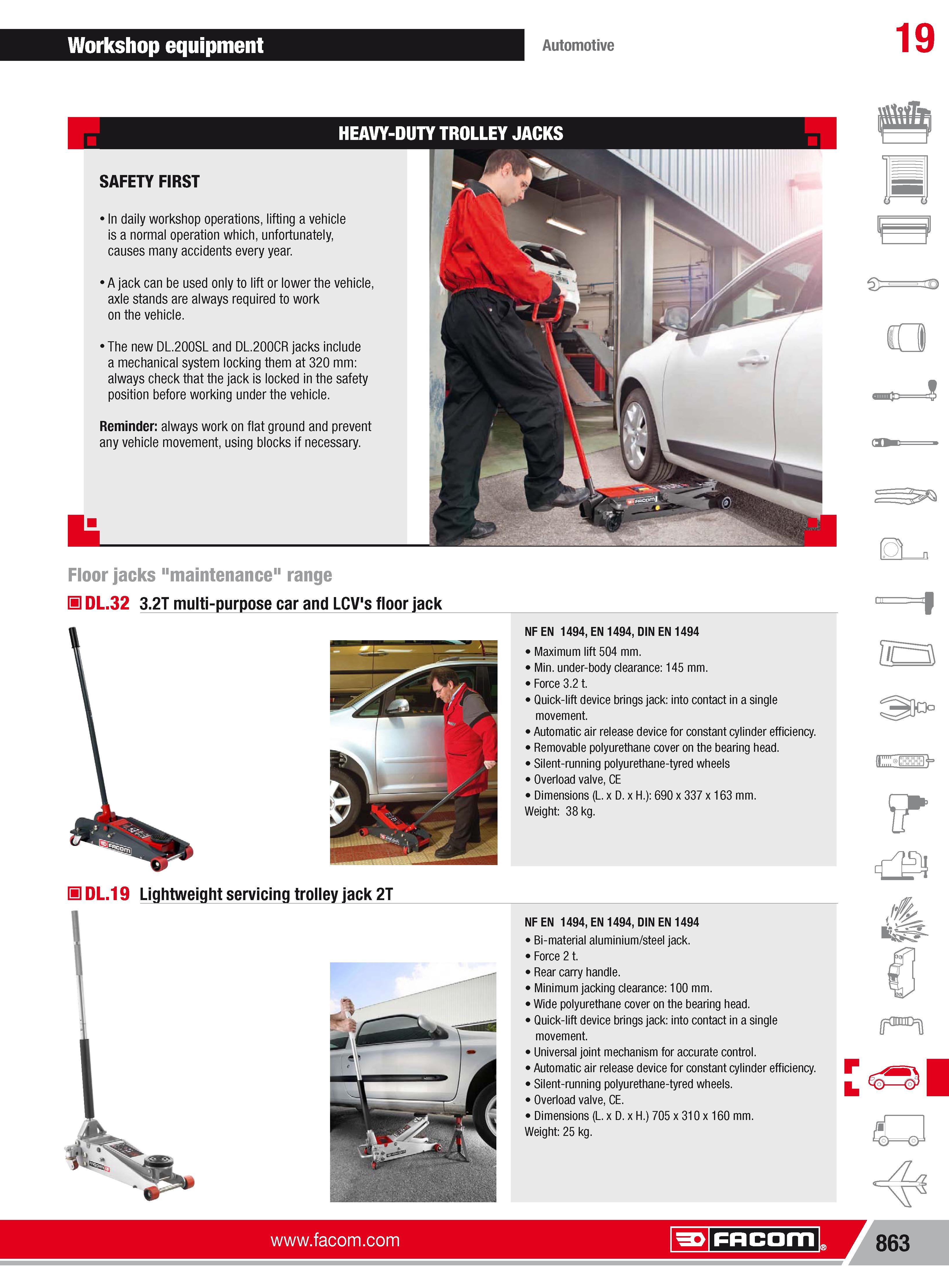

Workshop equipment Automotive 19 In daily workshop operations lifting a vehicle is a normal operation which unfortunately causes many accidents every year. A jack can be used only to lift or lower the vehicle axle stands are always required to work on the vehicle. The new DL.200SL and DL.200CR jacks include a mechanical system locking them at 320 mm always check that the jack is locked in the safety position before working underthe vehicle. Reminder always work on flat ground and prevent any vehicle movement using blocks if necessary. Floor jacks "maintenance" range H DL.32 3.2T multi-purpose car and LCV's floor jack NF EN 1494 EN 1494 DIN EN 1494 Maximum lift 504 mm. Min. under-body clearance 145 mm. Force 3.21. Quick-lift device brings jack into contact in a single movement. Automatic air release device for constant cylinder efficiency. Removable polyurethane cover on the bearing head. Silent-running polyurethane-tyred wheels Overload valve CE Dimensions (L. xD.x H.) 690 x337x163 mm. Weight 38 kg. H DL.19 Lightweight servicing trolley jack 2T NF EN 1494 EN 1494 DIN EN 1494 Bi-material aluminium steel jack. Force 21. Rear carry handle. Minimumjacking clearance 100 mm. Wide polyurethane cover on the bearing head. Quick-lift device brings jack into contact in a single movement. Universal joint mechanism for accurate control. Automatic air release device for constant cylinder efficiency. Silent-running polyurethane-tyred wheels. Overload valve CE. Dimensions (L. xD. xH.)705x310x 160 mm. Weight 25 kg. 3 Facom 863
