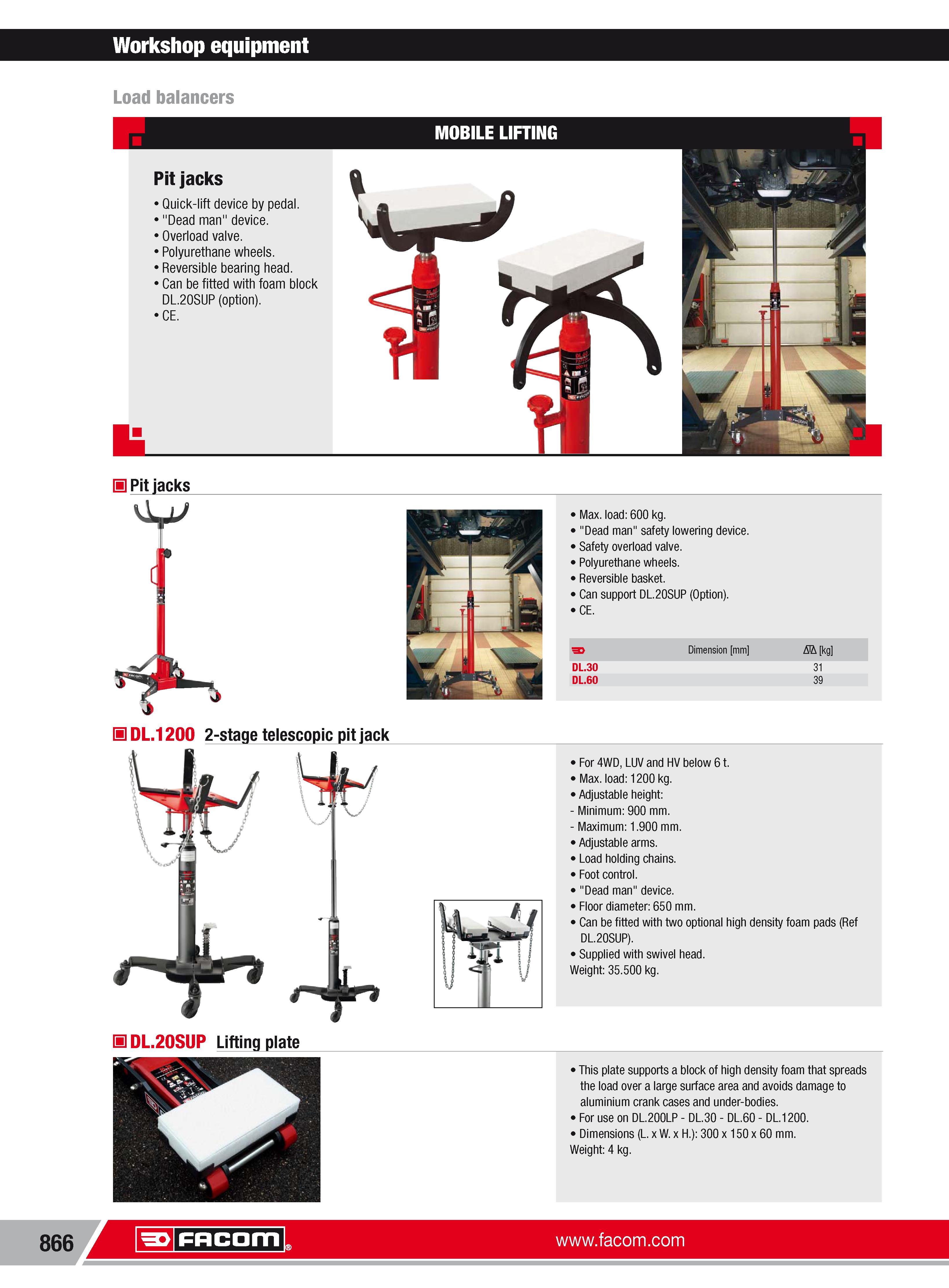

Workshop equipment Load balancers H Pit jacks H DL.1200 2-stage telescopic pit jack Max. load 600 kg. "Dead man" safety lowering device. Safety overload valve. Polyurethane wheels. Reversible basket. Can support DL.20SUP (Option). CE. Dimension mm M kg DL.30 31 DL.60 39 For 4WD LUV and HV below 61. Max. load 1200 kg. Adjustable height Minimum 900 mm. Maximum 1.900 mm. Adjustable arms. Load holding chains. Foot control. "Dead man" device. Floor diameter 650 mm. Can be fitted with two optional high density foam pads (Ref DL.20SUP). Supplied with swivel head. Weight 35.500 kg. DL.20SUP Lifting plate This plate supports a block of high density foam that spreads the load over a large surface area and avoids damage to aluminium crank cases and under-bodies. For use on DL.200LP DL.30 DL.60 DL.1200. Dimensions (L.xW.x H.) 300x 150x60 mm. Weight 4 kg. 866 Facom
