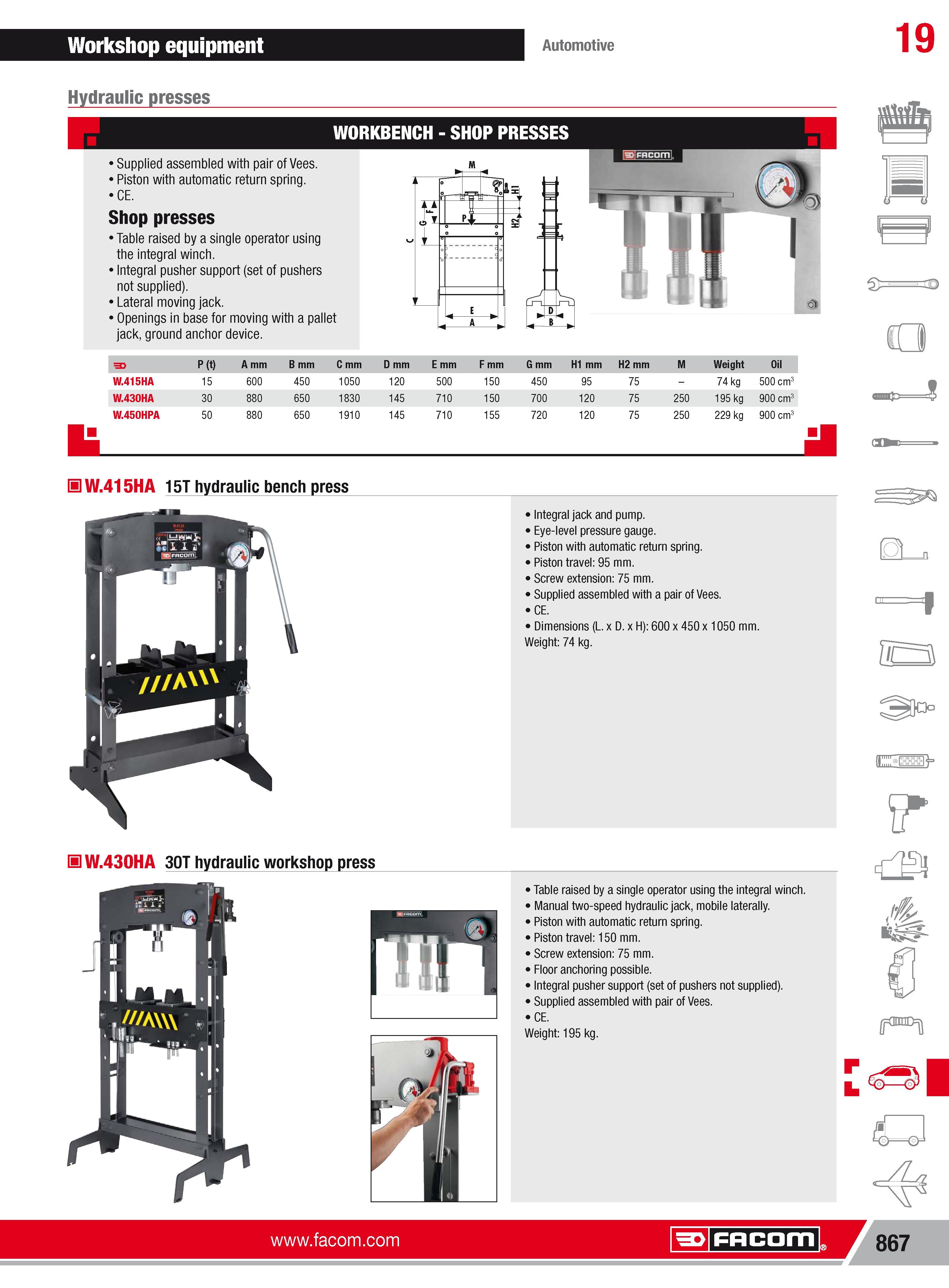

893 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.867

Каталог FACOM 2013 Инструмент Оборудование Стр. 867 0893 ENG Lab2u

Workshop equipment Automotive 19 Hydraulic presses d WORKBENCH SHOP PRESSES Supplied assembled with pair of Vees. Piston with automatic return spring. CE. Shop presses Table raised by a single operator using the integral winch. Integral pusher support (set of pushers not supplied). Lateral moving jack. Openings in base for moving with a pallet jack ground anchor device. X- &3E -L+ F P (t) A mm B mm C mm D mm E mm F mm G mm H1 mm H2 mm M Weight Oil W.415HA 15 600 450 1050 120 500 150 450 95 75 74 kg 500 cm3 W.430HA 30 880 650 1830 145 710 150 700 120 75 250 195 kg 900 cm3 W.450HPA 50 880 650 1910 145 710 155 720 120 75 250 229 kg 900 cm3 3 HW.415HA 15T hydraulic bench press W.430HA 30T hydraulic workshop press Integral jack and pump. Eye-level pressure gauge. Piston with automatic return spring. Piston travel 95 mm. Screw extension 75 mm. Supplied assembled with a pair of Vees. CE. Dimensions (L. xD.x H) 600 x 450 x 1050 mm. Weight 74 kg. Table raised by a single operator using the integral winch. Manual two-speed hydraulic jack mobile laterally. Piston with automatic return spring. Piston travel 150 mm. Screw extension 75 mm. Floor anchoring possible. Integral pusher support (set of pushers not supplied). Supplied assembled with pair of Vees. CE. Weight 195 kg. Facom 867 E A
