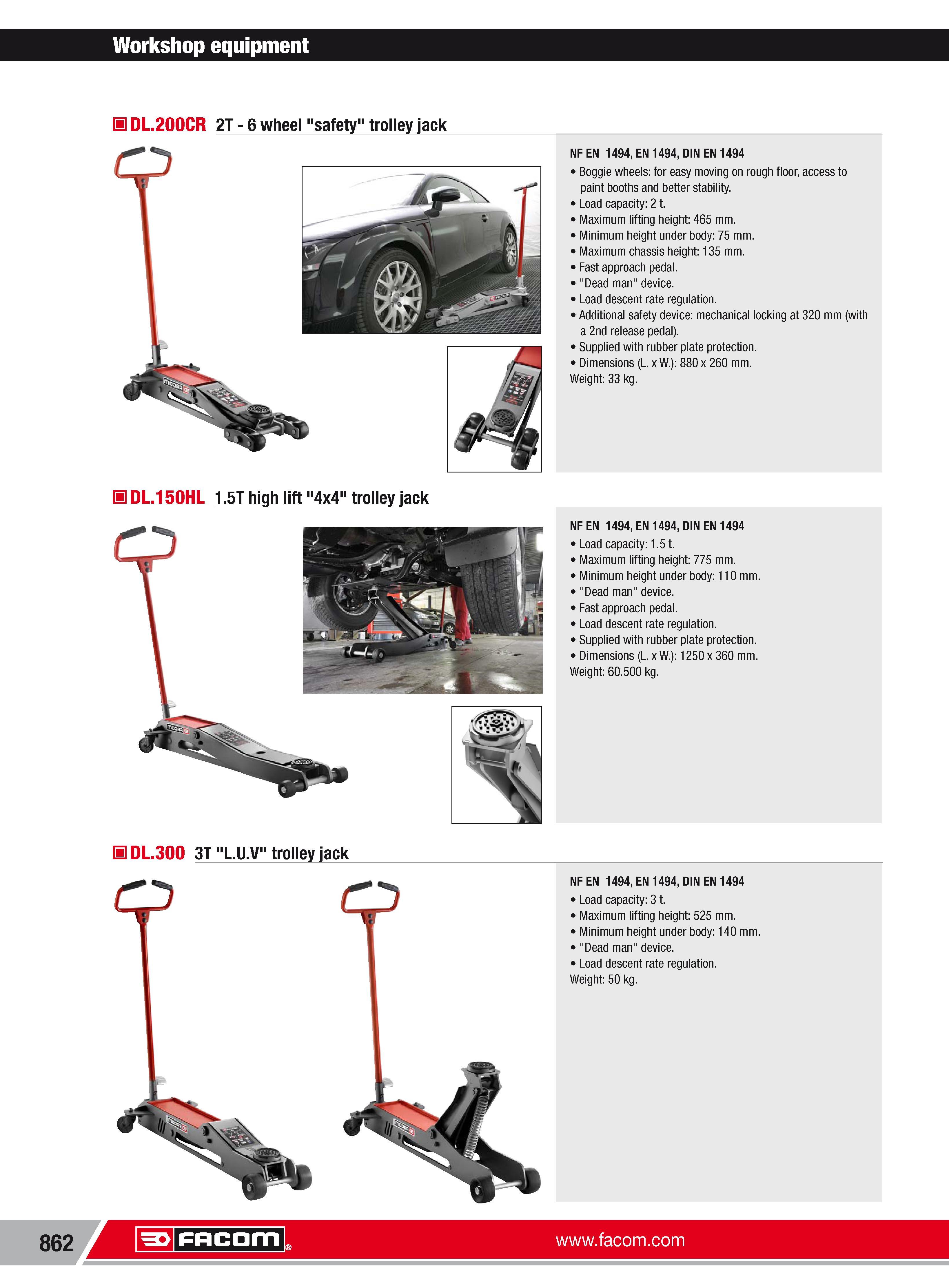

888 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.862

Каталог FACOM 2013 Инструмент Оборудование Стр. 862 0888 ENG Lab2u

Workshop equipment H DL.200CR 2T 6 wheel "safety" trolley jack NF EN 1494 EN 1494 DIN EN 1494 Boggie wheels for easy moving on rough floor access to paint booths and better stability. Load capacity 21. Maximum lifting height 465 mm. Minimum height under body 75 mm. Maximum chassis height 135 mm. Fast approach pedal. "Dead man" device. Load descent rate regulation. Additional safety device mechanical locking at 320 mm (with a 2nd release pedal). Supplied with rubber plate protection. Dimensions (L. x W.) 880 x 260 mm. Weight 33 kg. H DL.150HL 1.5T high lift "4x4" trolley jack NF EN 1494 EN 1494 DIN EN 1494 Load capacity 1.5t. Maximum lifting height 775 mm. Minimum height under body 110 mm. "Dead man" device. Fast approach pedal. Load descent rate regulation. Supplied with rubber plate protection. Dimensions (L. x W.) 1250 x 360 mm. Weight 60.500 kg. H DL.300 3T "L.U.V" trolley jack 862 NF EN 1494 EN 1494 DIN EN 1494 Load capacity 31. Maximum lifting height 525 mm. Minimum height under body 140 mm. "Dead man" device. Load descent rate regulation. Weight 50 kg. Facom
