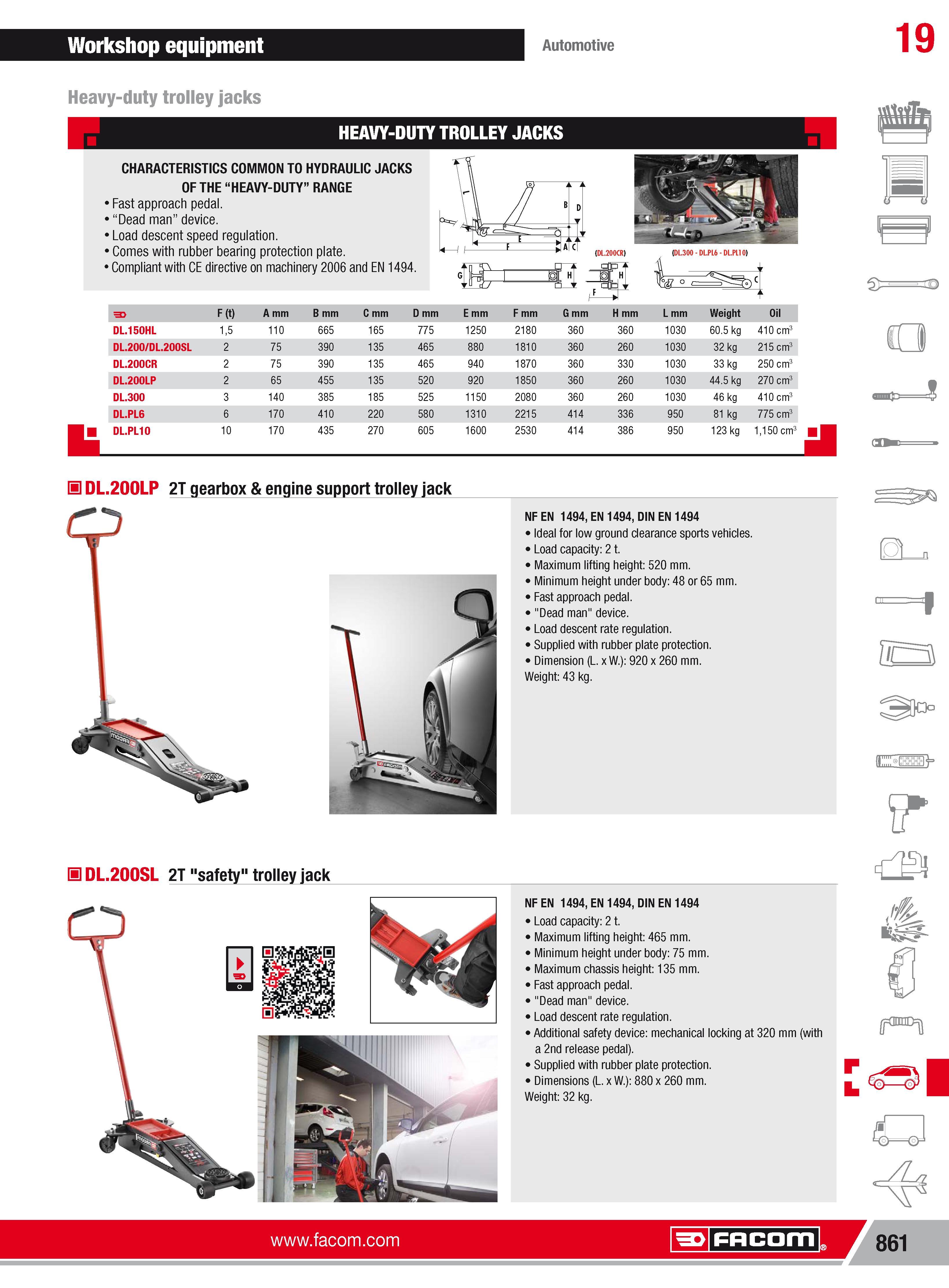

887 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.861

Каталог FACOM 2013 Инструмент Оборудование Стр. 861 0887 ENG Lab2u

Workshop equipment Automotive 19 Heavy-duty trolley jacks d HEAVY-DUTY TROLLEY JACKS CHARACTERISTICS COMMON TO HYDRAULIC JACKS OF THE HEAVY-DUTY RANGE 'Fast approach pedal. Dead man device. Load descent speed regulation. Comes with rubber bearing protection plate. 1 Compliant with CE directive on machinery 2006 and EN 1494. F F (t) A mm B mm C mm D mm E mm F mm G mm H mm L mm Weight Oil DL.150HL 15 110 665 165 775 1250 2180 360 360 1030 60.5 kg 410 cm3 DL.200 DL.200SL 2 75 390 135 465 880 1810 360 260 1030 32 kg 215 cm3 DL.200CR 2 75 390 135 465 940 1870 360 330 1030 33 kg 250 cm3 DL.200LP 2 65 455 135 520 920 1850 360 260 1030 44.5 kg 270 cm3 DL.300 3 140 385 185 525 1150 2080 360 260 1030 46 kg 410 cm3 DL.PL6 6 170 410 220 580 1310 2215 414 336 950 81 kg 775 cm3 DL.PL10 10 170 435 270 605 1600 2530 414 386 950 123 kg 1150 cm3 Ti cr v-ViV 0 3 H DL.200LP 2T gearbox & engine support trolley jack H DL.200SL 2T "safety" trolley jack NF EN 1494 EN 1494 DIN EN 1494 Ideal for low ground clearance sports vehicles. Load capacity 21. Maximum lifting height 520 mm. Minimum height under body 48 or 65 mm. Fast approach pedal. "Dead man" device. Load descent rate regulation. Supplied with rubber plate protection. Dimension (L. x W.) 920 x 260 mm. Weight 43 kg. NF EN 1494 EN 1494 DIN EN 1494 Load capacity 21. Maximum lifting height 465 mm. Minimum height under body 75 mm. Maximum chassis height 135 mm. Fast approach pedal. "Dead man" device. Load descent rate regulation. Additional safety device mechanical locking at 320 mm (with a 2nd release pedal). Supplied with rubber plate protection. Dimensions (L. x W.) 880 x 260 mm. Weight 32 kg. Facom 861
