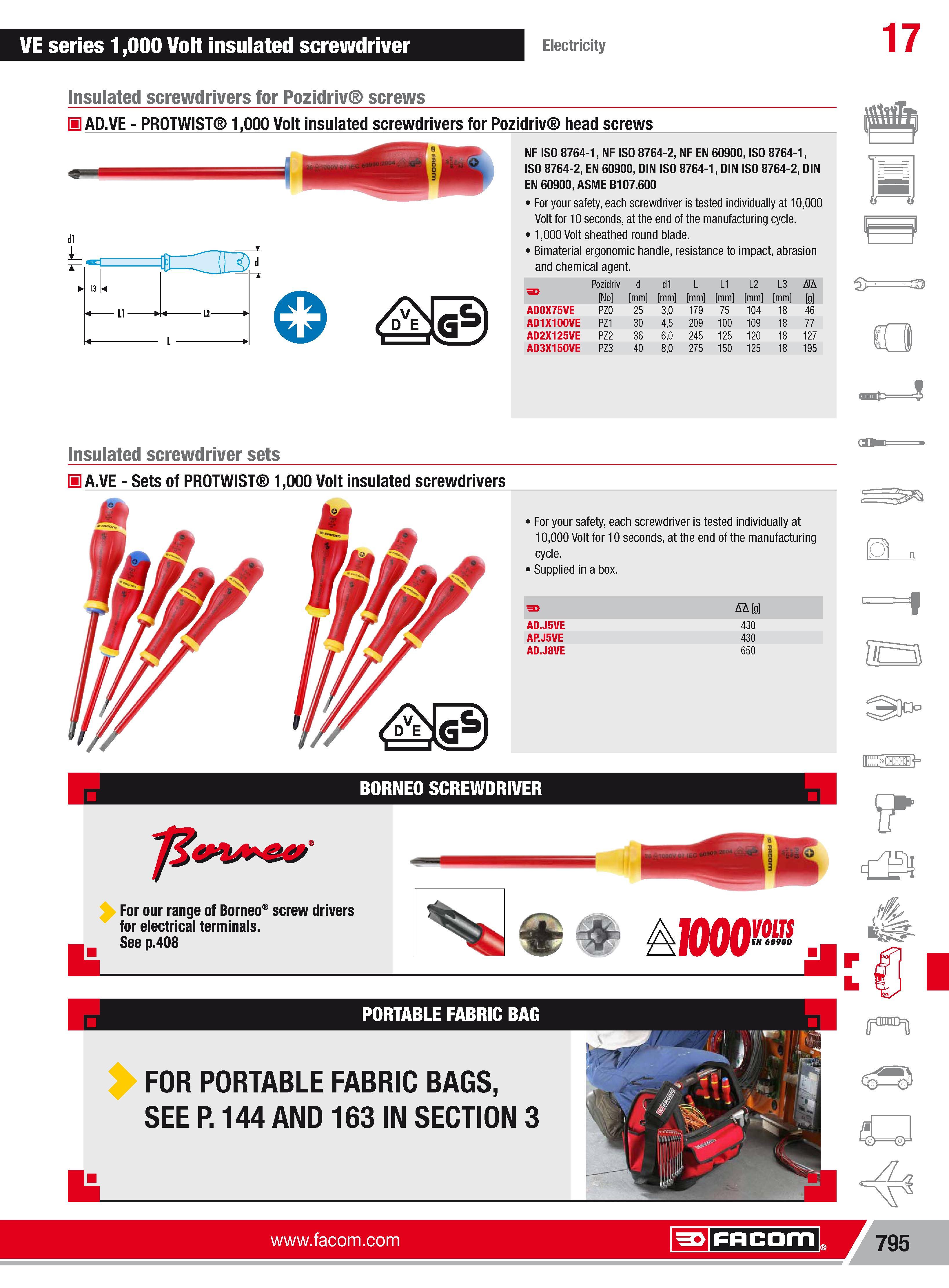

VE series 1000 Volt insulated screwdriver Electricity 17 Insulated screwdrivers for Pozidriv screws AD.VE PROTWIST 1000 Volt insulated screwdrivers for Pozidriv head screws NF ISO 8764-1 NF ISO 8764-2 NF EN 60900 ISO 8764-1 ISO 8764-2 EN 60900 DIN ISO 8764-1 DIN ISO 8764-2 DIN EN 60900 ASME B107.600 For your safety each screwdriver is tested individually at 10000 Volt for 10seconds at the end of the manufacturing cycle. 1000 Volt sheathed round blade. Bimaterial ergonomic handle resistance to impact abrasion and chemical agent. Pozidriv No d mm d1 mm L mm L1 mm L2 mm L3 mm Nh g AD0X75VE PZO Cn 30 179 75 104 18 46 AD1X100VE PZ1 30 45 209 100 109 18 77 AD2X125VE PZ2 36 60 245 125 120 18 127 AD3X150VE PZ3 40 80 275 150 125 18 195 Insulated screwdriver sets A.VE Sets of PROTWIST 1000 Volt insulated screwdrivers For your safety each screwdriver is tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Supplied in a box. Nh g AD.J5VE 430 AP.J5VE 430 AD.J8VE 650 BORNEO SCREWDRIVER For our range of Borneo screw drivers for electrical terminals. See p.408 FOR PORTABLE FABRIC BAGS SEE P. 144 AND 163 IN SECTION 3 Facom nooM' r i Facom 795
