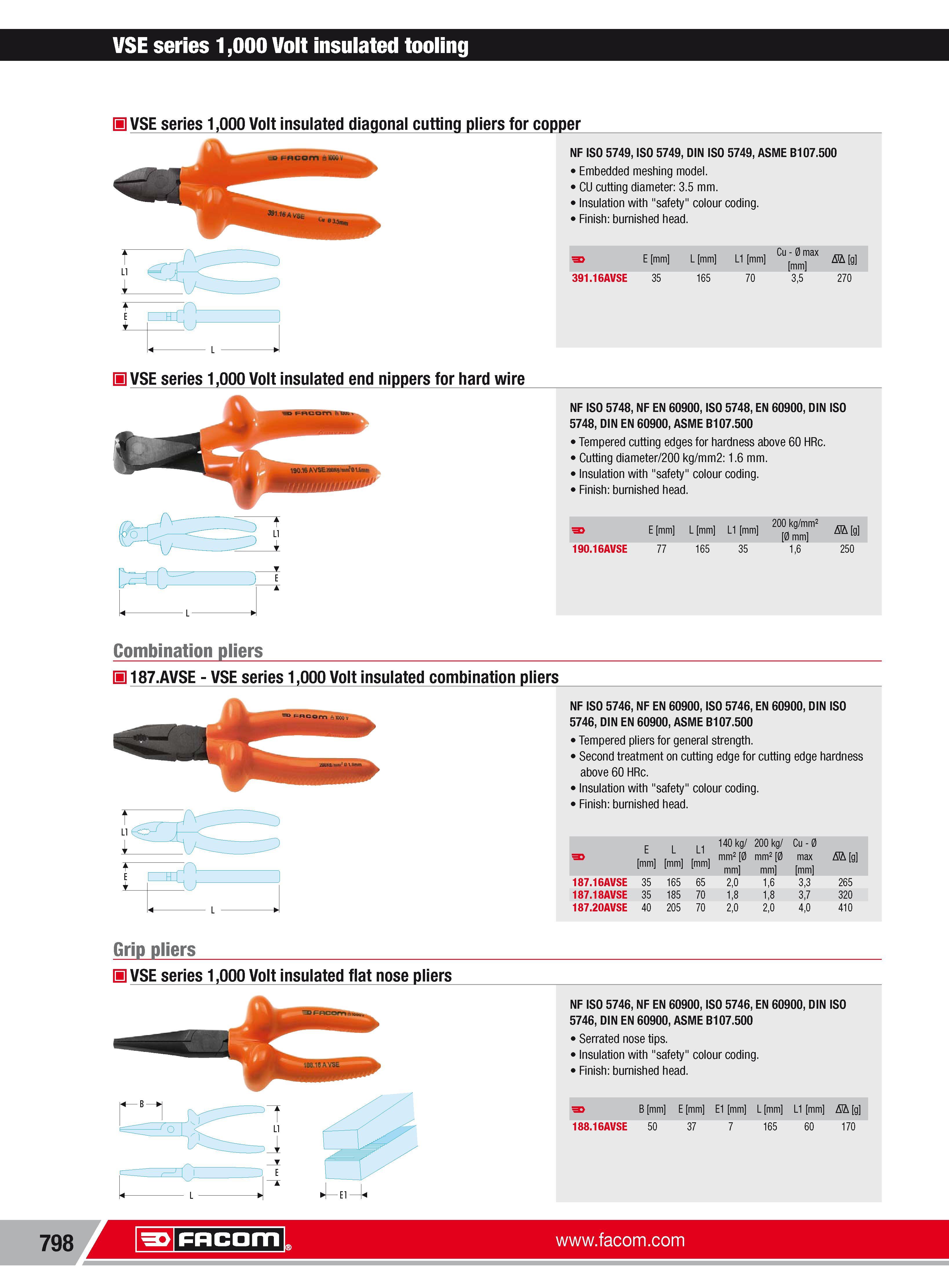

VSE series 1000 Volt insulated tooling H VSE series 1000 Volt insulated diagonal cutting pliers for copper NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Embedded meshing model. CU cutting diameter 3.5 mm. Insulation with "safety" colour coding. Finish burnished head. E mm L mm L1 mm C Ilf CD X g 391.16AVSE 35 165 70 35 270 H VSE series 1000 Volt insulated end nippers for hard wire NF ISO 5748 NF EN 60900 ISO 5748 EN 60900 DIN ISO 5748 DIN EN 60900 ASME B107.500 Tempered cutting edges for hardness above 60 HRc. Cutting diameter 200 kg mm2:1.6 mm. Insulation with "safety" colour coding. Finish burnished head. 190.16AVSE E mm L mm L1 mm mm 77 165 35 16 250 Combination pliers 187.AVSE VSE series 1000 Volt insulated combination pliers NF ISO 5746 NF EN 60900 ISO 5746 EN 60900 DIN ISO 5746 DIN EN 60900 ASME B107.500 Tempered pliers for general strength. Second treatment on cutting edge for cutting edge hardness above 60 HRc. Insulation with "safety" colour coding. Finish burnished head. E mm L mm L1 mm 140 kg mm2 0 mm 200 kg mm2 0 mm Cu 0 max mm Nh g 187.16AVSE 35 165 65 20 16 33 265 187.18AVSE 35 185 70 18 18 37 320 187.20AVSE 40 205 70 20 20 40 410 Grip pliers H VSE series 1000 Volt insulated flat nose pliers NF ISO 5746 NF EN 60900 ISO 5746 EN 60900 DIN ISO 5746 DIN EN 60900 ASME B107.500 Serrated nose tips. Insulation with "safety" colour coding. Finish burnished head. B mm E mm E1 mm L mm L1 mm AlA g 188.16AVSE 50 37 7 165 60 170 Facom
