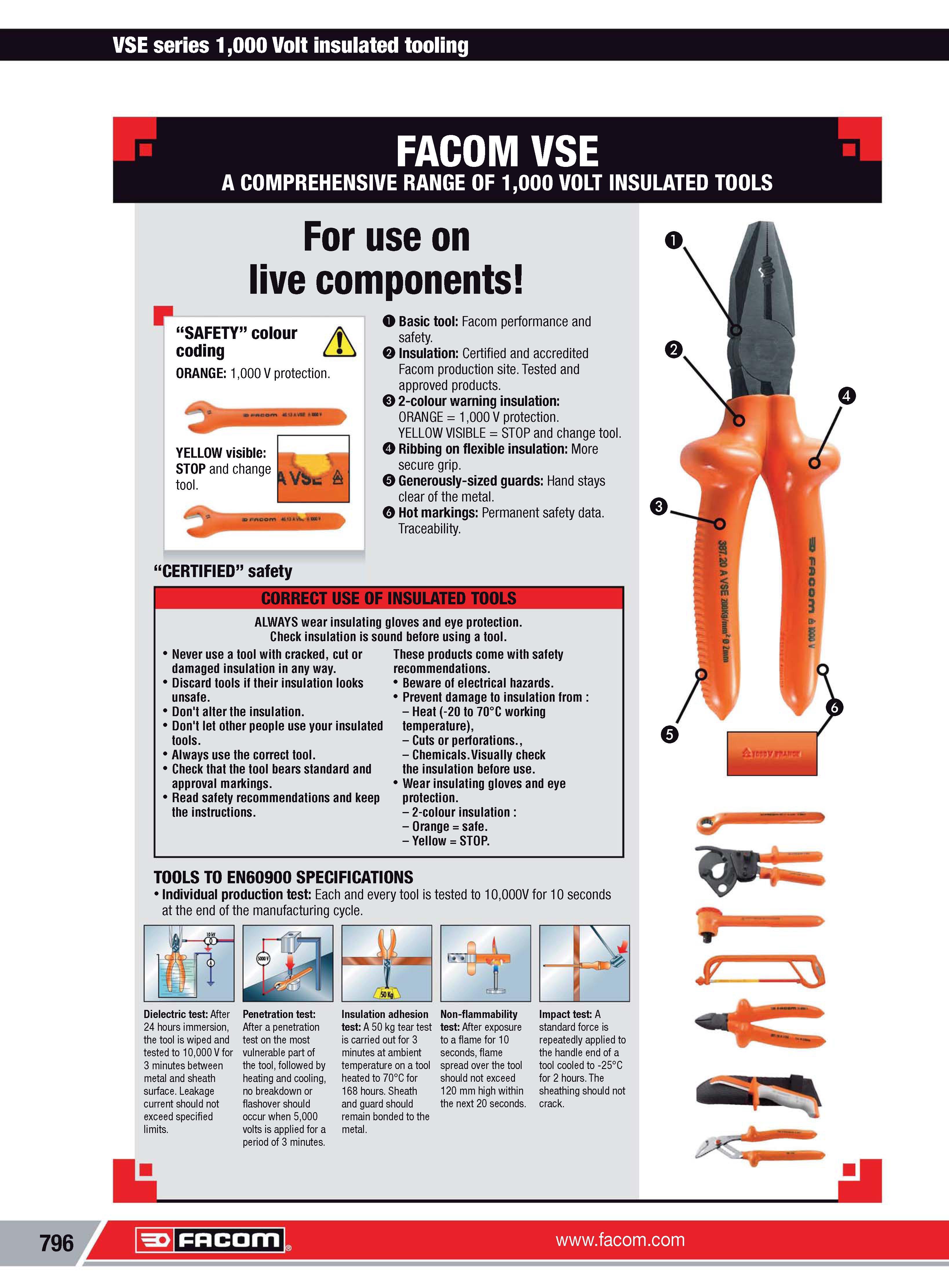

VSE series 1000 Volt insulated tooling FACOM VSE A COMPREHENSIVE RANGE OF 1000 VOLT INSULATED TOOLS For use on live components o Basic tool Facom performance and safety. 0 Insulation Certified and accredited Facom production site. Tested and approved products. Q 2-colour warning insulation ORANGE 1000 V protection. YELLOW VISIBLE STOP and change tool. O Ribbing on flexible insulation More secure grip. 0 Generously-sized guards Hand stays clear of the metal. Hot markings Permanent safety data. Traceability. CERTIFIED safety CORRECT USE OF INSULATED TOOLS ALWAYS wear insulating gloves and eye protection. Check insulation is sound before using a tool. Never use a tool with cracked cut or damaged insulation in any way. Discard tools if their insulation looks unsafe. Don't alter the insulation. Don't let other people use your insulated tools. Always use the correct tool. Check that the tool bears standard and approval markings. Read safety recommendations and keep the instructions. These products come with safety recommendations. Beware of electrical hazards. Prevent damage to insulation from Heat (-20 to 70C working temperature) -Cuts or perforations. Chemicals.Visually check the insulation before use. Wear insulating gloves and eye protection. 2-colour insulation Orange safe. Yellow STOP. TOOLS TO EN60900 SPECIFICATIONS Individual production test Each and every tool is tested to 10000V for 10 seconds at the end of the manufacturing cycle. 796 Dielectric test After 24 hours immersion the tool is wiped and tested to 10000 V for 3 minutes between metal and sheath surface. Leakage current should not exceed specified limits. Penetration test After a penetration test on the most vulnerable part of the tool followed by heating and cooling no breakdown or flashover should occur when 5000 volts is applied for a period of 3 minutes. Insulation adhesion test A 50 kg tear test is carried out for 3 minutes at ambient temperature on a tool heated to 70C for 168 hours. Sheath and guard should remain bonded to the metal. Non-flammability test After exposure to a flame for 10 seconds flame spread over the tool should not exceed 120 mm high within the next 20 seconds. Impact test A standard force is repeatedly applied to the handle end of a tool cooled to -25C for 2 hours. The sheathing should not crack. P jHsnn Facom
