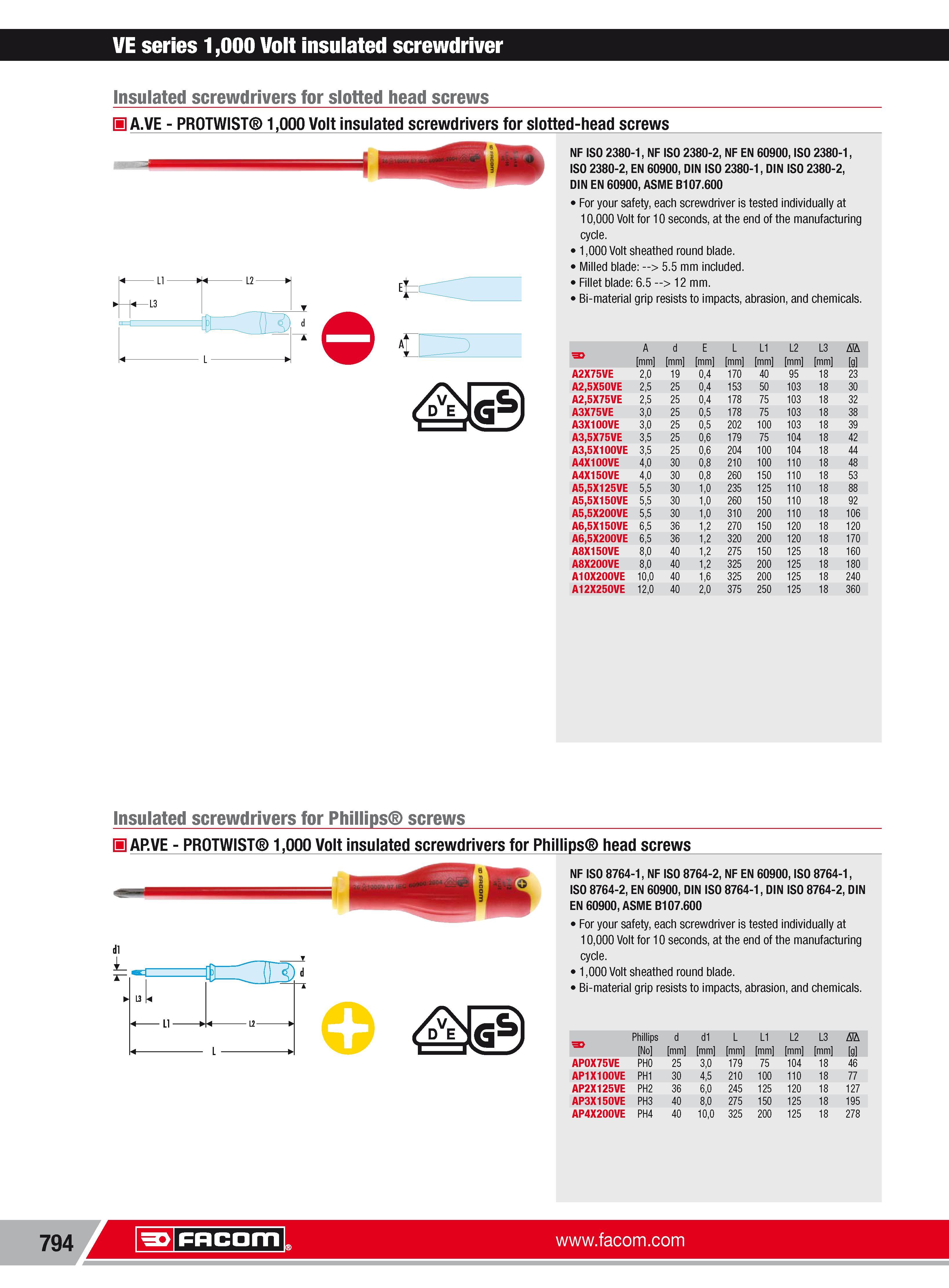

820 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.794

Каталог FACOM 2013 Инструмент Оборудование Стр. 794 0820 ENG Lab2u

VE series 1 Volt insulated screwdriver Insulated screwdrivers for slotted head screws A.VE PROTWIST 1000 Volt insulated screwdrivers for slotted-head screws NF ISO 2380-1 NF ISO 2380-2 NF EN 60900 ISO 2380-1 ISO 2380-2 EN 60900 DIN ISO 2380-1 DIN ISO 2380-2 DIN EN 60900 ASME B107.600 For your safety each screwdriver is tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. 1000 Volt sheathed round blade. Milled blade 5.5 mm included. Fillet blade 6.5 12 mm. Bi-material grip resists to impacts abrasion and chemicals. -Ll -rt -L3 o A d E L L1 L2 L3 Nh mm mm mm mm mm mm mm g A2X75VE 20 19 04 170 40 95 18 23 A25X50VE 25 25 04 153 50 103 18 30 A25X75VE 25 25 04 178 75 103 18 32 A3X75VE 30 25 05 178 75 103 18 38 A3X100VE 30 25 05 202 100 103 18 39 A35X75VE 35 25 06 179 75 104 18 42 A35X100VE 35 25 06 204 100 104 18 44 A4X100VE 40 30 08 210 100 110 18 48 A4X150VE 40 30 08 260 150 110 18 53 A55X125VE 55 30 10 235 125 110 18 88 A55X150VE 55 30 10 260 150 110 18 92 A55X200VE 55 30 10 310 200 110 18 106 A65X150VE 65 36 12 270 150 120 18 120 A65X200VE 65 36 12 320 200 120 18 170 A8X150VE 80 40 12 275 150 125 18 160 A8X200VE 80 40 12 325 200 125 18 180 A10X200VE 100 40 16 325 200 125 18 240 A12X250VE 120 40 20 375 250 125 18 360 Insulated screwdrivers for Phillips screws AP.VE PROTWIST 1000 Volt insulated screwdrivers for Phillips head screws NF ISO 8764-1 NF ISO 8764-2 NF EN 60900 ISO 8764-1 ISO 8764-2 EN 60900 DIN ISO 8764-1 DIN ISO 8764-2 DIN EN 60900 ASME B107.600 For your safety each screwdriver is tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. 1000 Volt sheathed round blade. Bi-material grip resists to impacts abrasion and chemicals. O Phillips No d mm d1 mm L mm L1 mm L2 mm L3 mm AIA g AP0X75VE PH0 25 30 179 75 104 18 46 AP1X100VE PH1 30 45 210 100 110 18 77 AP2X125VE PH2 36 60 245 125 120 18 127 AP3X150VE PH3 40 80 275 150 125 18 195 AP4X200VE PH4 40 100 325 200 125 18 278 794 Facom
