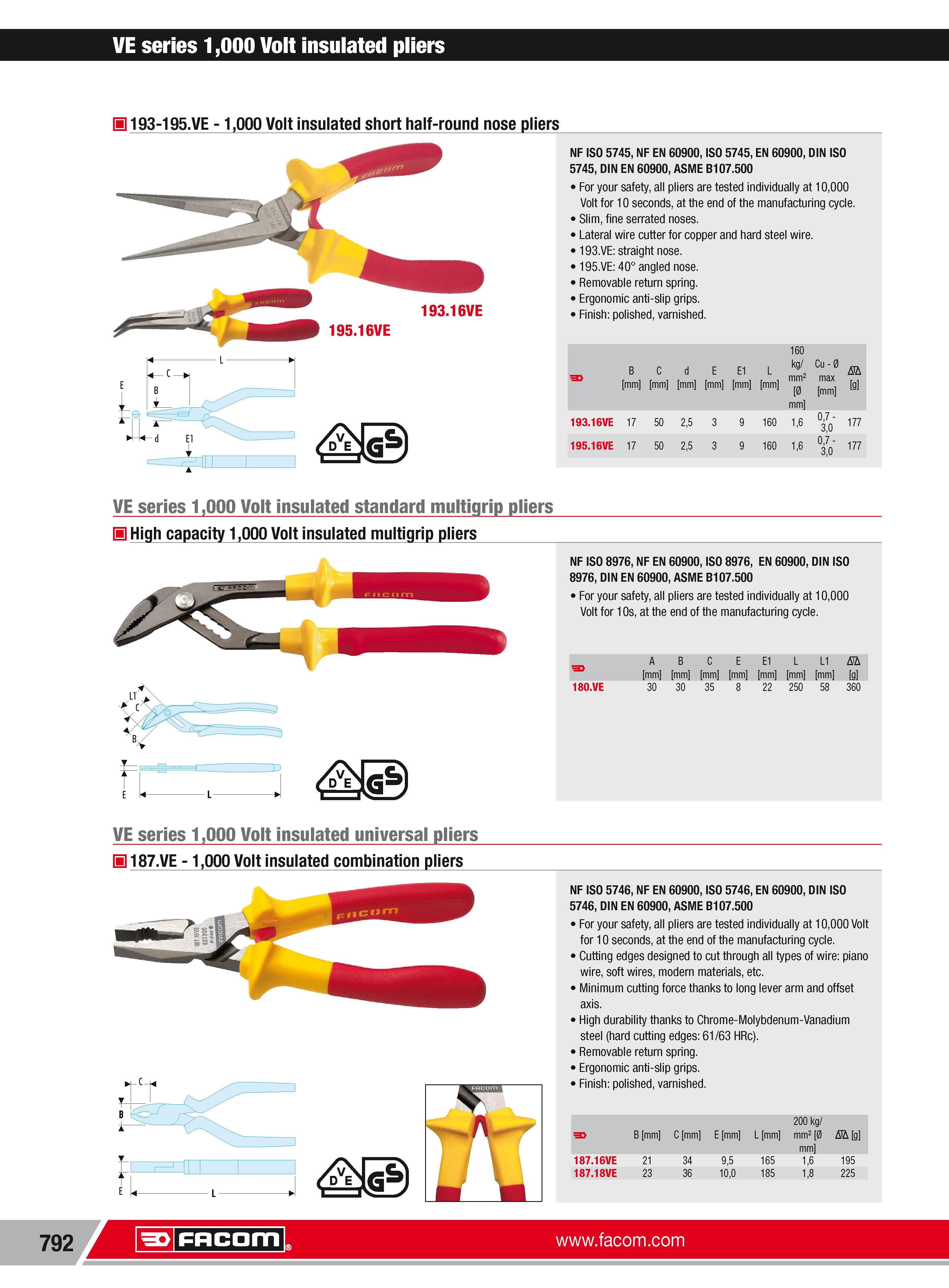

818 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.792

Каталог FACOM 2013 Инструмент Оборудование Стр. 792 0818 ENG Lab2u

VE series 1 Volt insulated pliers 193-195.VE 1000 Volt insulated short half-round nose pliers 193.16VE 195.16VE NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Slim fine serrated noses. Lateral wire cutter for copper and hard steel wire. 193.VE straight nose. 195.VE 40 angled nose. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. 3 B mm C mm d mm E mm E1 mm L mm 160 kg mm2 0 Cu 0 max mm Nh g mm 193.16VE 17 50 25 3 9 160 16 07- 30 177 195.16VE 17 50 25 3 9 160 16 07- 30 177 VE series 1000 Volt insulated standard multigrip pliers H High capacity 1000 Volt insulated multigrip pliers DVE NF ISO 8976 NF EN 60900 ISO 8976 EN 60900 DIN ISO 8976 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10s at the end of the manufacturing cycle. 180.VE A B C E E1 L L1 IA mm mm mm mm mm mm mm g 30 30 35 8 22 250 58 360 VE series 1000 Volt insulated universal pliers 187.VE 1000 Volt insulated combination pliers NF ISO 5746 NF EN 60900 ISO 5746 EN 60900 DIN ISO 5746 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Cutting edges designed to cut through all types of wire piano wire soft wires modern materials etc. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. 200 kg 3 B mm C mm E mm L mm mm2 0 mm Nh g 187.16VE 21 34 95 165 16 195 187.18VE 23 36 100 185 18 225 792 Facom
