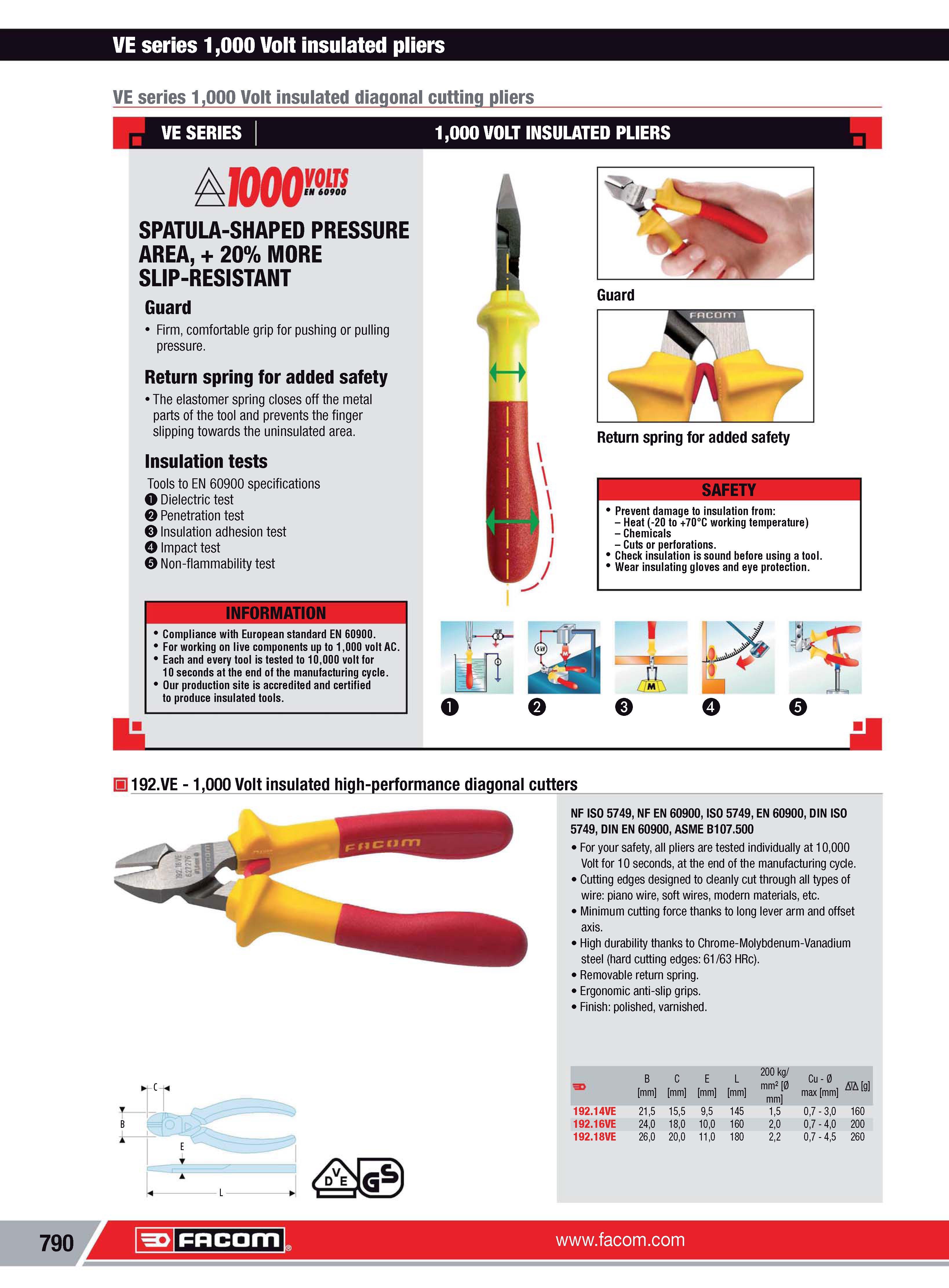

816 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.790

Каталог FACOM 2013 Инструмент Оборудование Стр. 790 0816 ENG Lab2u

VE series 1 Volt insulated pliers VE series 1000 Volt insulated diagonal cutting pliers VE SERIES 1000 VOLT INSULATED PLIERS VOITS IN 60900 SPATULA-SHAPED PRESSURE AREA + 20% MORE SLIP-RESISTANT Guard Firm comfortable grip for pushing or pulling pressure. Return spring for added safety The elastomer spring closes off the metal parts of the tool and prevents the finger slipping towards the uninsulated area. Insulation tests Tools to EN 60900 specifications O Dielectric test 0 Penetration test 0 Insulation adhesion test Impact test 0 Non-flammabilitytest INFORMATION Compliance with European standard EN 60900. For working on live components up to 1000 volt AC. Each and every tool is tested to 10000 volt for 10seconds at the end of the manufacturing cycle. Our production site is accredited and certified to produce insulated tools. Guard Return spring for added safety SAFETY Prevent damage to insulation from Heat (-20 to +70C working temperature) Chemicals Cuts or perforations. Check insulation is sound before using a tool. Wear insulating gloves and eye protection. 192.VE 1000 Volt insulated high-performance diagonal cutters NF ISO 5749 NF EN 60900 ISO 5749 EN 60900 DIN ISO 5749 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Cutting edges designed to cleanly cut through all types of wire piano wire soft wires modern materials etc. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. T B C B mm C mm E mm L mm 200 kg mm2 0 mm Cu 0 max mm A'A g 192.14VE 215 155 95 145 15 07 30 160 192.16VE 240 180 100 160 20 07 40 200 192.18VE 260 200 110 180 22 07 45 260 790 Facom L
