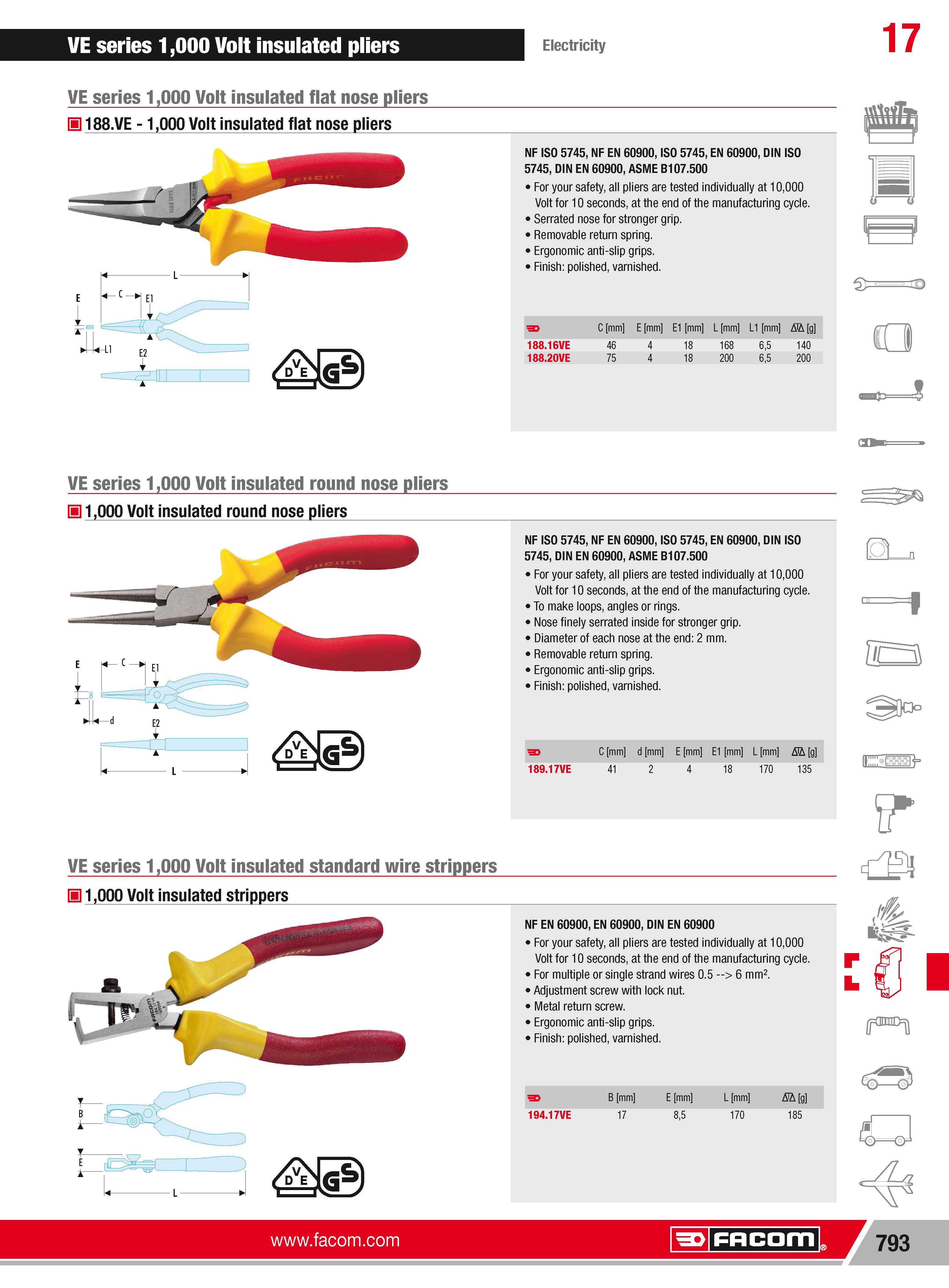

VE series 1000 Volt insulated pliers Electricity 17 VE series 1000 Volt insulated flat nose pliers 188.VE 1000 Volt insulated flat nose pliers NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Serrated nose for stronger grip. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. C mm E mm E1 mm L mm L1 mm Nh g 188.16VE 46 4 18 168 65 140 188.20VE 75 4 18 200 65 200 VE series 1000 Volt insulated round nose pliers H 1000 Volt insulated round nose pliers c El J r NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. To make loops angles or rings. Nose finely serrated inside for stronger grip. Diameter of each nose at the end 2 mm. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. DVE VE series 1000 Volt insulated standard wire strippers H 1000 Volt insulated strippers NF EN 60900 EN 60900 DIN EN 60900 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. For multiple or single strand wires 0.5 6 mm2. Adjustment screw with lock nut. Metal return screw. Ergonomic anti-slip grips. Finish polished varnished. 194.17VE B mm 17 E mm 85 L mm 170 Nh g 185 C mm d mm E mm E1 mm L mm Nh g 189.17VE 41 2 4 18 170 135 Facom 793
