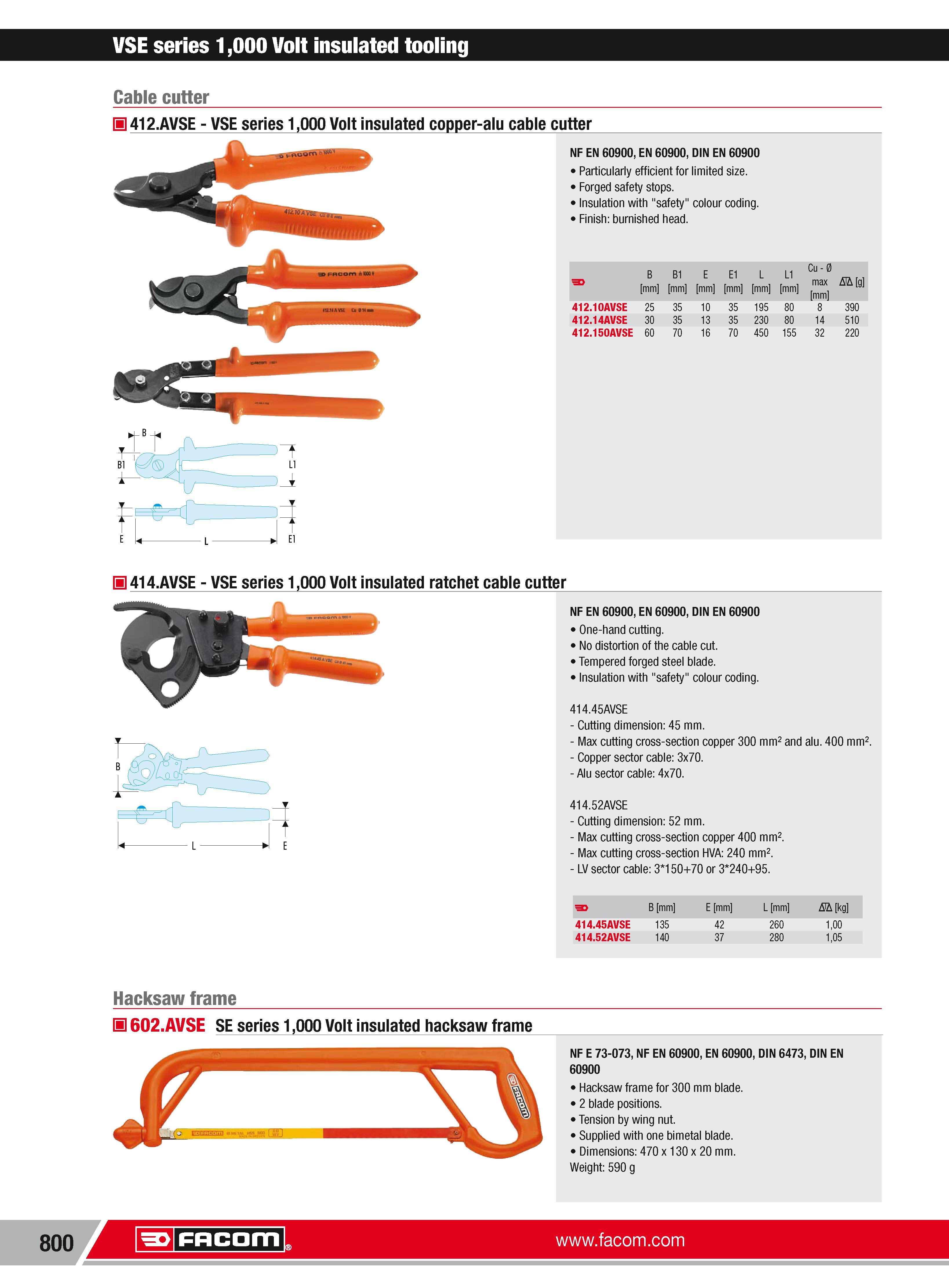

VSE series 1000 Volt insulated tooling Cable cutter 412.AVSE VSE series 1000 Volt insulated copper-alu cable cutter NF EN 60900 EN 60900 DIN EN 60900 Particularly efficient for limited size. Forged safety stops. Insulation with "safety" colour coding. Finish burnished head. B mm B1 mm E mm E1 mm L mm L1 mm Cu 0 max mm Nh g 412.10AVSE 25 35 10 35 195 80 8 390 412.14AVSE 30 35 13 35 230 80 14 510 412.150AVSE 60 70 16 70 450 155 32 220 H 414.AVSE VSE series 1000 Volt insulated ratchet cable cutter NF EN 60900 EN 60900 DIN EN 60900 One-hand cutting. No distortion of the cable cut. Tempered forged steel blade. Insulation with "safety" colour coding. 414.45AVSE Cutting dimension 45 mm. Max cutting cross-section copper 300 mm2 and alu. 400 mm2. Copper sector cable 3x70. Alu sector cable 4x70. 414.52AVSE Cutting dimension 52 mm. Max cutting cross-section copper 400 mm2. Max cutting cross-section HVA 240 mm2. LV sector cable 3 150+70 or 3 240+95. B mm E mm L mm Nh kg 414.45AVSE 135 42 260 100 414.52AVSE 140 37 280 105 L E Hacksaw frame H 602.AVSE SE series 1000 Volt insulated hacksaw frame NF E 73-073 NF EN 60900 EN 60900 DIN 6473 DIN EN 60900 Hacksaw frame for 300 mm blade. 2 blade positions. Tension by wing nut. Supplied with one bimetal blade. Dimensions 470 x130x20 mm. Weight 590 g 800 Facom
