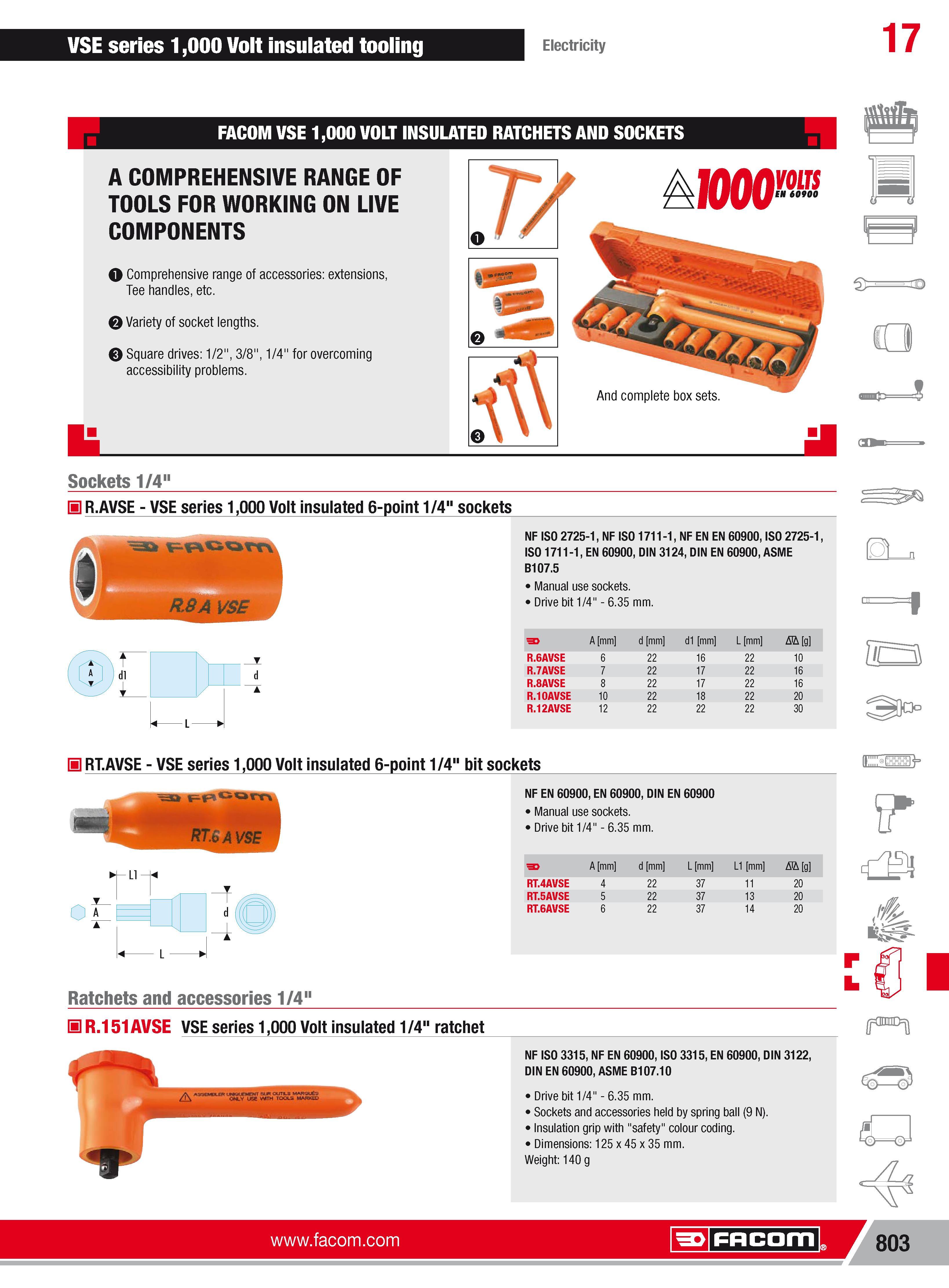

VSE series 1000 Volt insulated tooling Electricity 17 FACOM VSE 1000 VOLT INSULATED RATCHETS AND SOCKETS A COMPREHENSIVE RANGE OF TOOLS FOR WORKING ON LIVE COMPONENTS O Comprehensive range of accessories extensions Tee handles etc. 0 Variety of socket lengths. 0 Square drives 1/2" 3/8" 1/4" for overcoming accessibility problems. 1000m flM 60900 And complete box sets. Sockets 1/4" H R.AVSE VSE series 1000 Volt insulated 6-point 1/4" sockets NF ISO 2725-1 NF ISO 1711-1 NF EN EN 60900 ISO 2725-1 ISO 1711-1 EN 60900 DIN 3124 DIN EN 60900 ASME B107.5 Manual use sockets. Drive bit 1/4" 6.35 mm. A mm d mm d1 mm L mm AIA g R.6AVSE 6 22 16 22 10 R.7AVSE 7 22 17 22 16 R.8AVSE 8 22 17 22 16 R.10AVSE 10 22 18 22 20 R.12AVSE 12 22 22 22 30 H RT.AVSE VSE series 1000 Volt insulated 6-point 1/4" bit sockets RU A VSE NF EN 60900 EN 60900 DIN EN 60900 Manual use sockets. Drive bit 1/4" 6.35 mm. A mm d mm L mm L1 mm Nh g RT.4AVSE 4 22 37 11 20 RT.5AVSE 5 22 37 13 20 RT.6AVSE 6 22 37 14 20 Ratchets and accessories 1/4" H R.151AVSE VSE series 1000 Volt insulated 1/4" ratchet NF ISO 3315 NF EN 60900 ISO 3315 EN 60900 DIN 3122 DIN EN 60900 ASME B107.10 Drive bit 1/4" 6.35 mm. Sockets and accessories held by spring ball (9 N). Insulation grip with "safety" colour coding. Dimensions 125x45x35 mm. Weight 140 g Facom 803
