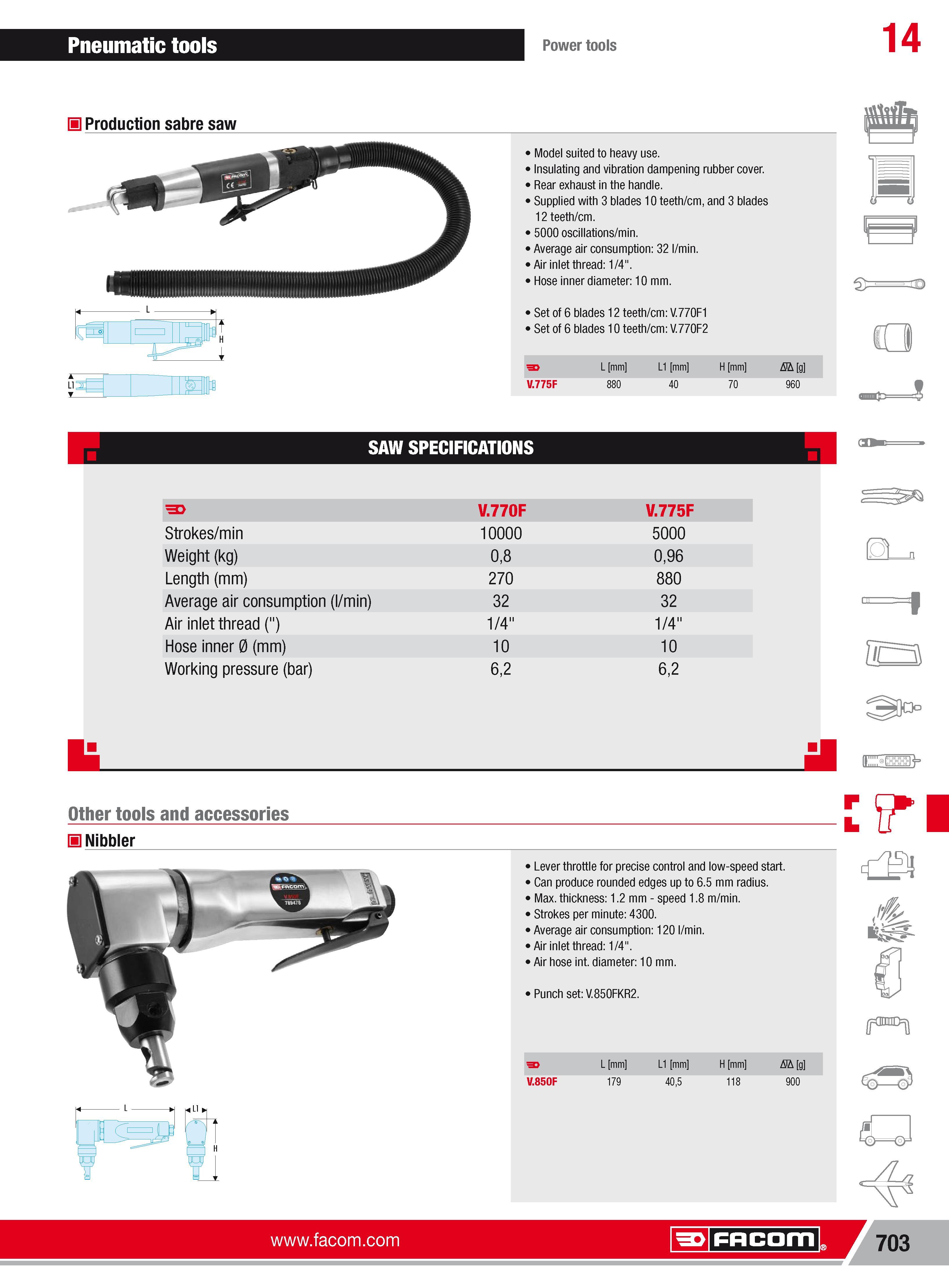

Pneumatic tools Power tools 14 H Production sabre saw Model suited to heavy use. Insulating and vibration dampening rubber cover. Rear exhaust in the handle. Supplied with 3 blades 10 teeth cm and 3 blades 12teeth cm. 5000 oscillations min. Average air consumption 32 l min. Air inlet thread 1/4". Hose inner diameter 10 mm. Set of 6 blades 12 teeth cm V.770F1 Set of 6 blades 10 teeth cm V.770F2 L mm V.775F L1 mm 40 H mm 70 Nh g 960 SAW SPECIFICATIONS F V.770F V.775F Strokes min 10000 5000 Weight (kg) 08 096 Length (mm) 270 880 Average air consumption (l min) 32 32 Air inlet thread () 1 4 1 4 Hose inner 0 (mm) 10 10 Working pressure (bar) 62 62 Other tools and accessories Nibbler Facom Lever throttle for precise control and low-speed start. Can produce rounded edges up to 6.5 mm radius. Max. thickness 1.2 mm- speed 1.8 m min. Strokes per minute 4300. Average air consumption 120 l min. Air inlet thread 1/4". Air hose int. diameter 10 mm. Punch set V.850FKR2. Facom L mm L1 mm H mm Nh g V.850F 179 405 118 900 t(c) 703
