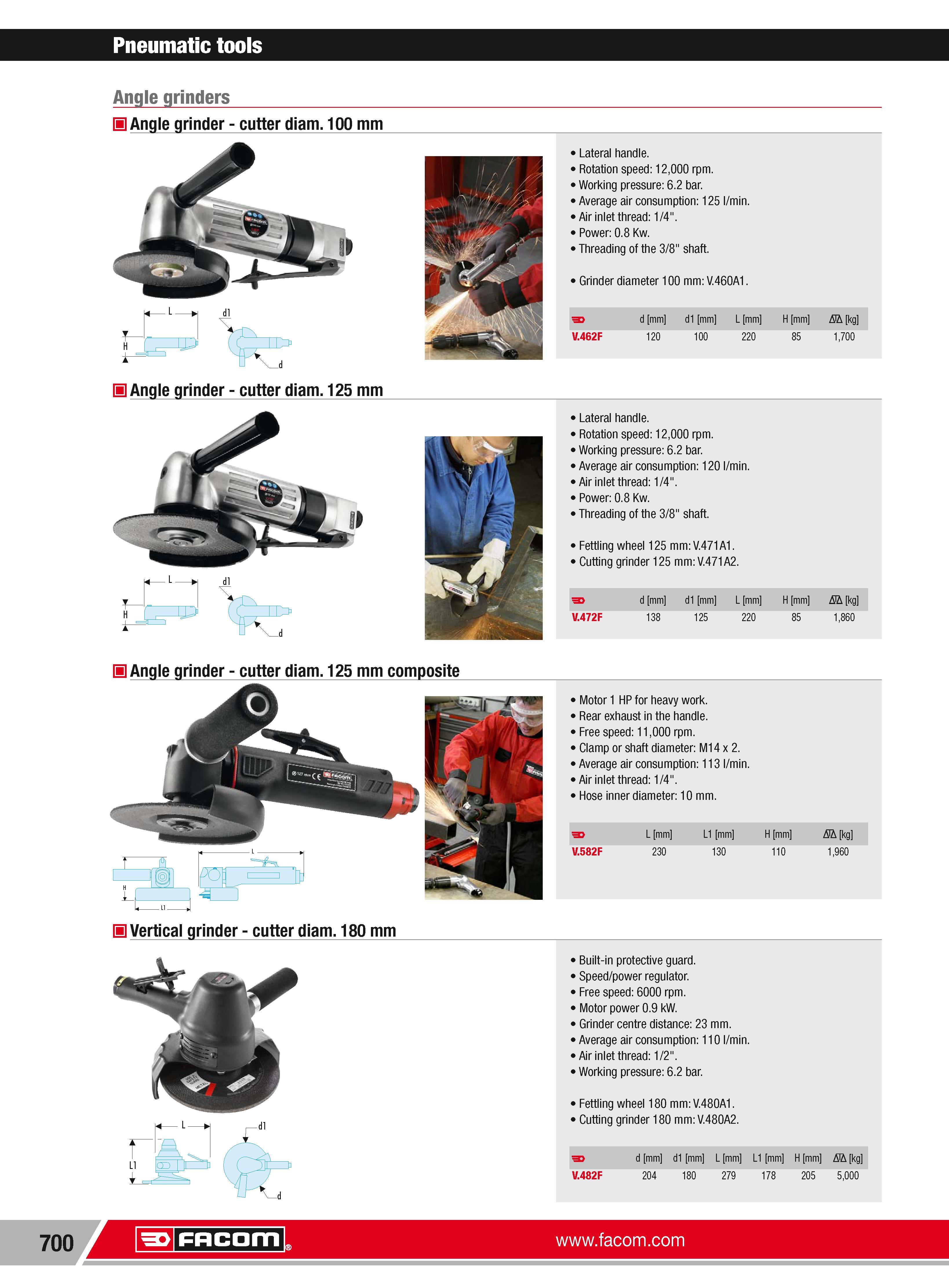

Pneumatic tools Angle grinders H Angle grinder cutter diam. 100 mm Lateral handle. Rotation speed 12000 rpm. Working pressure 6.2 bar. Average air consumption 125 l min. Air inlet thread 1/4". Power 0.8 Kw. Threading of the 3/8" shaft. Grinder diameter 100 mm V.460A1. d mm d1 mm L mm H mm Nh kg V.462F 120 100 220 85 1700 H Angle grinder cutter diam. 125 mm Lateral handle. Rotation speed 12000 rpm. Working pressure 6.2 bar. Average air consumption 120 l min. Air inlet thread 1/4". Power 0.8 Kw. Threading of the 3/8" shaft. Fettling wheel 125 mm:V.471A1. Cutting grinder 125 mm:V.471A2. V.472F d mm 138 d1 mm 125 L mm 220 H mm 85 Nh kg 1860 H Angle grinder cutter diam. 125 mm composite Motor 1 HP for heavy work. Rear exhaust in the handle. Free speed 11000 rpm. Clamp or shaft diameter M14x2. Average air consumption 113 l min. Air inlet thread 1/4". Hose innerdiameter 10 mm. L mm L1 mm H mm Nh kg V.582F 230 130 110 1960 H Vertical grinder cutter diam. 180 mm L t Ll Qj l Built-in protective guard. Speed power regulator. Free speed 6000 rpm. Motor power 0.9 kW. Grinder centre distance 23 mm. Average air consumption 110 l min. Air inlet thread 1 2". Working pressure 6.2 bar. Fettling wheel 180 mm V.480A1. Cutting grinder 180 mm:V.480A2. ( ( 3 b 3 d mm d1 mm L mm L1 mm H mm Nh kg V.482F 204 180 279 178 205 5000 700 Facom
