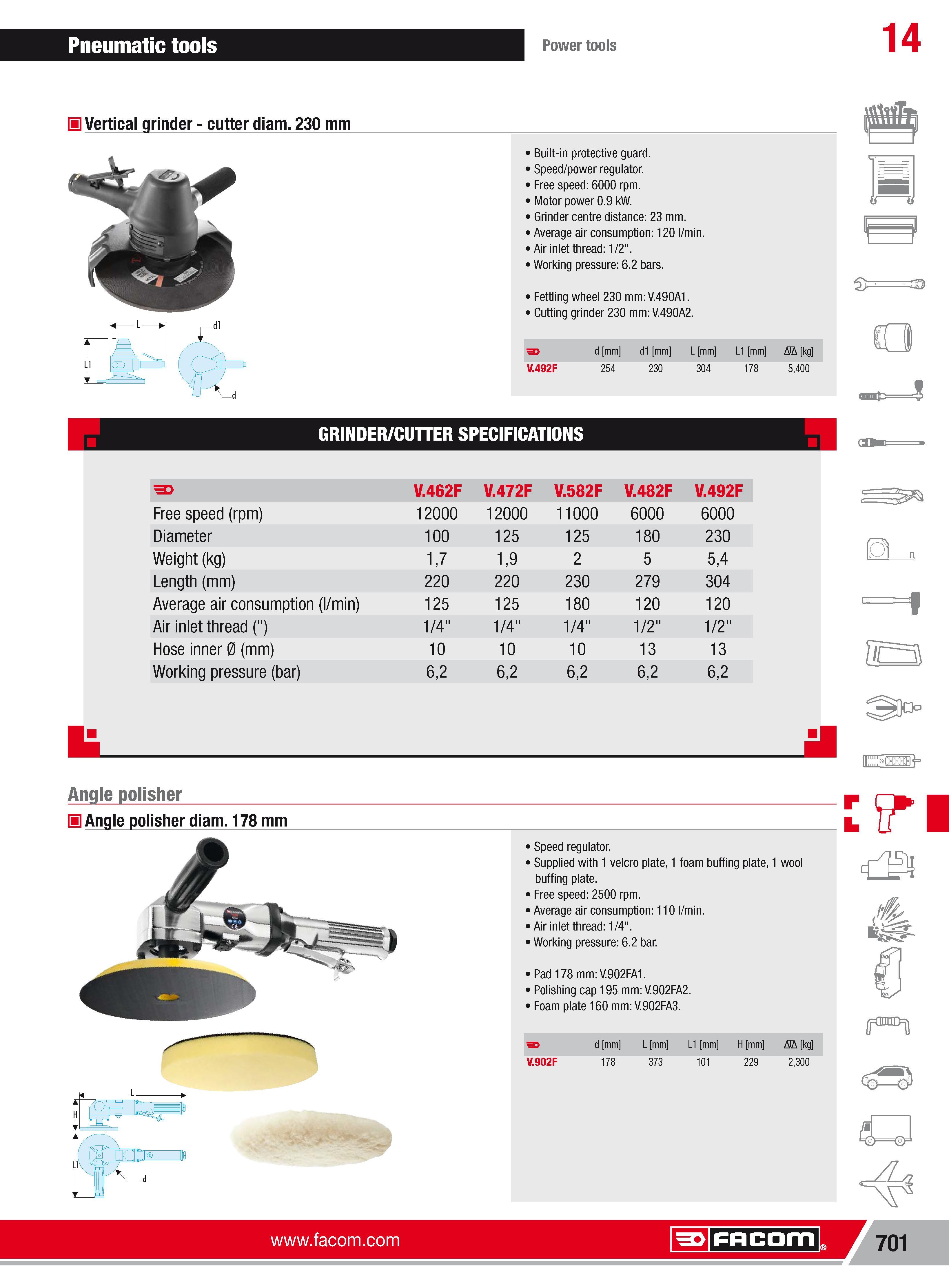

Pneumatic tools Power tools 14 H Vertical grinder cutter diam. 230 mm L t A LI CD Built-in protective guard. Speed power regulator. Free speed 6000 rpm. Motor power 0.9 kW. Grinder centre distance 23 mm. Average air consumption 120 l min. Air inlet thread 1 2". Working pressure 6.2 bars. Fettling wheel 230 mm V.490A1. Cutting grinder 230 mm V.490A2. 3 d mm d1 mm L mm L1 mm Nh kg V.492F 254 230 304 178 5400 d GRINDER CUTTER SPECIFICATIONS b F V.462F V.472F V.582F V.482F V.492F Free speed (rpm) 12000 12000 11000 6000 6000 Diameter 100 125 125 180 230 Weight (kg) 17 19 2 5 54 Length (mm) 220 220 230 279 304 Average air consumption (l min) 125 125 180 120 120 Air inlet thread () 1 4 1 4 1 4 1 2 1 2 Hose inner 0 (mm) 10 10 10 13 13 Working pressure (bar) 62 62 62 62 62 Angle polisher H Angle polisher diam. 178 mm Speed regulator. Supplied with 1 velcro plate 1 foam buffing plate 1 wool buffing plate. Free speed 2500 rpm. Average air consumption 110 l min. Air inlet thread 1/4". Working pressure 6.2 bar. Pad178mm:V.902FA1. Polishing cap 195 mm V.902FA2. Foam plate 160 mm V.902FA3. V.902F d mm 178 L mm 373 L1 mm 101 H mm 229 Nh kg 2300 Facom 701
