728 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.702

Каталог FACOM 2013 Инструмент Оборудование Стр. 702 0728 ENG Lab2u

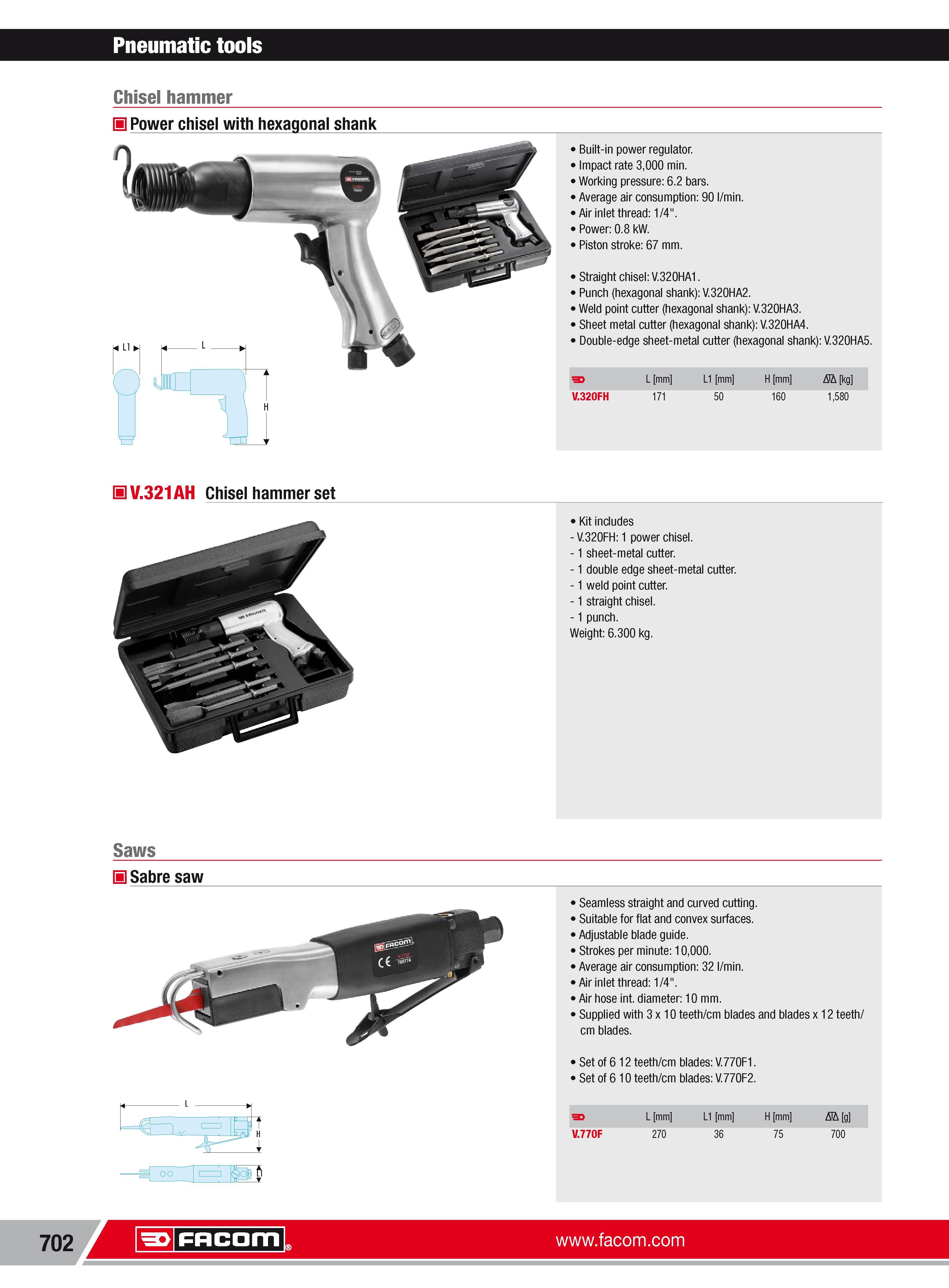

Pneumatic tools Chisel hammer H Power chisel with hexagonal shank Built-in power regulator. Impact rate 3000 min. Working pressure 6.2 bars. Average air consumption 90 l min. Air inlet thread 1/4". Power 0.8 kW. Piston stroke 67 mm. Straight chisel V.320HA1. Punch (hexagonal shank) V.320HA2. Weld point cutter (hexagonal shank) V.320HA3. Sheet metal cutter (hexagonal shank) V.320HA4. Double-edge sheet-metal cutter (hexagonal shank) V.320HA5. L mm L1 mm H mm AA kg V.320FH 171 50 160 1580 HV.321AH Chisel hammer set Kit includes -V.320FH 1 powerchisel. -1 sheet-metal cutter. -1 double edge sheet-metal cutter. -1 weld point cutter. -1 straight chisel. -1 punch. Weight 6.300 kg. Saws H Sabre saw Seamless straight and curved cutting. Suitable for flat and convex surfaces. Adjustable blade guide. Strokes per minute 10000. Average air consumption 32 l min. Air inlet thread 1/4". Air hose int. diameter 10 mm. Supplied with 3x10 teeth cm blades and blades x 12 teeth cm blades. Setof612 teeth cm blades V.770F1. Setof610 teeth cm blades V.770F2. L mm L1 mm H mm AA g V.770F 270 36 75 700 702 Facom
