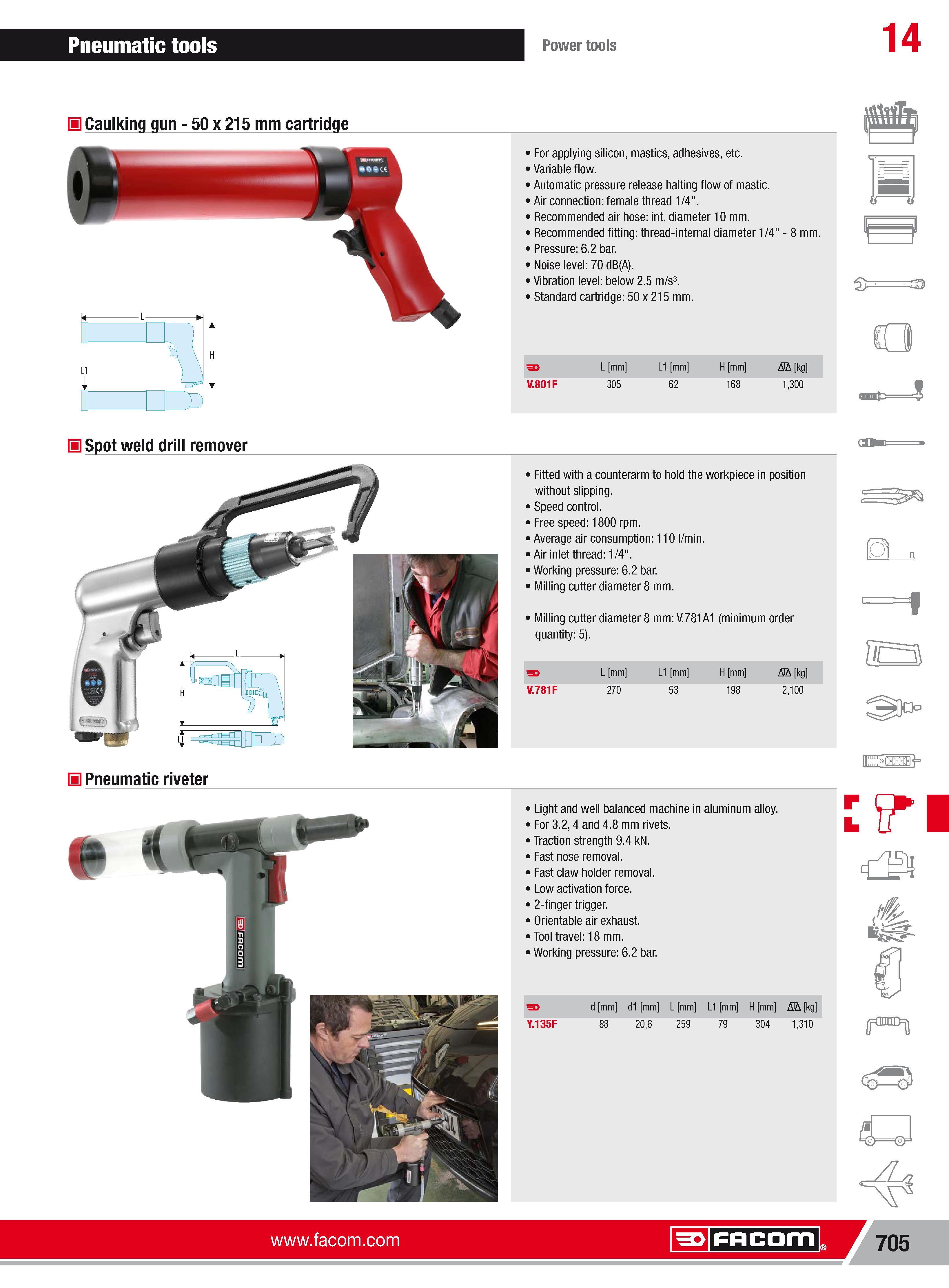

Pneumatic tools Power tools 14 H Caulking gun 50 x 215 mm cartridge LI ft mp H Spot weld drill remover For applying silicon mastics adhesives etc. Variable flow. Automatic pressure release halting flow of mastic. Air connection female thread 1/4". Recommended air hose int. diameterlOmm. Recommended fitting thread-internal diameter 1/4" 8 mm. Pressure 6.2 bar. Noise level 70 dB(A). Vibration level below 2.5 m s3. Standard cartridge 50x215 mm. Fitted with a counterarm to hold the workpiece in position without slipping. Speed control. Free speed 1800 rpm. Average air consumption 110 l min. Air inlet thread 1/4". Working pressure 6.2 bar. Milling cutter diameter 8 mm. Milling cutter diameter 8 mm V.781A1 (minimum order quantity 5). V.781F L mm 270 L1 mm 53 H mm 198 Nh kg 2100 L mm L1 mm H mm Nh kg V.801F 305 62 168 1300 r H Pneumatic riveter Light and well balanced machine in aluminum alloy. For 3.24 and 4.8 mm rivets. Traction strength 9.4 kN. Fast nose removal. Fast claw holder removal. Low activation force. 2-finger trigger. Orientable air exhaust. Tool travel 18 mm. Working pressure 6.2 bar. Y.135F d mm d1 mm L mm L1 mm H mm Nh kg 88 206 259 79 304 1310 Facom 705 Facom
