732 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.706

Каталог FACOM 2013 Инструмент Оборудование Стр. 706 0732 ENG Lab2u

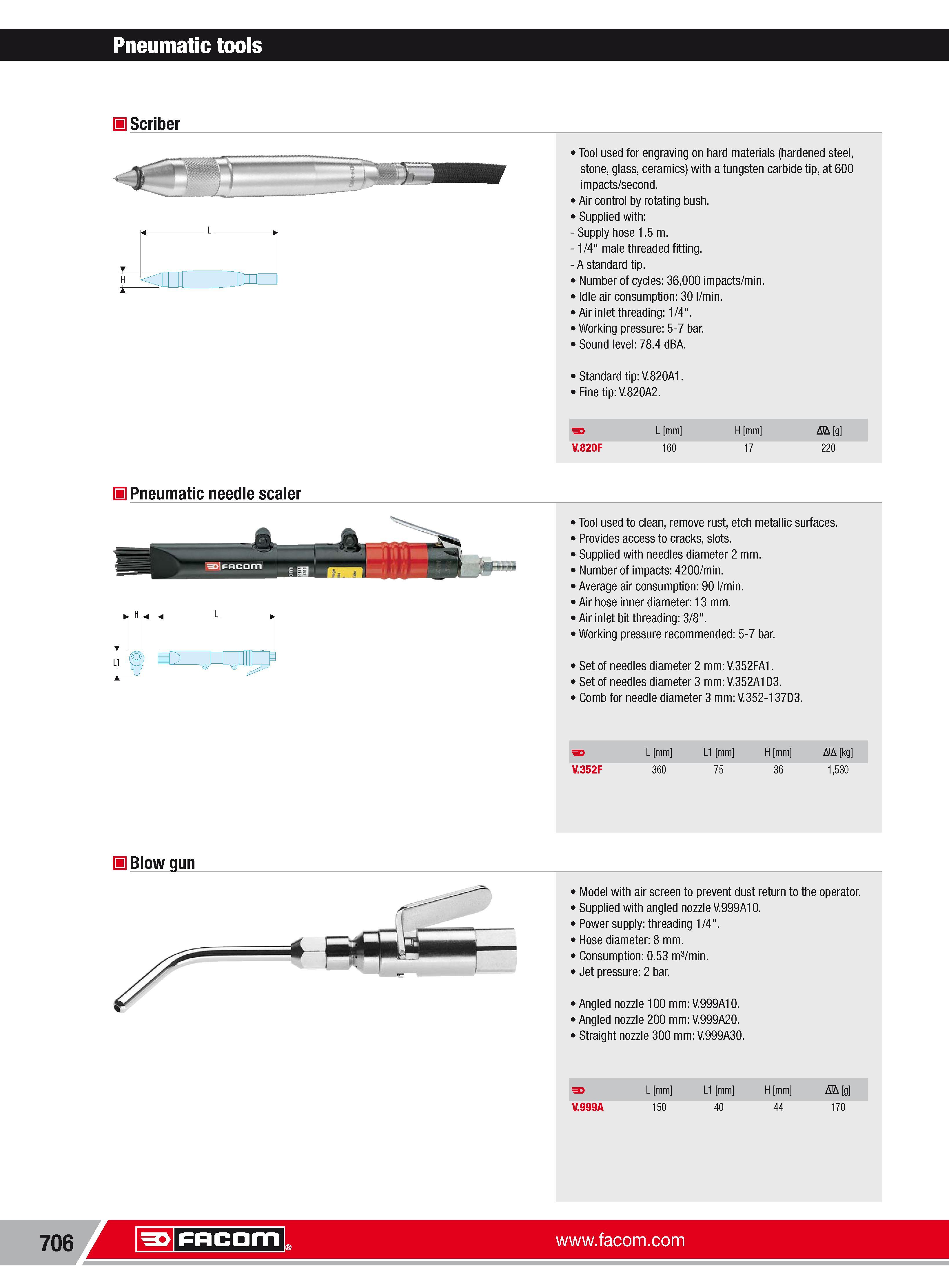

Pneumatic tools H Scriber Tool used for engraving on hard materials (hardened steel stone glass ceramics) with a tungsten carbide tip at 600 impacts second. Air control by rotating bush. Supplied with Supply hose1.5 m. -1/4" male threaded fitting. A standard tip. Number of cycles 36000 impacts min. Idle air consumption 30 l min. Air inlet threading 1/4". Working pressure 5-7 bar. Sound level 78.4 dBA. Standard tip V.820A1. Fine tip V.820A2. L mm H mm Nh g V.820F 160 17 220 H Pneumatic needle scaler Tool used to clean remove rust etch metallic surfaces. Provides access to cracks slots. Supplied with needles diameter 2 mm. Number of impacts 4200 min. Average air consumption 90 l min. Air hose inner diameter 13 mm. Air inlet bit threading 3 8". Working pressure recommended 5-7 bar. Set of needles diameter 2 mm V.352FA1. Set of needles diameter 3 mm V.352A1D3. Comb for needle diameter 3 mm V.352-137D3. L mm L1 mm H mm Nh kg V.352F 360 75 36 1530 Blow gun Model with air screen to prevent dust return to the operator. Supplied with angled nozzle V.999A10. Powersupply threading 1/4". Hose diameter 8 mm. Consumption 0.53 m3 min. Jet pressure 2 bar. Angled nozzle 100 mm V.999A10. Angled nozzle 200 mm V.999A20. Straight nozzle 300 mm V.999A30. L mm L1 mm H mm Nh g V.999A 150 40 44 170 706 Facom
