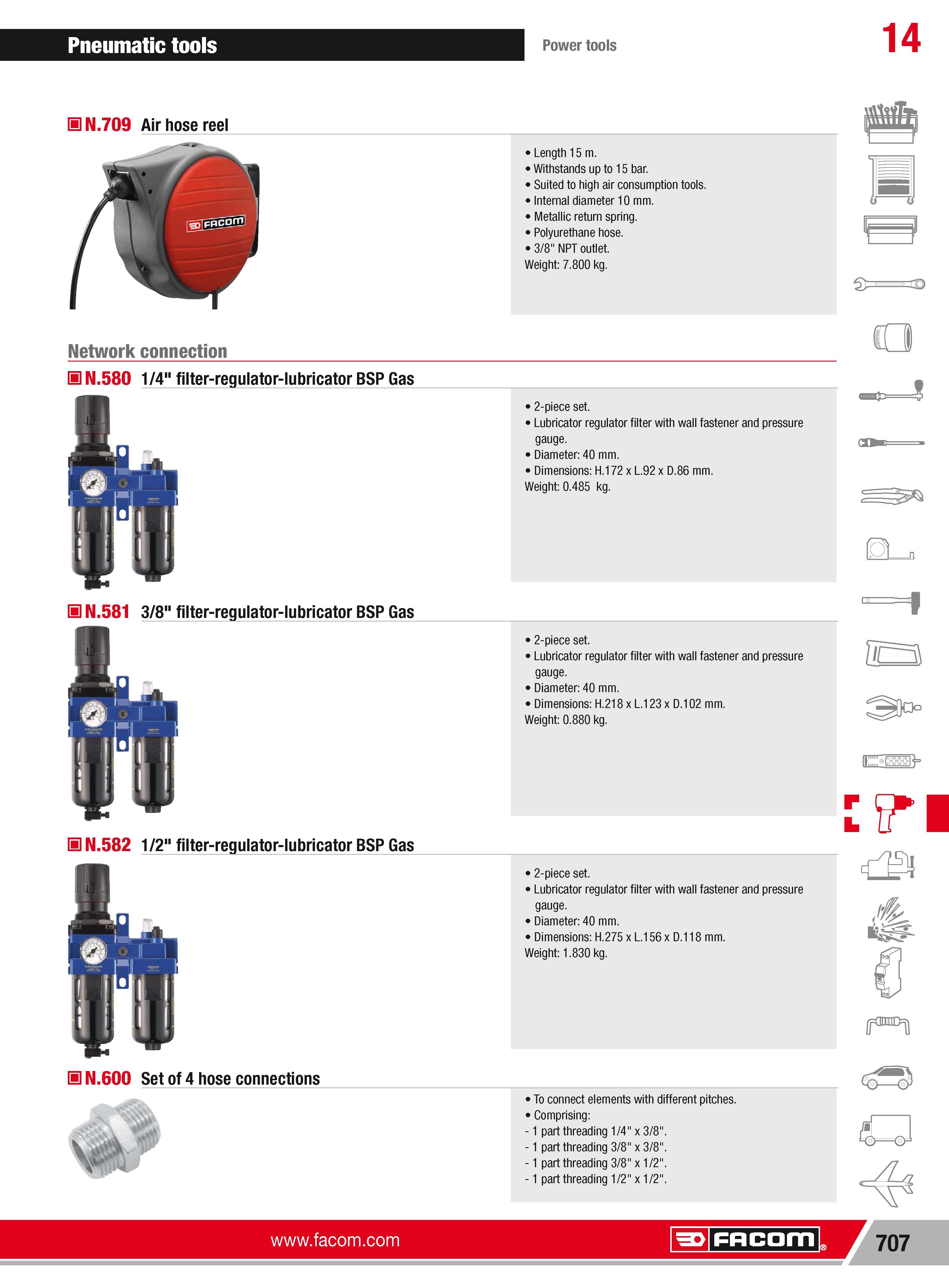

Pneumatic tools Power tools 14 HN.709 Air hose reel Network connection H N.580 1/4" filter-regulator-lubricator BSP Gas H N.581 3/8" filter-regulator-lubricator BSP Gas H N.582 1/2" filter-regulator-lubricator BSP Gas H N.600 Set of 4 hose connections Facom Length 15 m. Withstands upto15 bar. Suited to high air consumption tools. Internal diameterlO mm. Metallic return spring. Polyurethane hose. 3/8" NPT outlet. Weight 7.800 kg. 2-piece set. Lubricator regulator filter with wall fastener and pressure gauge. Diameter 40 mm. Dimensions H.172x L.92 x D.86 mm. Weight 0.485 kg. 2-piece set. Lubricator regulator filter with wall fastener and pressure gauge. Diameter 40 mm. Dimensions H.218 x L.123 xD.102 mm. Weight 0.880 kg. 2-piece set. Lubricator regulator filter with wall fastener and pressure gauge. Diameter 40 mm. Dimensions H.275 xL.156xD.118 mm. Weight 1.830 kg. Facom 4 cr- -Hr. M s To connect elements with different pitches. Comprising -1 part threading 1/4"x 3 8". -1 part threading 3/8" x 3 8". -1 part threading 3/8" x 1 2". -1 part threading 1/2" x 1 2". 707
