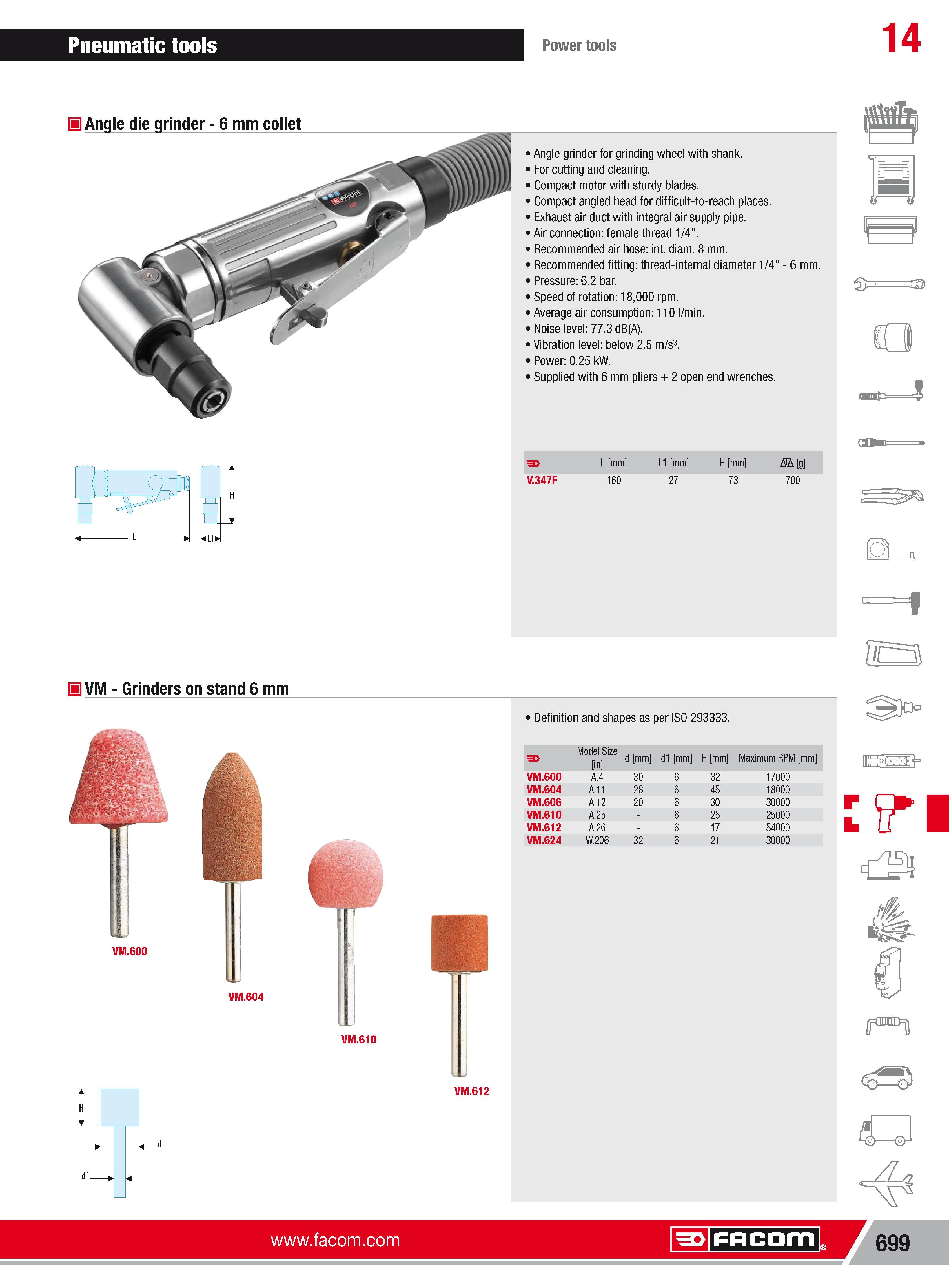

725 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.699

Каталог FACOM 2013 Инструмент Оборудование Стр. 699 0725 ENG Lab2u

Pneumatic tools Power tools 14 H Angle die grinder 6 mm collet Angle grinder for grinding wheel with shank. For cutting and cleaning. Compact motor with sturdy blades. Compact angled head for difficult-to-reach places. Exhaust air duct with integral air supply pipe. Air connection female thread 1/4". Recommended air hose int. diam. 8 mm. Recommended fitting thread-internal diameter 1/4" 6 mm. Pressure 6.2 bar. Speed of rotation 18000 rpm. Average air consumption 110 l min. Noise level 77.3 dB(A). Vibration level below 2.5 m s3. Power 0.25 kW. Supplied with 6 mm pliers + 2 open end wrenches. (j 0 1 H u J V.347F L mm 160 L1 mm 27 H mm 73 Nh g 700 r VM Grinders on stand 6 mm VM.600 H VM.604 VM.610 VM.612 Definition and shapes as per ISO 293333. 3 Model Size in d mm d1 mm H mm Maximum RPM mm VM.600 A.4 30 6 32 17000 VM.604 A.11 28 6 45 18000 VM.606 A.12 20 6 30 30000 VM.610 A.25 6 25 25000 VM.612 A.26 6 17 54000 VM.624 W.206 32 6 21 30000 Facom 699
