722 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.696

Каталог FACOM 2013 Инструмент Оборудование Стр. 696 0722 ENG Lab2u

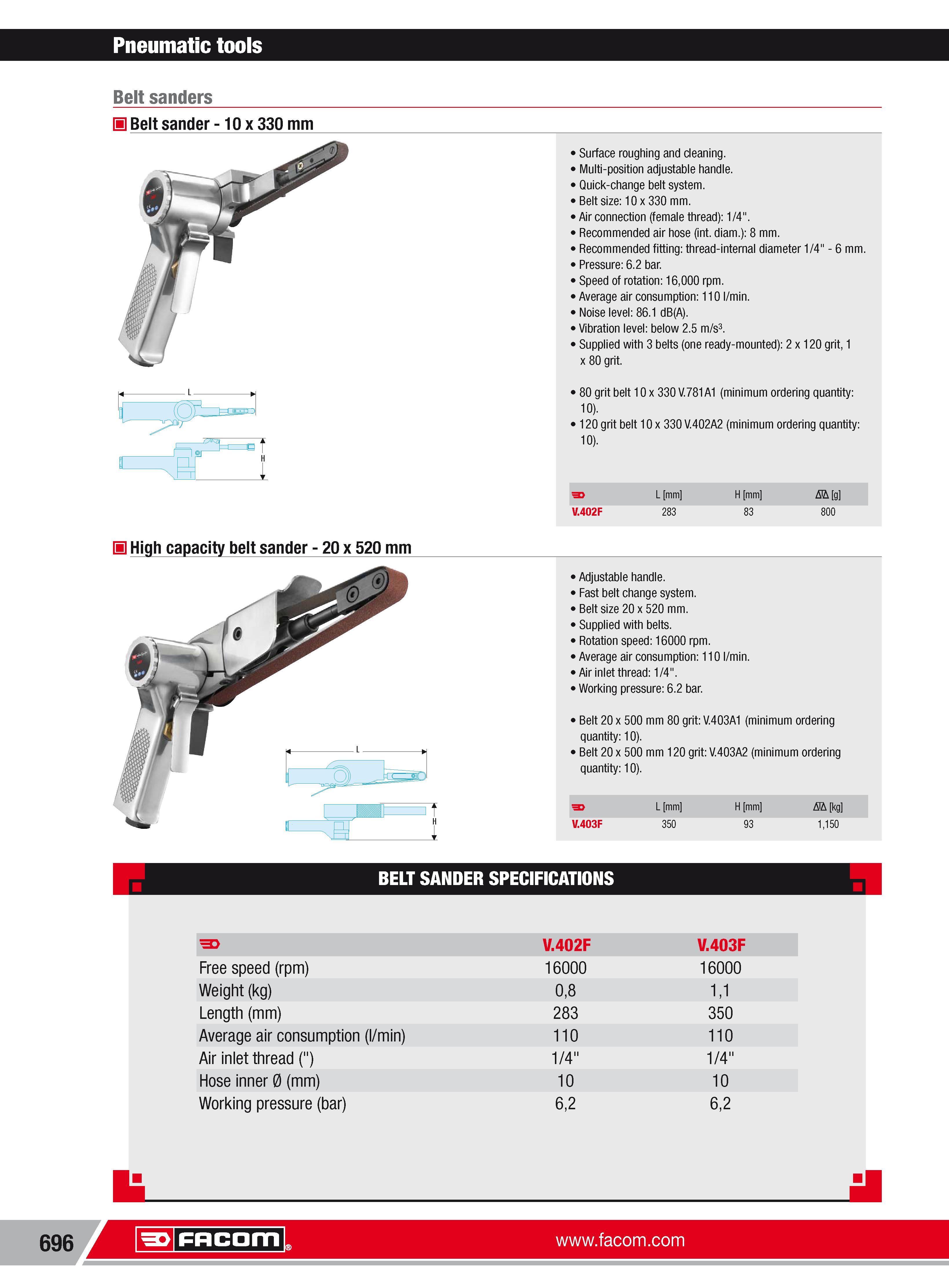

Pneumatic tools Belt sanders H Belt sander 10 x 330 mm 11 High capacity belt sander 20 x 520 mm Surface roughing and cleaning. Multi-position adjustable handle. Quick-change belt system. Belt size 10x330 mm. Airconnection (female thread) 1/4". Recommended air hose (int. diam.) 8 mm. Recommended fitting thread-internal diameter 1/4" 6 mm. Pressure 6.2 bar. Speed of rotation 16000 rpm. Average air consumption 110 l min. Noise level 86.1 dB(A). Vibration level below 2.5 m s3. Supplied with 3 belts (one ready-mounted) 2x120 grit 1 x 80 grit. 80 grit belt 10x330 V.781A1 (minimum ordering quantity 10). 120 grit belt 10x330 V.402A2 (minimum ordering quantity 10). L mm H mm AIA g V.402F 283 83 800 Adjustable handle. Fast belt change system. Belt size 20 x520 mm. Supplied with belts. Rotation speed 16000 rpm. Average air consumption 110 l min. Air inlet thread 1/4". Working pressure 6.2 bar. Belt 20 x 500 mm 80 grit V.403A1 (minimum ordering quantity 10). Belt 20 x 500 mm 120 grit V.403A2 (minimum ordering quantity 10). L mm H mm AIA kg V.403F 350 93 1150 d BELT SANDER SPECIFICATIONS b F V.402F V.403F Free speed (rpm) 16000 16000 Weight (kg) 08 11 Length (mm) 283 350 Average air consumption (l min) 110 110 Air inlet thread () 1 4 1 4 Hose inner 0 (mm) 10 10 Working pressure (bar) 62 62 696 Facom
