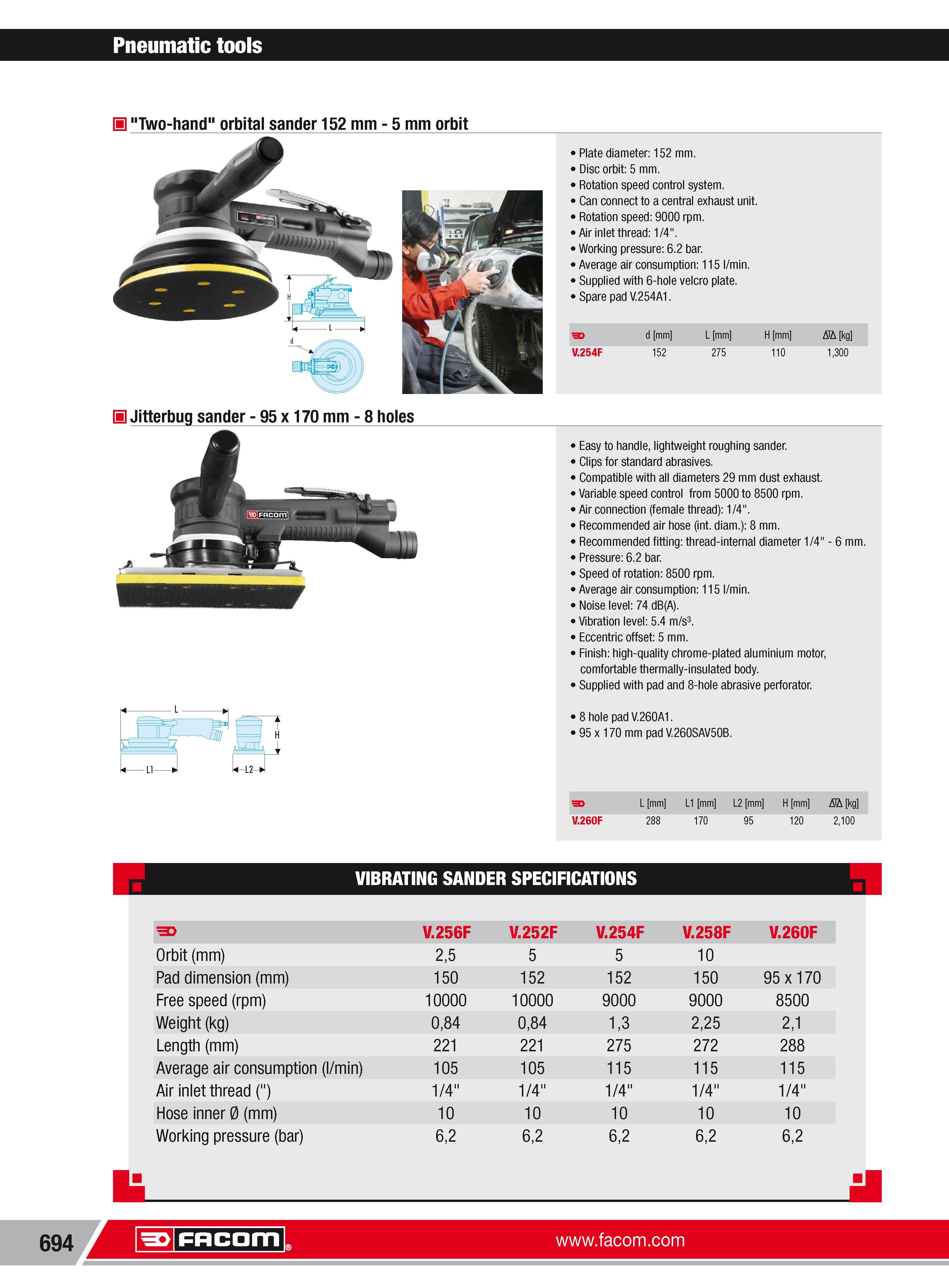

Pneumatic tools H "Two-hand" orbital sander 152 mm 5 mm orbit Plate diameter 152 mm. Disc orbit 5 mm. Rotation speed control system. Can connect to a central exhaust unit. Rotation speed 9000 rpm. Air inlet thread 1/4". Working pressure 6.2 bar. Average air consumption 115 l min. Supplied with 6-hole velcro plate. Spare pad V.254A1. d mm L mm H mm AA kg V.254F 152 275 110 1300 H Jitterbug sander 95 x 170 mm 8 holes Easy to handle lightweight roughing sander. Clips for standard abrasives. Compatible with all diameters 29 mm dust exhaust. Variable speed control from 5000 to 8500 rpm. Airconnection (female thread) 1/4". Recommended air hose (int. diam.) 8 mm. Recommended fitting thread-internal diameter 1/4" 6 mm. Pressure 6.2 bar. Speed of rotation 8500 rpm. Average air consumption 115 l min. Noise level 74 dB(A). Vibration level 5.4 m s3. Eccentric offset 5 mm. Finish high-quality chrome-plated aluminium motor comfortable thermally-insulated body. Supplied with pad and 8-hole abrasive perforator. t '3. L L2 T 8 hole pad V.260A1. 95x 170 mm pad V.260SAV50B. V.260F L mm L1 mm L2 mm H mm AIA kg 288 170 95 120 2100 d VIBRATING SANDER SPECIFICATIONS b F V.256F V.252F V.254F V.258F V.260F Orbit (mm) 25 5 5 10 Pad dimension (mm) 150 152 152 150 95 x 170 Free speed (rpm) 10000 10000 9000 9000 8500 Weight (kg) 084 084 13 225 21 Length (mm) 221 221 275 272 288 Average air consumption (l min) 105 105 115 115 115 Air inlet thread (") 1/4" 1/4" 1/4" 1/4" 1/4" Hose inner 0 (mm) 10 10 10 10 10 Working pressure (bar) 62 62 62 62 62 694 Facom
