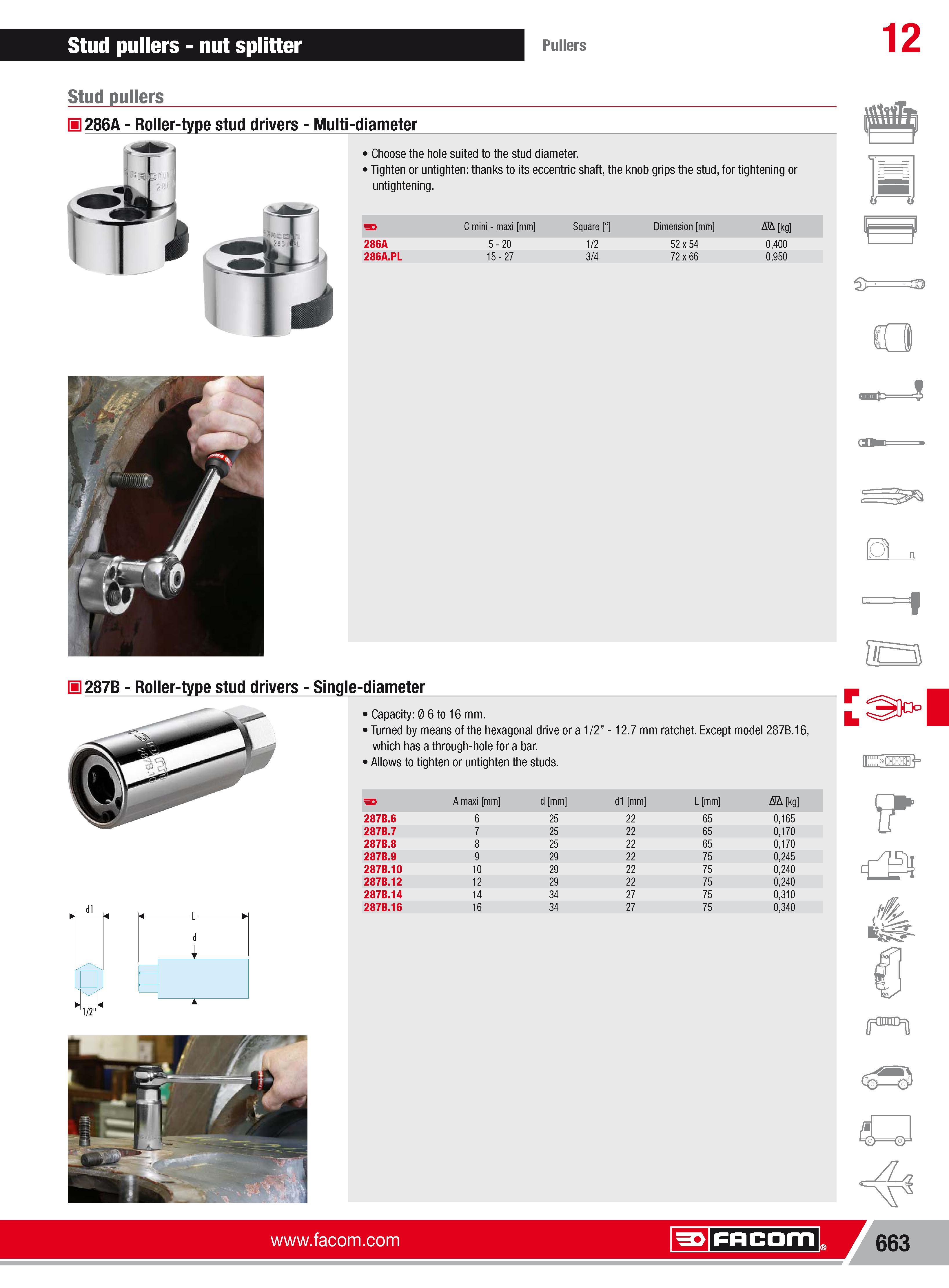

Stud pullers nut splitter Pullers 12 Stud pullers 286A Roller-type stud drivers Multi-diameter Choose the hole suited to the stud diameter. Tighten or untighten thanks to its eccentric shaft the knob grips the stud for tightening or untightening. C mini maxi mm Square Dimension mm Aft kg 286A 5-20 1 2 52x54 0400 286A.PL 15-27 3 4 72 x 66 0950 287B Roller-type stud drivers Single-diameter Capacity 0 6to16 mm. Turned by means of the hexagonal drive or a 1 2 which has a through-hole for a bar. Allows to tighten or untighten the studs. 12.7 mm ratchet. Except model 287B.16 L d 1 1/2" c A maxi mm d mm d1 mm L mm Aft kg 287B.6 6 25 22 65 0165 287B.7 7 25 22 65 0170 287B.8 8 25 22 65 0170 287B.9 9 29 22 75 0245 287B.10 10 29 22 75 0240 287B.12 12 29 22 75 0240 287B.14 14 34 27 75 0310 287B.16 16 34 27 75 0340 di Facom 663
