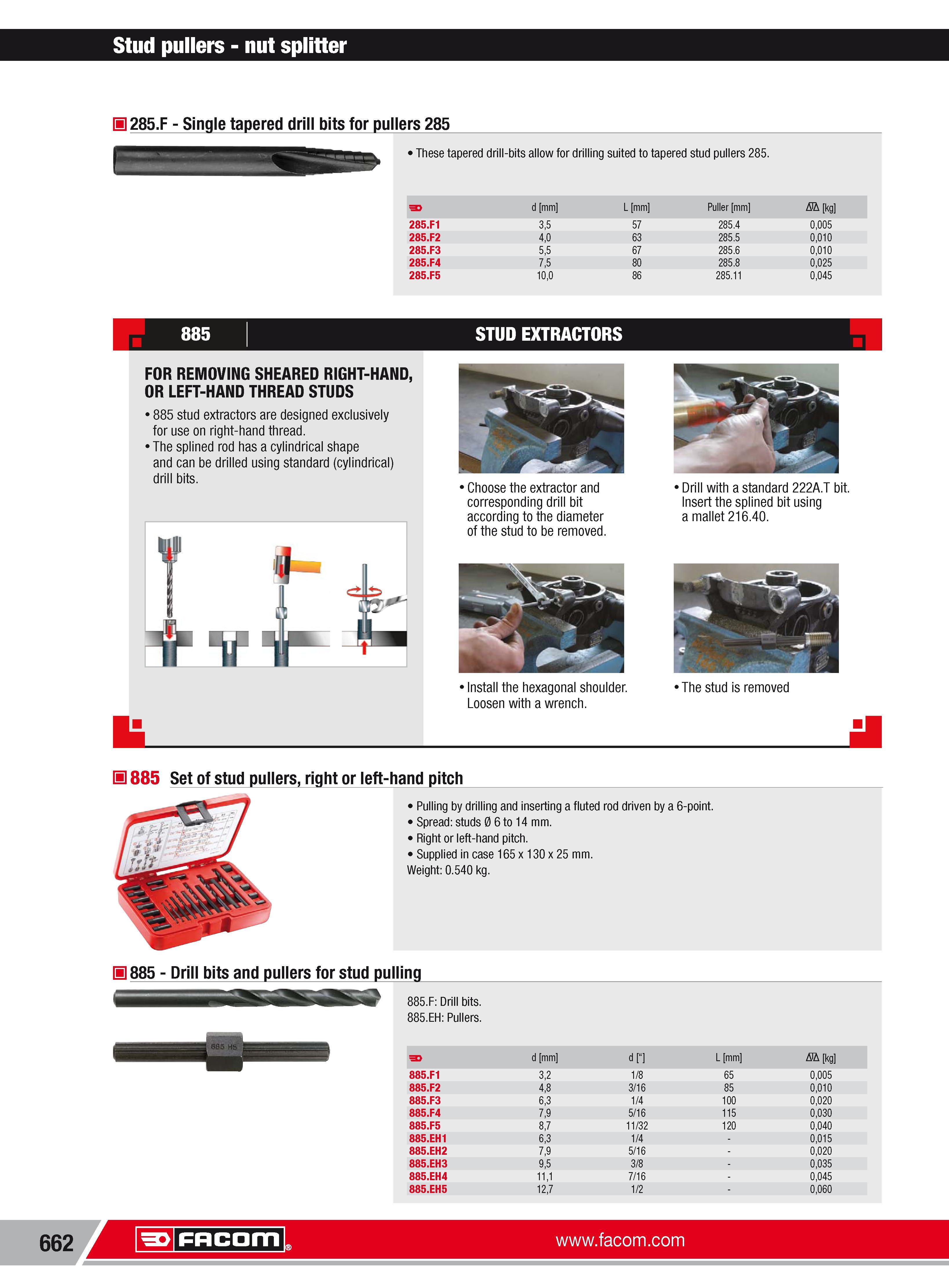

Stud pullers nut splitter 285.F Single tapered drill bits for pullers 285 These tapered drill-bits allow for drilling suited to tapered stud pullers 285. d mm L mm Puller mm Aft kg 285.F1 35 57 285.4 0005 285.F2 40 63 285.5 0010 285.F3 55 67 285.6 0010 285.F4 75 80 285.8 0025 285.F5 100 86 285.11 0045 885 STUD EXTRACTORS FOR REMOVING SHEARED RIGHT-HAND OR LEFT-HAND THREAD STUDS 885 stud extractors are designed exclusively for use on right-hand thread. The splined rod has a cylindrical shape and can be drilled using standard (cylindrical) drill bits. Choose the extractor and corresponding drill bit according to the diameter of the stud to be removed. V ; 1 Drill with a standard 222A.T bit. Insert the splined bit using a mallet 216.40. Install the hexagonal shoulder. Loosen with a wrench. The stud is removed H 885 Set of stud pullers right or left-hand pitch Pulling by drilling and inserting a fluted rod driven by a 6-point. Spread studs 0 6to14 mm. Right or left-hand pitch. Supplied in case 165x 130x25 mm. Weight 0.540 kg. 885 Drill bits and pullers for stud pulling 885.F Drill bits. 885.EH Pullers. Facom
