690 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.664

Каталог FACOM 2013 Инструмент Оборудование Стр. 664 0690 ENG Lab2u

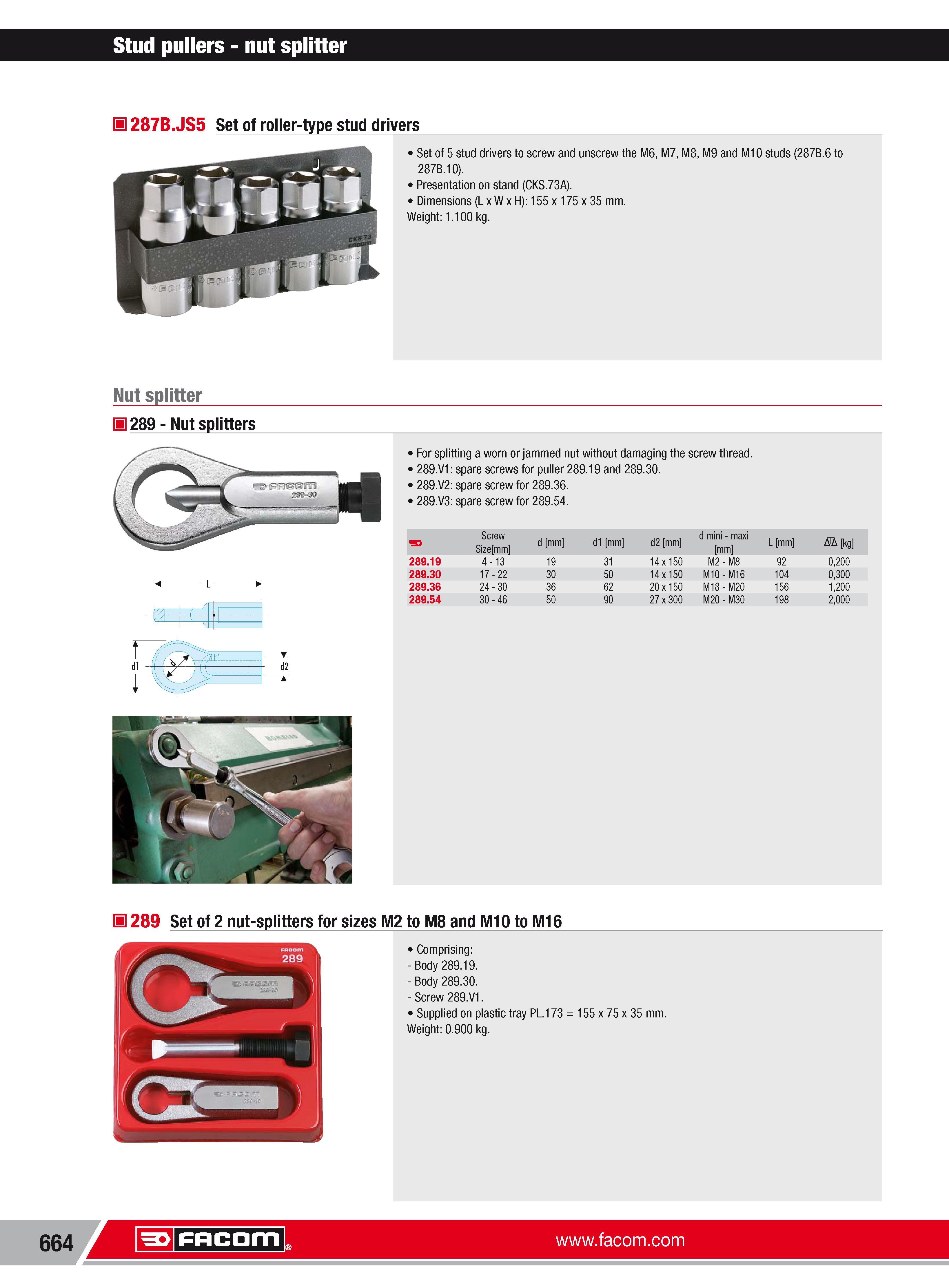

Stud pullers nut splitter H 287B.JS5 Set of roller-type stud drivers Set of 5 stud drivers to screw and unscrew the M6 M7 M8 M9 and M10 studs (287B.6 to 287B.10). Presentation on stand (CKS.73A). Dimensions (Lx WxH) 155x 175x35 mm. Weight 1.100 kg. Nut splitter H 289 Nut splitters For splitting a worn orjammed nut without damaging the screw thread. 289.V1 spare screws for puller 289.19and 289.30. 289.V2 spare screw for 289.36. 289.V3 spare screw for 289.54. Screw r i jh r i in r i d mini maxi d mml HI mml d2 mml mml AIA Tknl 289.19 4-13 19 31 14x150 M2-M8 92 0200 289.30 17-22 30 50 14x150 M10-M16 104 0300 289.36 24 30 36 62 20x150 M18-M20 156 1200 289.54 30 46 50 90 27 x 300 M20 M30 198 2000 H 289 Set of 2 nut-splitters for sizes M2 to M8 and M10 to M16 Comprising -Body 289.19. Body 289.30. Screw 289.V1. Supplied on plastic tray PL.173 155x75x 35 mm. Weight 0.900 kg. 664 Facom
