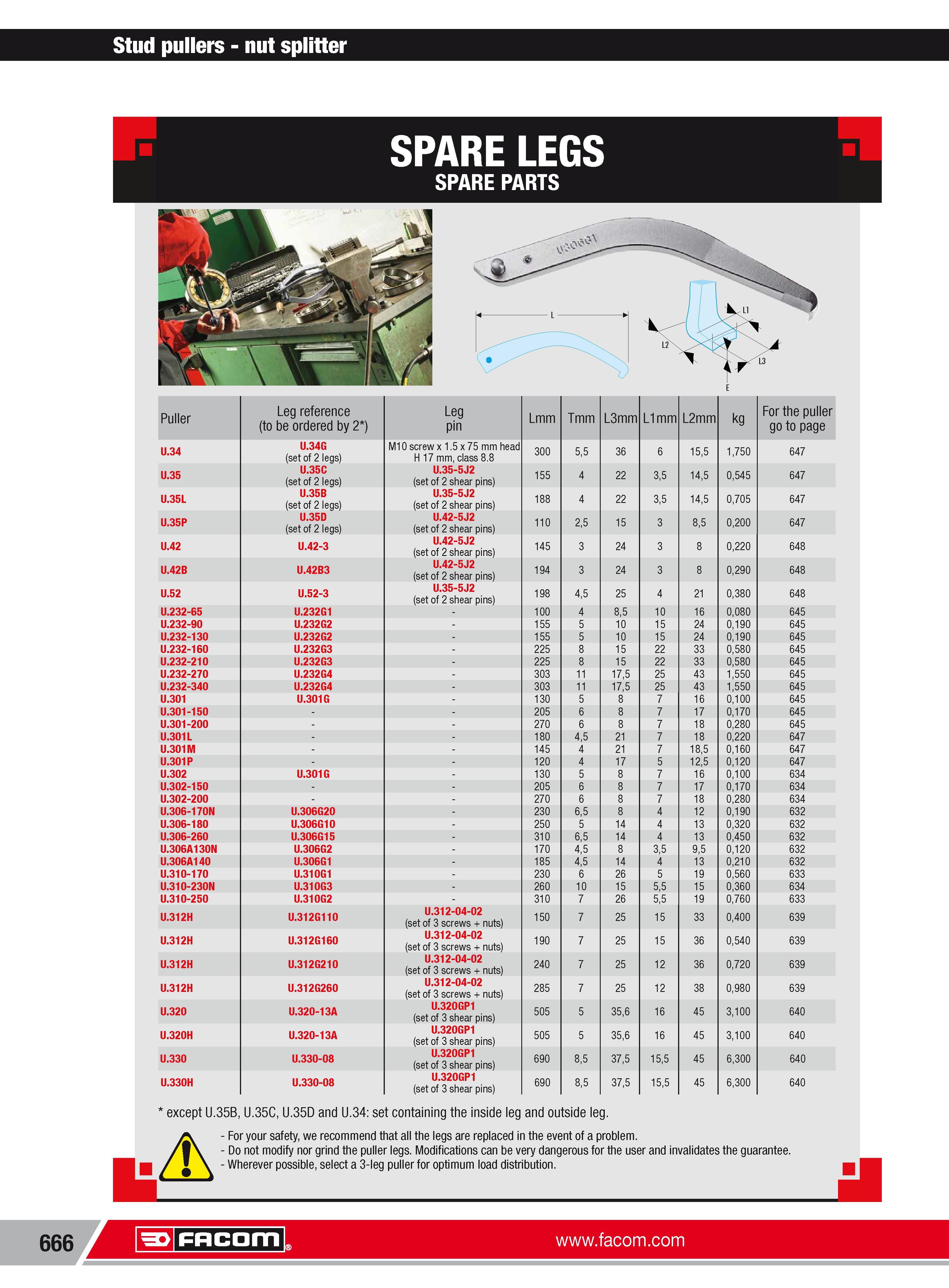

Stud pullers nut splitter SPARE LEGS SPARE PARTS Puller Leg reference (to be ordered by 2 ) Leg pin Lmm Tmm L3mm L1mm L2mm kg For the puller go to page U.34 U.34G (set of 2 legs) M10 screw x 1.5 x 75 mm head H 17 mm class 8.8 300 55 36 6 155 1750 647 U.35 U.35C (set of 2 legs) U.35-5J2 (set of 2 shear pins) 155 4 22 35 145 0545 647 U.35L U.35B (set of 2 legs) U.35-5J2 (set of 2 shear pins) 188 4 22 35 145 0705 647 U.35P U.35D (set of 2 legs) U.42-5J2 (set of 2 shear pins) 110 25 15 3 85 0200 647 U.42 U.42-3 U.42-5J2 (set of 2 shear pins) 145 3 24 3 8 0220 648 U.42B U.42B3 U.42-5J2 (set of 2 shear pins) 194 3 24 3 8 0290 648 U.52 U.52-3 U.35-5J2 (set of 2 shear pins) 198 45 25 4 21 0380 648 U.232-65 U.232G1 100 4 85 10 16 0080 645 U.232-90 U.232G2 155 5 10 15 24 0190 645 U.232-130 U.232G2 155 5 10 15 24 0190 645 U.232-160 U.232G3 225 8 15 22 33 0580 645 U.232-210 U.232G3 225 8 15 22 33 0580 645 U.232-270 U.232G4 303 11 175 25 43 1550 645 U.232-340 U.232G4 303 11 175 25 43 1550 645 U.301 U.301G 130 5 8 7 16 0100 645 U.301-150 205 6 8 7 17 0170 645 U.301-200 270 6 8 7 18 0280 645 U.301L 180 45 21 7 18 0220 647 U.301M 145 4 21 7 185 0160 647 U.301P 120 4 17 5 125 0120 647 U.302 U.301G 130 5 8 7 16 0100 634 U.302-150 205 6 8 7 17 0170 634 U.302-200 270 6 8 7 18 0280 634 U.306-170N U.306G20 230 65 8 4 12 0190 632 U.306-180 U.306G10 250 5 14 4 13 0320 632 U.306-260 U.306G15 310 65 14 4 13 0450 632 U.306A130N U.306G2 170 45 8 35 95 0120 632 U.306A140 U.306G1 185 45 14 4 13 0210 632 U.310-170 U.310G1 230 6 26 5 19 0560 633 U.310-230N U.310G3 260 10 15 55 15 0360 634 U.310-250 U.310G2 310 7 26 55 19 0760 633 U.312H U.312G110 U.312-04-02 (set of 3 screws + nuts) 150 7 25 15 33 0400 639 U.312H U.312G160 U.312-04-02 (set of 3 screws + nuts) 190 7 25 15 36 0540 639 U.312H U.312G210 U.312-04-02 (set of 3 screws + nuts) 240 7 25 12 36 0720 639 U.312H U.312G260 U.312-04-02 (set of 3 screws + nuts) 285 7 25 12 38 0980 639 U.320 U.320-13A U.320GP1 (set of 3 shear pins) 505 5 356 16 45 3100 640 U.320H U.320-13A U.320GP1 (set of 3 shear pins) 505 5 356 16 45 3100 640 U.330 U.330-08 U.320GP1 (set of 3 shear pins) 690 85 375 155 45 6300 640 U.330H U.330-08 U.320GP1 (set of 3 shear pins) 690 85 375 155 45 6300 640 except U.35B U.35C U.35D and U.34 set containing the inside leg and outside leg. For your safety we recommend that all the legs are replaced in the event of a problem. Do not modify nor grind the puller legs. Modifications can be very dangerous for the user and invalidates the guarantee. Wherever possible select a 3-leg puller for optimum load distribution. 666 Facom
